场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCQ12N06-TPMOSFET N-CH 60V 12A 8SOP Micro Commercial Co |
20 | - |
|
数据表 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12A (Tj) | 4.5V, 10V | 9mOhm @ 12A, 10V | Surface Mount | 2.5V @ 250µA | 31 nC @ 10 V | 60 V | ±20V | 1988 pF @ 30 V | - | - | 8-SOP | - | 3.1W | -55°C ~ 150°C (TJ) |
~~3-Top.jpg)
|

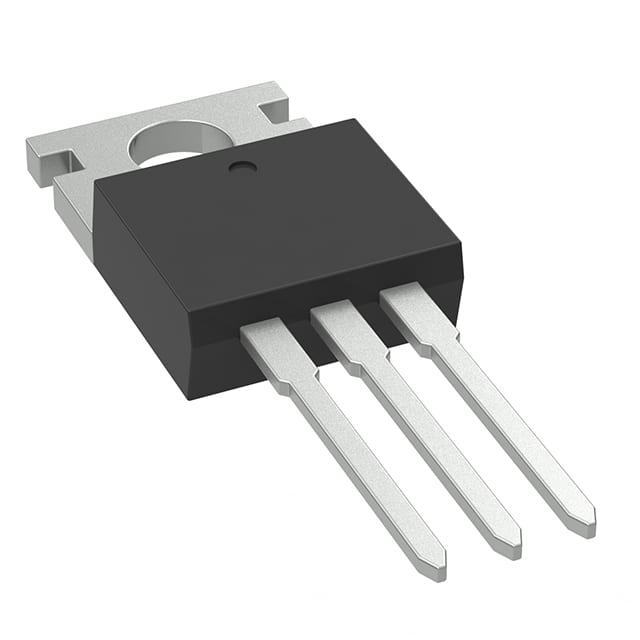

MSJP20N65-BPMOSFET N-CH TO220AB Micro Commercial Co |
5,272 | - |
|
数据表 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 20A (Tc) | 10V | 170mOhm @ 10A, 10V | Through Hole | 4.5V @ 250µA | 39 nC @ 10 V | 650 V | ±30V | 1724 pF @ 100 V | - | - | TO-220AB (H) | - | 151W (Tc) | -55°C ~ 150°C (TJ) |
|
SL02P06YHE3-TPP-CHANNEL MOSFET,SOT-23-3L Micro Commercial Co |
5,951 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 2.5A (Ta) | 4.5V, 10V | 120mOhm @ 2A, 10V | Surface Mount | 2.5V @ 250µA | 6.8 nC @ 10 V | 60 V | ±20V | 302 pF @ 25 V | AEC-Q101 | - | SOT-23-3L | Automotive | 1.3W (Tj) | -55°C ~ 150°C (TJ) |
|
|
MCAC30P03-TPMOSFET P-CH 30 30A DFN5060 Micro Commercial Co |
3,376 | - |
|
数据表 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 4.5V, 10V | 16mOhm @ 20A, 10V | Surface Mount | 2V @ 250µA | 28 nC @ 10 V | 30 V | ±20V | 1385 pF @ 15 V | - | - | DFN5060 | - | 41.7W (Tj) | -55°C ~ 150°C (TJ) |
|
|
MCGL2D1N03YL-TPN-CHANNEL MOSFET,PDFN3333-B Micro Commercial Co |
5,471 | - |
|
数据表 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100A (Tc) | 4.5V, 10V | 2.1mOhm @ 20A, 10V | Surface Mount | 2.5V @ 250µA | 45 nC @ 10 V | 30 V | ±20V | 2630 pF @ 15 V | - | - | PDFN3333 | - | 50W (Tj) | -55°C ~ 175°C (TJ) |
|
|
MCU7D2N04YHQ-TPN-CHANNEL MOSFET,DPAK Micro Commercial Co |
7,209 | - |
|
数据表 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60A (Tc) | 10V | 7.2mOhm @ 20A, 10V | Surface Mount | 4V @ 250µA | 13 nC @ 10 V | 40 V | ±20V | 1000 pF @ 25 V | AEC-Q101 | - | TO-252 (DPAK) | Automotive | 73W (Tj) | -55°C ~ 175°C (TJ) |
|
|
MCAC40P03-TPMOSFET P-CH 30 40A DFN5060 Micro Commercial Co |
3,754 | - |
|
数据表 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40A (Tc) | 4.5V, 10V | 9mOhm @ 20A, 10V | Surface Mount | 2.5V @ 250µA | 54 nC @ 10 V | 30 V | ±20V | 2718 pF @ 15 V | - | - | DFN5060 | - | 54W (Tj) | -55°C ~ 150°C (TJ) |
|
|
MCPF065N15YH-BPN-CHANNEL MOSFET,TO-220F Micro Commercial Co |
9,898 | - |
|
数据表 |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 15A (Tc) | 6V, 10V | 65mOhm @ 15A, 10V | Through Hole | 4V @ 250µA | 18 nC @ 10 V | 150 V | ±20V | 785 pF @ 75 V | - | - | TO-220F | - | 41W (Tj) | -55°C ~ 150°C (TJ) |
|
|
MCU6D0N04YHQ-TPN-CHANNEL MOSFET,DPAK Micro Commercial Co |
6,064 | - |
|
数据表 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 72A (Tc) | 10V | 6mOhm @ 20A, 10V | Surface Mount | 4V @ 250µA | 19 nC @ 10 V | 40 V | ±20V | 1085 pF @ 25 V | AEC-Q101 | - | TO-252 (DPAK) | Automotive | 55W (Tj) | -55°C ~ 175°C (TJ) |
|
|
MCU055P10-TPP-CHANNEL MOSFET,DPAK Micro Commercial Co |
5,545 | - |
|
数据表 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 28A (Tc) | 4.5V, 10V | 55mOhm @ 20A, 10V | Surface Mount | 2.5V @ 250µA | 71 nC @ 10 V | 100 V | ±20V | 3480 pF @ 50 V | - | - | TO-252 (DPAK) | - | 89W (Tj) | -55°C ~ 150°C (TJ) |
