直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE2406PHS3FAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.0 CFM (0.420m³/min) | - | Sleeve | - | Tubeaxial | - | 15.00mm | - | 1.2 W | CE, CUR, TUV, UL | - | - | 2 Wire Leads | - |
|

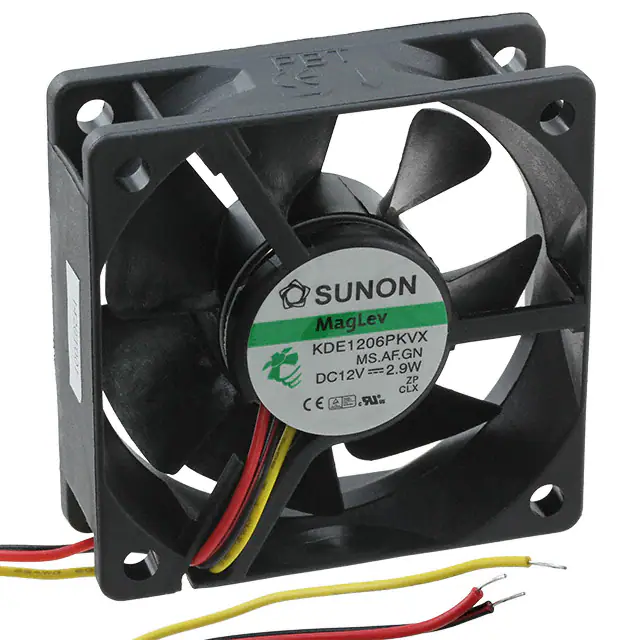

KDE1206PKVX MS.AF.GNFAN 60X60X20 12VDC VAPO TACH |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EF45101S2-1000U-C9912VDC FAN 45X10MM TACH |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 45mm L x 45mm H | 9.4 CFM (0.263m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 26.1dB(A) | 0.72 W | CCC, CE, cURus, TUV, UKCA | 5000 RPM | - | 3 Wire Leads | - |
|
|
EF45101S1-1000U-C9912VDC FAN 45X10MM TACH |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 45mm L x 45mm H | 10.8 CFM (0.302m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 29.8dB(A) | 1.02 W | CCC, CE, cURus, TUV, UKCA | 5700 RPM | - | 3 Wire Leads | - |
|
|
KD1204PKB2 HFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | - | Ball | - | Tubeaxial | - | 20.00mm | - | 800 mW | CE, CUR, TUV, UL | - | - | 2 Wire Leads | - |
|
KD1206PHB1 HFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.086 lb (39.01 g) | Tubeaxial | - | 15.00mm | 37.5dB(A) | 1.8 W | CE, CUR, TUV, UL | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KD1206PHB2 HFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.086 lb (39.01 g) | Tubeaxial | - | 15.00mm | 31.5dB(A) | 1.1 W | CE, CUR, TUV, UL | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KD1204PKB3 HFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 6.5 CFM (0.182m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | - | 20.00mm | 19.0dB(A) | 600 mW | CE, CUR, TUV, UL | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
KDE0545PFV2.11.MS.A.GNFAN AXIAL 45X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® KDE | Bulk | Obsolete | 5VDC | Square - 45mm L x 45mm H | 9.2 CFM (0.258m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | 0.042 lb (19.05 g) | Tubeaxial | - | 10.00mm | 27.0dB(A) | 800 mW | CE, CUR, TUV, UL | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EB45100S2-000U-999Thermal Products |
0 | - |
|
数据表 |
EB | Bulk | Obsolete | 5VDC | Square - 45mm L x 45mm H | 9.2 CFM (0.258m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | - | Tubeaxial | - | 10.00mm | 27.0dB(A) | 1.2 W | - | 5000 RPM | - | 2 Wire Leads | - |
|
|
OD4006-05LSSFAN AXIAL 40X6MM 5VDC WIRE |
0 | - |
|
数据表 |
OD4006 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | - | - | Sealed Sleeve | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD4006-12LSSFAN AXIAL 40X6MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4006 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Sealed Sleeve | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD4006-12MSSFAN AXIAL 40X6MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4006 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Sealed Sleeve | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
OD4010-05LSSFAN AXIAL 40X10.5MM 5VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 5.0 CFM (0.140m³/min) | 0.060 in H2O (14.9 Pa) | Sealed Sleeve | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 14.0dB | - | cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD4010-05MSSFAN AXIAL 40X10.5MM 5VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.080 in H2O (19.9 Pa) | Sealed Sleeve | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 20.0dB | - | cURus | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD4010-12HHSSFAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Sealed Sleeve | 0.441 lb (200.00 g) | Tubeaxial | - | 10.50mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD4010-12LLSSFAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Sealed Sleeve | 0.441 lb (200.00 g) | Tubeaxial | - | 10.50mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
OD4010-12LSSFAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.0 CFM (0.140m³/min) | 0.060 in H2O (14.9 Pa) | Sealed Sleeve | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 14.0dB | - | cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD4010-12MSSFAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.080 in H2O (19.9 Pa) | Sealed Sleeve | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 20.0dB | - | cURus | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD4010-24LSSFAN AXIAL 40X10.5MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 5.0 CFM (0.140m³/min) | 0.060 in H2O (14.9 Pa) | Sealed Sleeve | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 14.0dB | - | cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
