直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-05010CAMW11FAN AXIAL 50X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FAD1-05010 | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 9.0 CFM (0.252m³/min) | 0.080 in H2O (19.9 Pa) | 1 Ball/1 Sleeve | 0.04 lb (18.14 g) | Tubeaxial | - | 10.50mm | 24.0dB(A) | 1.2 W | CE, cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-05010CAHW11FAN AXIAL 50X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FAD1-05010 | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.3 CFM (0.289m³/min) | 0.100 in H2O (24.9 Pa) | 1 Ball/1 Sleeve | 0.04 lb (18.14 g) | Tubeaxial | - | 10.50mm | 27.5dB(A) | 1.44 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-05010DALW11FAN AXIAL 50X10.5MM 24VDC WIRE |
0 | - |
|
数据表 |
FAD1-05010 | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 8.0 CFM (0.224m³/min) | 0.050 in H2O (12.4 Pa) | 1 Ball/1 Sleeve | 0.04 lb (18.14 g) | Tubeaxial | - | 10.50mm | 20.0dB(A) | 1.2 W | CE, cURus, TUV | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-05010DAMW11FAN AXIAL 50X10.5MM 24VDC WIRE |
0 | - |
|
数据表 |
FAD1-05010 | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 9.0 CFM (0.252m³/min) | 0.080 in H2O (19.9 Pa) | 1 Ball/1 Sleeve | 0.04 lb (18.14 g) | Tubeaxial | - | 10.50mm | 24.0dB(A) | 1.44 W | CE, cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-05010DAHW11FAN AXIAL 50X10.5MM 24VDC WIRE |
0 | - |
|
数据表 |
FAD1-05010 | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 10.3 CFM (0.289m³/min) | 0.100 in H2O (24.9 Pa) | 1 Ball/1 Sleeve | 0.04 lb (18.14 g) | Tubeaxial | - | 10.50mm | 27.5dB(A) | 1.92 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
KDE2408PTS1-6FAN AXIAL 80X25.5MM 24VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 0.265 lb (120.2 g) | Tubeaxial | - | 25.50mm | 34.0dB(A) | 3.6 W | cUR, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KDE2408PTS2-6FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 34.4 CFM (0.963m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | - | Tubeaxial | - | 25.00mm | 30.0dB(A) | 1.9 W | CE, CUR, TUV, UL | 2650 RPM | - | 2 Wire Leads | - |
|
|
KDE2408PTS3-6FAN AXIAL 80X25.5MM 24VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 29.4 CFM (0.823m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | 0.265 lb (120.2 g) | Tubeaxial | - | 25.50mm | 24.5dB(A) | 2.4 W | cUR, UL | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06020CSKW11FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
FAD1-06020 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.283 in H2O (70.5 Pa) | Sleeve | 0.108 lb (48.99 g) | Tubeaxial | - | 20.00mm | 39.0dB(A) | 2.4 W | CE, cURus, TUV | 6100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
KDE1204PKV2 MS.A.GNFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | 0.068 lb (30.84 g) | Tubeaxial | - | 20.00mm | 21.0dB(A) | 600 mW | CE, CUR, TUV, UL | 6200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

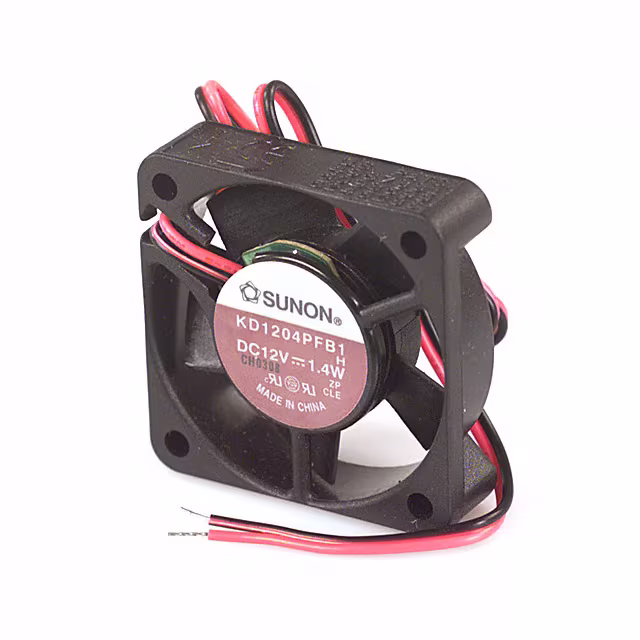

KD1204PFB1 ( H )FAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.3 CFM (0.232m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.034 lb (15.42 g) | Tubeaxial | - | 10.50mm | 34.4dB(A) | 1.4 W | CE, CUR, TUV, UL | 8400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

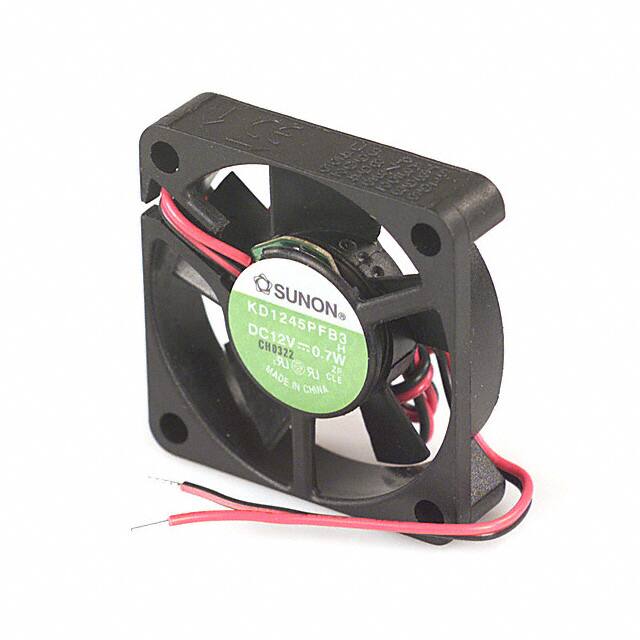

KD1245PFB3 HFAN AXIAL 45X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 45mm L x 45mm H | 6.1 CFM (0.171m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.044 lb (19.96 g) | Tubeaxial | - | 10.50mm | 23.0dB(A) | 700 mW | CE, CUR, TUV, UL | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

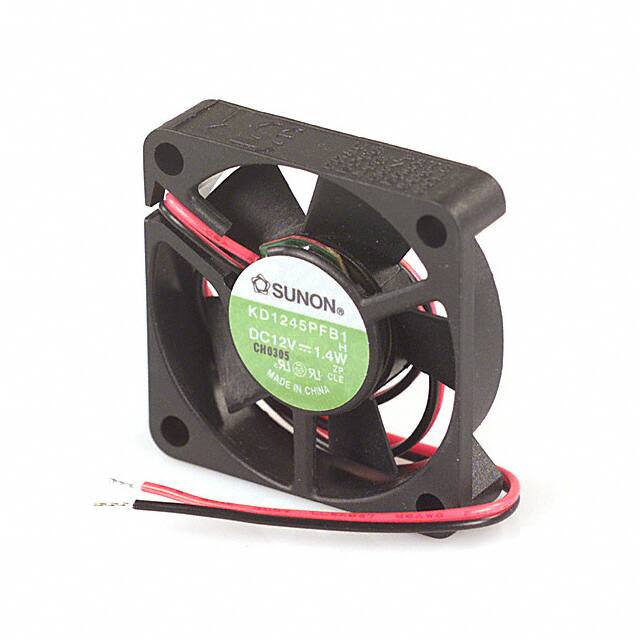

KD1245PFB1 HFAN AXIAL 45X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 45mm L x 45mm H | 9.5 CFM (0.266m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.044 lb (19.96 g) | Tubeaxial | - | 10.50mm | 33.8dB(A) | 1.4 W | CE, CUR, TUV, UL | 7100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

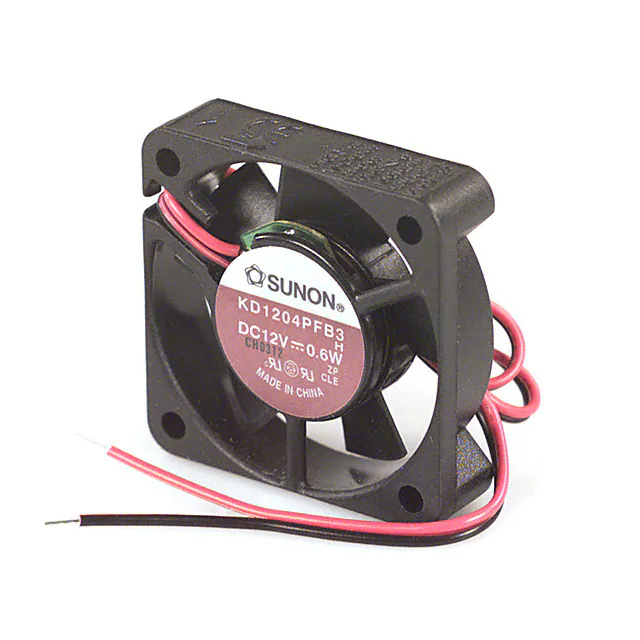

KD1204PFB3 HFAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.034 lb (15.42 g) | Tubeaxial | - | 10.50mm | 24.0dB(A) | 600 mW | CE, CUR, TUV, UL | 5200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

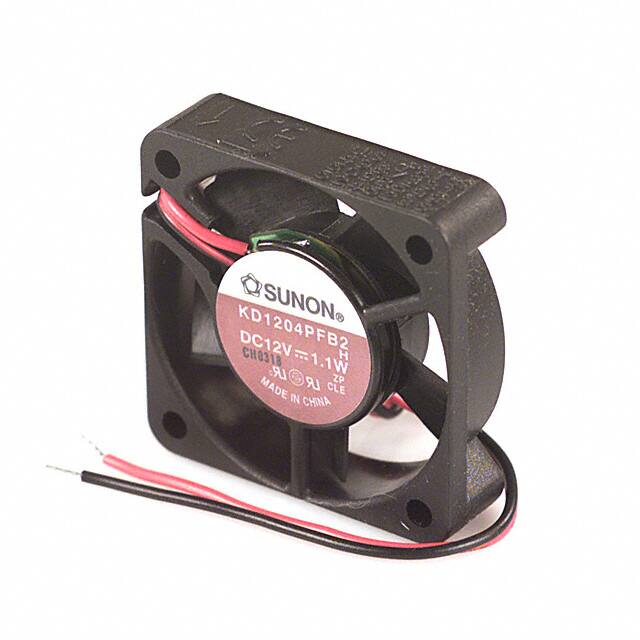

KD1204PFB2 HFAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 6.5 CFM (0.182m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.034 lb (15.42 g) | Tubeaxial | - | 10.50mm | 27.0dB(A) | 1.1 W | CE, CUR, TUV, UL | 6600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EB45101S2-000U-999FAN |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EE45101S1-000U-999FAN |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

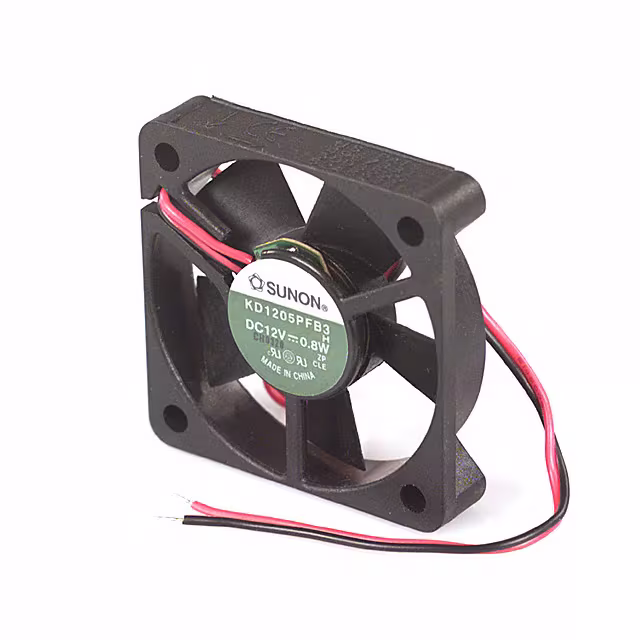

KD1205PFB3 HFAN AXIAL 50X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 8.0 CFM (0.224m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | - | 10.50mm | 24.3dB(A) | 800 mW | CE, CUR, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

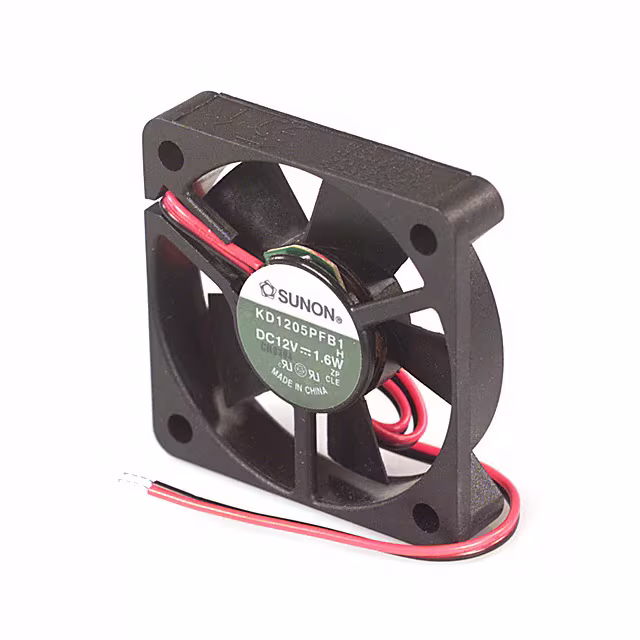

KD1205PFB1 HFAN AXIAL 50X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 11.4 CFM (0.319m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | - | 10.50mm | 34.7dB(A) | 1.6 W | CE, CUR, TUV, UL | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

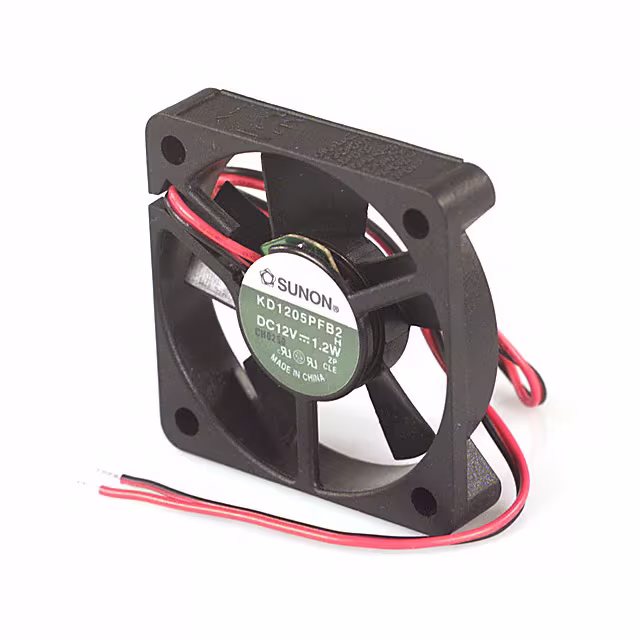

KD1205PFB2 HFAN AXIAL 50X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 9.5 CFM (0.266m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | - | 10.50mm | 28.9dB(A) | 1.2 W | CE, CUR, TUV, UL | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
