直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-6025V-152-312FAN AXIAL 60X25MM 12VDC WIRE |
809 | - |
|
数据表 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | 0.099 lb (44.91 g) | Tubeaxial | Auto Restart | 25.00mm | 31.2dB(A) | 1.8 W | CE, cURus, TUV | 5200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9S0812M4D011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 22.0dB(A) | 960 mW | CSA, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
HAC0251S4-1000U-999FAN 120X25MM 12VDC |
147 | - |
|
数据表 |
HAC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 55.1 CFM (1.54m³/min) | 0.070 in H2O (17.4 Pa) | Sleeve | - | Tubeaxial | - | 25.00mm | 28.8dB(A) | 1.06 W | CCC, CE, cURus, TUV | 1600 RPM | - | 2 Wire Leads | - |
|
|
9S0812F4D01FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 24.0dB(A) | 1.32 W | CSA, TUV, UL | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-3010B-1130-373FAN AXIAL 30X10.5MM 12VDC WIRE |
160 | - |
|
数据表 |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 4.1 CFM (0.115m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.50mm | 37.3dB(A) | 2.04 W | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MF40202VX-1000U-F99FAN AXIAL 40X20MM 24VDC WIRE |
368 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | 0.064 lb (29.03 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 27.5dB(A) | 940 mW | cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9S0812L4D01FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 16.0dB(A) | 600 mW | CSA, TUV, UL | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9S0612S401FAN AXIAL 60X25MM 12VDC WIRE |
4,152 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 26.1 CFM (0.731m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 2.4 W | CSA, TUV, UL | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9S0812M4D01FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 22.0dB(A) | 960 mW | CSA, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0812HD-AFAN AXIAL 80X20MM 12VDC WIRE |
1,964 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 49.3 CFM (1.38m³/min) | 0.249 in H2O (62.0 Pa) | Ball | 0.161 lb (73.03 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 40.0dB(A) | 2.64 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
04010SA-05L-AAD-0FAN AXIAL 40X10MM BALL 5VDC WIRE |
407 | - |
|
数据表 |
04010SA | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.00mm | 21.5dB | 400 mW | - | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

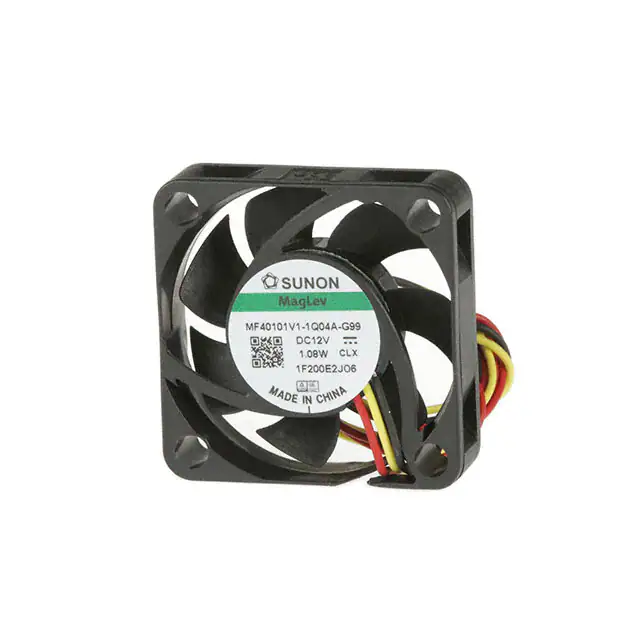

4507HQ/MF40101V1-1Q04A-G99FAN AXIAL 40X10MM VAPO 12VDC |
557 | - |
|
数据表 |
MagLev® MF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.2 CFM (0.230m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.035 lb (15.88 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 940 mW | cURus, TUV | 7700 RPM | -22 ~ 194°F (-30 ~ 90°C) | - | - |
|
DB0550505H1A-2T0FAN BLOWER 49.5X5.25MM 5VDC |
605 | - |
|
数据表 |
Slim-Line | Bulk | Active | 5VDC | Rectangular/Rounded - 55mm L x 50mm H | 1.3 CFM (0.036m³/min) | 0.149 in H2O (37.1 Pa) | Ball | 0.038 lb (17.24 g) | Blower | - | 5.25mm | 21.2dB(A) | 700 mW | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant |
|
|
9S0824L4D01FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 16.0dB(A) | 960 mW | CSA, TUV, UL | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9S0824L4D011FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 16.0dB(A) | 960 mW | CSA, TUV, UL | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-A225C-015-287-20FAN AXIAL 120X25.4MM 5VDC WIRE |
236 | - |
|
数据表 |
CFM-120C | Box | Active | 5VDC | Square - 120mm L x 120mm H | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.40mm | 24.8dB(A) | 1.2 W | CE, cURus, TUV | 1500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9S0824M4D01FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 22.0dB(A) | 1.44 W | CSA, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-A225C-115-287-20FAN AXIAL 120X25.4MM 12VDC WIRE |
149 | - |
|
数据表 |
CFM-120C | Box | Active | 12VDC | Square - 120mm L x 120mm H | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.40mm | 24.8dB(A) | 2.76 W | CE, cURus, TUV | 1500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9S0824M4D011FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 22.0dB(A) | 1.44 W | CSA, TUV, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FFB0812HHEFAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 45.2 CFM (1.27m³/min) | 0.281 in H2O (70.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 39.0dB(A) | 2.4 W | CE, CSA, UL, VDE | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
