直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

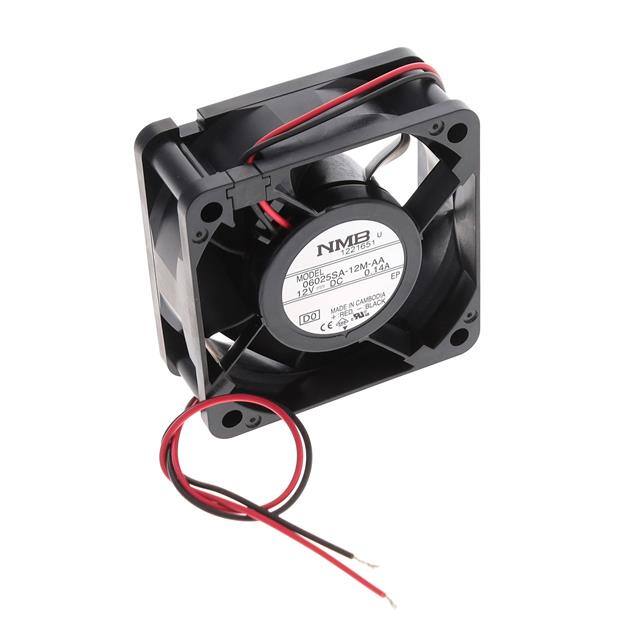

06025SA-12M-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
353 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 27.5dB | 1.2 W | - | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MR4020H24B1+6-RSRFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 13.6 CFM (0.381m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.053 lb (24.04 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 35.1dB(A) | - | CE, cUL, TUV, UL | 9500 RPM | - | 4 Wire Leads | - |
|
06025SA-12M-EA-D0FAN AXIAL 60X25MM 12VDC WIRE |
291 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 27.5dB | 1.2 W | - | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MR4020L12B1+6-RSRFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.053 lb (24.04 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 26.5dB(A) | - | CE, cUL, TUV, UL | 6500 RPM | - | 4 Wire Leads | - |
|
|
06025SA-12P-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
291 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 33.0dB | 2.04 W | - | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MR4020M12B1+6-RSRFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.053 lb (24.04 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 29.8dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 4 Wire Leads | - |
|
OD9225-24HSSFAN AXIAL 92.5X25MM 24VDC WIRE |
129 | - |
|
数据表 |
OD9225 | Box | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 52.0 CFM (1.46m³/min) | 0.130 in H2O (32.4 Pa) | Sealed Sleeve | - | Tubeaxial | - | 25.00mm | 35.0dB | 3.4 W | cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MR4020M24B1+6-RSRFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.053 lb (24.04 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 29.8dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 4 Wire Leads | - |
|
|
MR4020X12B1+6-RSRFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 17.3 CFM (0.484m³/min) | 0.540 in H2O (134.5 Pa) | Ball | 0.053 lb (24.04 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 41.0dB(A) | - | CE, cUL, TUV, UL | 12000 RPM | - | 4 Wire Leads | - |
|
|
109R0624G4D01FAN AXIAL 60X25MM 24VDC WIRE |
718 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 39.0dB(A) | 3.12 W | CSA, TUV, UL | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
06025SA-12K-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
572 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 14.5 CFM (0.406m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 17.0dB | 700 mW | - | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EF92251BX-1000U-G9912VDC FAN 92X25MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 36.9dB(A) | 1.62 W | CCC, CE, cURus, TUV, UKCA | 3400 RPM | - | 3 Wire Leads | - |
|
CFM-4010B-065-251-22FAN AXIAL 40X10.5MM 5VDC WIRE |
189 | - |
|
数据表 |
CFM-40B | Box | Active | 5VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 10.50mm | 25.1dB(A) | 850 mW | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
MF50201V1-1B00U-A99FAN BLOWER |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF50201V3-1B00U-A99Thermal Products |
0 | - |
|
数据表 |
MF | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 4.8 CFM (0.134m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | - | Blower | Auto Restart | 20.00mm | 27.5dB(A) | 900 mW | CE, CUR, TUV, UL | 4350 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF50201V2-1B00U-A99Thermal Products |
0 | - |
|
数据表 |
MF | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 5.1 CFM (0.143m³/min) | 0.460 in H2O (114.6 Pa) | Vapo-Bearing™ | - | Blower | Auto Restart | 20.00mm | 30.0dB(A) | 1.2 W | CE, CUR, TUV, UL | 4650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-4020BG-1100-389-20FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.8 CFM (0.330m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 38.9dB(A) | 2.4 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9S0812F4D011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 24.0dB(A) | 1.32 W | CSA, TUV, UL | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AUB0524HBFAN AXIAL 50X15MM 24VDC WIRE |
1,048 | - |
|
数据表 |
AUB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Superflo | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 5600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
9S0812L4D011FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 16.0dB(A) | 600 mW | CSA, TUV, UL | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
