直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-2010CF-060-066DC AXIAL FAN, 20 MM SQUARE, 10 M |
112 | - |
|
数据表 |
CFM-20CF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 0.600 CFM (0.017m³/min) | 0.030 in H2O (7.5 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 10.30mm | 6.6dB(A) | 250 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
3610VL-04W-B59-B50FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 77.0 CFM (2.16m³/min) | 0.393 in H2O (98.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 4.8 W | CE, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD4020-12HSSFAN AXIAL 40X20MM 12VDC WIRE |
653 | - |
|
数据表 |
OD4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Sealed Sleeve | - | Tubeaxial | Auto Restart | 20.00mm | 32.1dB(A) | 1.3 W | cURus, TUV | 8190 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
3610VL-05W-B29-B50FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 54.0 CFM (1.51m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 35.5dB(A) | 2.64 W | CE, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
03510SS-12N-AA-00FAN AXIAL 35X10MM 12VDC WIRE |
2,035 | - |
|
数据表 |
03510SS | Box | Active | 12VDC | Square - 35mm L x 35mm H | 5.7 CFM (0.160m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 10.00mm | 27.0dB | 840 mW | - | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
03010SS-12N-AA-00FAN AXIAL 30X10MM 12VDC WIRE |
429 | - |
|
数据表 |
03010SS | Box | Active | 12VDC | Square - 30mm L x 30mm H | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 10.00mm | 34.0dB | 960 mW | - | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3610VL-05W-B49-B50FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 68.1 CFM (1.91m³/min) | 0.321 in H2O (80.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 4.08 W | CE, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9A0912G4021FAN AXIAL 92X25MM 12VDC WIRE |
4,875 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 43.0dB(A) | 4.68 W | CSA, TUV, UL | 3900 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
CFM-6015V-122-145FAN AXIAL 60X15MM 12VDC WIRE |
550 | - |
|
数据表 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.040 in H2O (10.0 Pa) | omniCOOL™ Magnetic Sleeve | 0.078 lb (35.38 g) | Tubeaxial | Auto Restart | 15.00mm | 14.5dB(A) | 350 mW | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3610VL-05W-B59-B50FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 77.0 CFM (2.16m³/min) | 0.393 in H2O (98.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 5.28 W | CE, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-6015V-147-342FAN AXIAL 60X15MM 12VDC WIRE |
256 | - |
|
数据表 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 26.4 CFM (0.739m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.078 lb (35.38 g) | Tubeaxial | Auto Restart | 15.00mm | 34.2dB(A) | 1.77 W | CE, cURus, TUV | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3610VL-05W-B69-B50FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 85.8 CFM (2.40m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 48.0dB(A) | 6.72 W | CE, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
ASB02505HA-A7JVFAN AXIAL 25X10MM 5VDC WIRE |
1,241 | - |
|
数据表 |
ASB | Box | Not For New Designs | 5VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.114 in H2O (28.4 Pa) | Sleeve | 0.014 lb (6.35 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 18.0dB(A) | 450 mW | - | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-6010V-130-205-20FAN AXIAL 60X10MM 12VDC WIRE |
1,872 | - |
|
数据表 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 12.2 CFM (0.342m³/min) | 0.080 in H2O (20.0 Pa) | omniCOOL™ Magnetic Sleeve | 0.051 lb (23.13 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 20.5dB(A) | 680 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-7025C-230-332-20FAN AXIAL 70X25.2MM 24VDC WIRE |
294 | - |
|
数据表 |
CFM-70C | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.9 CFM (0.725m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.20mm | 30.8dB(A) | 1.44 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

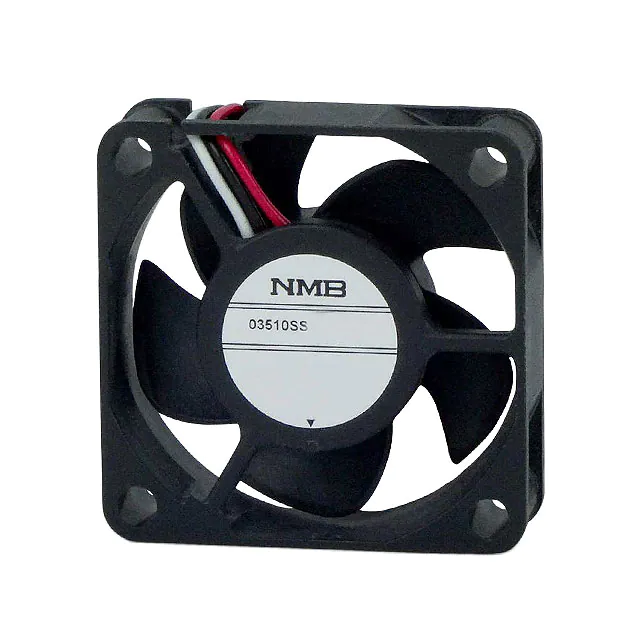

03510SS-12N-AT-00FAN AXIAL 35X10MM 12VDC WIRE |
610 | - |
|
数据表 |
03510SS | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 5.6 CFM (0.157m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | 0.023 lb (10.43 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 27.0dB | 840 mW | - | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CBM-3507CF-045-139-20DC BLOWER, 35 MM SQUARE, 10 MM, |
338 | - |
|
数据表 |
CBM-35CF | Box | Active | 5VDC | Square/Rounded - 35mm L x 35mm H | 0.600 CFM (0.017m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | - | 7.00mm | 13.9dB(A) | 450 mW | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3610VL-04W-B29-E50FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 54.0 CFM (1.51m³/min) | 0.200 in H2O (49.9 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 35.5dB(A) | 2.16 W | CE, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3610VL-04W-B39-E50FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 61.1 CFM (1.71m³/min) | 0.261 in H2O (65.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 38.5dB(A) | 2.88 W | CE, UL, VDE | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3610VL-04W-B49-E50FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 68.1 CFM (1.91m³/min) | 0.321 in H2O (80.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 3.6 W | CE, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
