直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3610VL-05W-B69-B00FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 85.8 CFM (2.40m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 48.0dB(A) | 6.72 W | CE, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3610VL-05W-B39-E00FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 61.1 CFM (1.71m³/min) | 0.261 in H2O (65.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 38.5dB(A) | 3.36 W | CE, UL, VDE | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3610VL-05W-B49-E00FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 68.1 CFM (1.91m³/min) | 0.321 in H2O (80.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 42.0dB(A) | 4.08 W | CE, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MF80251V3-1000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
3,042 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | 0.167 lb (75.75 g) | Tubeaxial | Auto Restart | 25.00mm | 28.0dB(A) | 780 mW | cURus, TUV | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
04015SS-24N-AL-00FAN AXIAL 40X15MM 24VDC WIRE |
143 | - |
|
数据表 |
04015SS | Box | Active | 24VDC | Square - 40mm L x 40mm H | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | 32.0dB | 1.2 W | - | 8300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MF60101V2-1000U-A99FAN AXIAL 60X10MM 12VDC WIRE |
911 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 14.3 CFM (0.400m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 0.051 lb (23.13 g) | Tubeaxial | Auto Restart | 10.00mm | 25.0dB(A) | 900 mW | cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

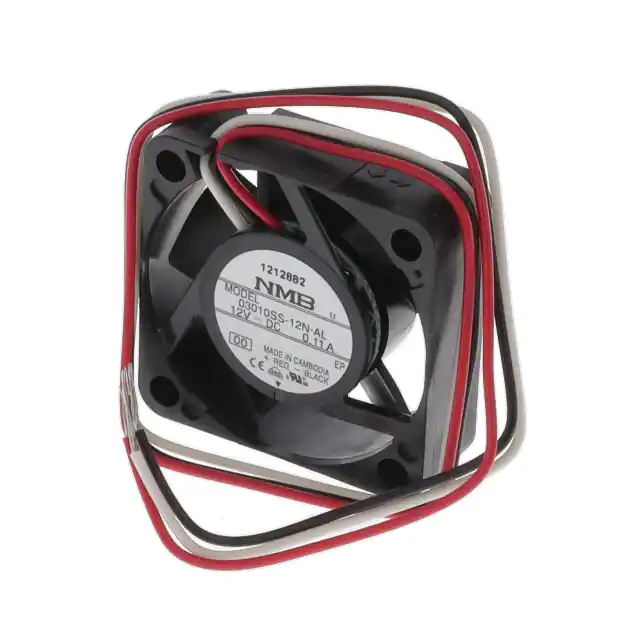

03010SS-12N-AL-00FAN AXIAL 30X10MM 12VDC WIRE |
318 | - |
|
数据表 |
03010SS | Box | Active | 12VDC | Square - 30mm L x 30mm H | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 28.0dB | 960 mW | - | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3610VL-05W-B79-E00FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 96.4 CFM (2.70m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 51.0dB(A) | 9.12 W | CE, UL, VDE | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9A0824S401FAN AXIAL 80X25MM 24VDC WIRE |
1,374 | - |
|
数据表 |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 2.4 W | CSA, TUV, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
3610VL-04W-B29-B50FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 54.0 CFM (1.51m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 35.5dB(A) | 2.16 W | CE, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MF80251V1-1000U-G99FAN AXIAL 80X25MM 12VDC WIRE |
350 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.167 lb (75.75 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 1.44 W | cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3610VL-04W-B39-B50FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 61.1 CFM (1.71m³/min) | 0.261 in H2O (65.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 38.5dB(A) | 2.88 W | CE, UL, VDE | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8015CF-130-301FAN AXIAL 80X15.4MM 12VDC WIRE |
283 | - |
|
数据表 |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart | 15.40mm | 30.1dB(A) | 3.12 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6015V-154-362-20FAN AXIAL 60X15MM 12VDC WIRE |
1,552 | - |
|
数据表 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 30.4 CFM (0.851m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.078 lb (35.38 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 36.2dB(A) | 2.56 W | CE, cURus, TUV | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-7015V-128-265-20FAN AXIAL 70X15MM 12VDC WIRE |
1,483 | - |
|
数据表 |
CFM-70V | Tray | Active | 12VDC | Square - 70mm L x 70mm H | 23.0 CFM (0.644m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.091 lb (41.28 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 26.5dB(A) | 1.04 W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
109P0412H701FAN AXIAL 40X15MM 12VDC WIRE |
4,365 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 28.0dB(A) | 1.56 W | CSA, TUV, UL | 7700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

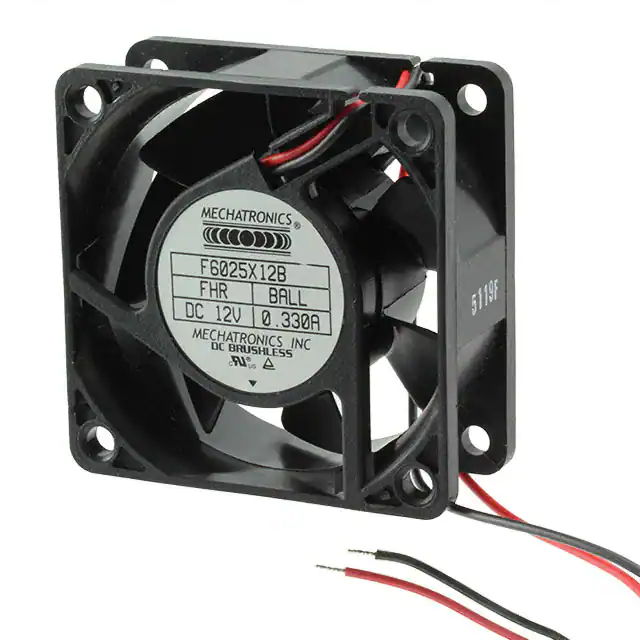

F6025X12B-FHRFAN AXIAL 60X25MM 12VDC WIRE |
201 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 2 Wire Leads | - |
|
|
CFM-7015V-133-315FAN AXIAL 70X15MM 12VDC WIRE |
788 | - |
|
数据表 |
CFM-70V | Tray | Active | 12VDC | Square - 70mm L x 70mm H | 27.0 CFM (0.756m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.091 lb (41.28 g) | Tubeaxial | Auto Restart | 15.00mm | 31.5dB(A) | 1.56 W | CE, cURus, TUV | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3610VL-04W-B49-B50FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 68.1 CFM (1.91m³/min) | 0.321 in H2O (80.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 3.6 W | CE, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-2507CF-0100-240-20DC AXIAL FAN, 25 MM SQUARE, 7 MM |
300 | - |
|
数据表 |
CFM-25CF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 7.00mm | 24.1dB(A) | 1.2 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
