直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD8025-24MS01AFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
OD8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 28.0dB | 960 mW | cURus, TUV | 2500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
|
OD8025-24MS02AFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
OD8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 28.0dB | 960 mW | cURus, TUV | 2500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
|
OD8025-48HSFAN AXIAL 80X25MM 48VDC WIRE |
0 | - |
|
数据表 |
OD8025 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart | 25.00mm | 33.0dB | 3.8 W | cURus | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
OD9225-48HHSFAN AXIAL 92.5X25MM 48VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 48VDC | Square - 92.5mm L x 92.5mm H | - | - | Sleeve | - | Tubeaxial | - | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
OD9225-48HSFAN AXIAL 92.5X25MM 48VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 48VDC | Square - 92.5mm L x 92.5mm H | - | - | Sleeve | - | Tubeaxial | - | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
AFB0605LCFAN AXIAL 60X13MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 15.4 CFM (0.431m³/min) | 0.083 in H2O (20.6 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Protection | 13.00mm | 24.0dB(A) | 600 mW | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0512HB-AF00FAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 18.0 CFM (0.504m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 34.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 6300 RPM | - | 3 Wire Leads | - |
|
|
AFB0605HCFAN AXIAL 60X13MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 21.2 CFM (0.594m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Protection | 13.00mm | 31.5dB(A) | 1.45 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0424MBFAN AXIAL 40X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.202 in H2O (50.3 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 24.5dB(A) | 1.44 W | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0412HBFAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.5 CFM (0.266m³/min) | 0.272 in H2O (67.7 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 28.5dB(A) | 1.2 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

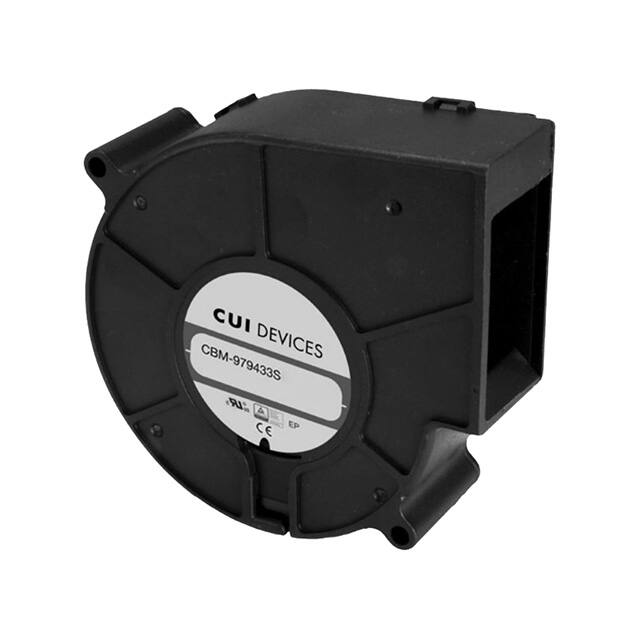

CBM-979433S-230-507-22FAN BLOWER 97X33MM 24VDC WIRE |
0 | - |
|
数据表 |
CBM-97S | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 18.1 CFM (0.507m³/min) | 0.400 in H2O (99.6 Pa) | Sleeve | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 33.00mm | 43.5dB(A) | 5.76 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
CBM-4010B-160-267-22FAN BLOWER 39.5X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 1.8 CFM (0.050m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Blower | PWM Control, Speed Sensor (Tach) | 10.00mm | 26.7dB(A) | 1.32 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
KD2406PTB2.(2).GNFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 30.0dB(A) | 1.3 W | CE, CUR, TUV, UL | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KD2406PTB2.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 25.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
KD2406PTB3.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 26.0dB(A) | 1 W | CE, CUR, TUV, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
KD2406PTB4.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 25.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
KD2406PTBX.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 25.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
MC35101V1-000U-A99FAN AXIAL 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 12VDC | Square - 35mm L x 35mm H | 7.0 CFM (0.196m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.024 lb (10.89 g) | Tubeaxial | Auto Restart | 10.00mm | 28.0dB(A) | 720 mW | CE, CUR, TUV, UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
KD1212PTB1-6A.GNFAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 90.0 CFM (2.52m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | - | 25.00mm | 44.5dB(A) | 3.7 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MR4020E12B1-RSRFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 0.053 lb (24.04 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 39.1dB(A) | - | CE, cUL, TUV, UL | 11000 RPM | - | 3 Wire Leads | - |
