直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09225SA-24L-AT-D0FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 39.9 CFM (1.12m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 25.0dB | 1.2 W | - | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
09225SA-12M-EL-D0FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 45.2 CFM (1.27m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 29.0dB | 1.68 W | - | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
09225SA-12P-EL-D0FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 59.0 CFM (1.65m³/min) | 0.216 in H2O (53.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 37.0dB | 2.28 W | - | 3550 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
09225SA-24N-EL-D0FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 32.0dB | 1.92 W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
09225SA-24M-ET-D0FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 45.2 CFM (1.27m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 29.0dB | 1.68 W | - | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
09225SA-24P-AT-D0FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 59.0 CFM (1.65m³/min) | 0.216 in H2O (53.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 37.0dB | 2.64 W | - | 3550 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD1232-12HSSFAN AXIAL 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Sealed Sleeve | - | Tubeaxial | - | 32.00mm | 51.0dB | - | cURus, TUV | 3750 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
|
OD1232-12LSSFAN AXIAL 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.270 in H2O (67.3 Pa) | Sealed Sleeve | - | Tubeaxial | - | 32.00mm | 44.0dB | - | cURus, TUV | 2900 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
|
OD1232-12MSSFAN AXIAL 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 107.0 CFM (3.00m³/min) | 0.330 in H2O (82.2 Pa) | Sealed Sleeve | - | Tubeaxial | - | 32.00mm | 48.0dB | - | cURus, TUV | 3300 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
|
OD1232-24HSSFAN AXIAL 120X32MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Sealed Sleeve | - | Tubeaxial | - | 32.00mm | 51.0dB | - | cURus, TUV | 3750 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
|
OD1232-24LSSFAN AXIAL 120X32MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.270 in H2O (67.3 Pa) | Sealed Sleeve | - | Tubeaxial | - | 32.00mm | 44.0dB | - | cURus, TUV | 2900 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
|
OD1232-24MSSFAN AXIAL 120X32MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1232 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 107.0 CFM (3.00m³/min) | 0.330 in H2O (82.2 Pa) | Sealed Sleeve | - | Tubeaxial | - | 32.00mm | 48.0dB | - | cURus, TUV | 3300 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
|
MH40201V3-C03A-E99DC BLOWER 22.2MM |
0 | - |
|
数据表 |
MH | Box | Active | 13VDC | Square - 40mm L x 40mm H | 0.700 CFM (0.020m³/min) | 0.020 in H2O (5.0 Pa) | Vapo-Bearing™ | - | Blower | Thermistor | 22.20mm | 27.0dB(A) | 0.6 W | CE | 2700 RPM | -40 ~ 221°F (-40 ~ 105°C) | 6 Pin | - |
|
|
PSD1204PBB1-A.(2).Z.GNDC FAN 40X15MM |
0 | - |
|
数据表 |
PSD | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 21.6 CFM (0.605m³/min) | 1.230 in H2O (306.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 24.00mm | 55.7dB(A) | 6.6 W | - | 14700 RPM | - | 2 Wire Leads | - |
|
|
HA60201V3-E00U-A99DC FAN 60X20MM |
0 | - |
|
数据表 |
HA | Box | Obsolete | 12VDC | Round - 84.9mm Dia | 13.0 CFM (0.364m³/min) | 0.030 in H2O (7.5 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 20.40mm | 17.5dB(A) | 0.34 W | - | 2300 RPM | - | 2 Wire Leads | - |
|
|
5158HQ.A/EF40070S1-C07U-S99DC BLOWER 40X7MM TACH/PWM |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

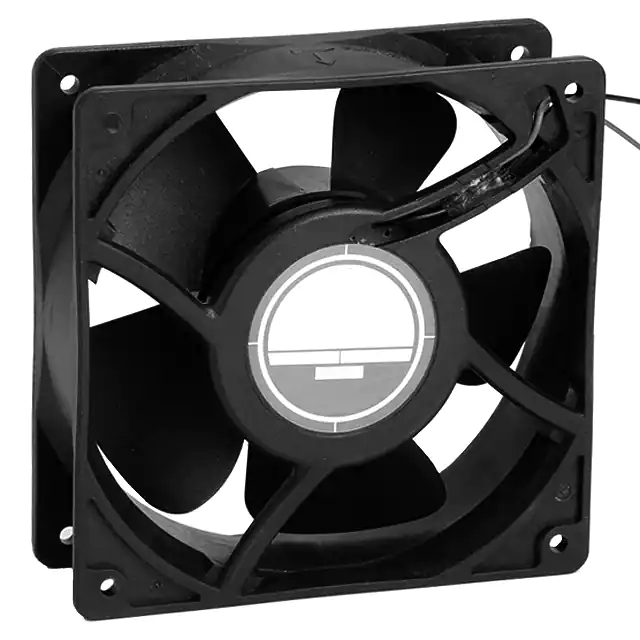

OD1238-12LSSFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 73.0 CFM (2.04m³/min) | 0.130 in H2O (32.4 Pa) | Sealed Sleeve | - | Tubeaxial | - | 38.50mm | 33.0dB | 3 W | cURus, TUV | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1238-12MSSFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Sealed Sleeve | - | Tubeaxial | - | 38.50mm | 41.0dB | 4 W | cURus, TUV | 2540 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1238-24HSSFAN AXIAL 120X38.5MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 105.0 CFM (2.94m³/min) | 0.240 in H2O (59.8 Pa) | Sealed Sleeve | - | Tubeaxial | - | 38.50mm | 43.0dB | 7 W | cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1238-24LSSFAN AXIAL 120X38.5MM 24VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 73.0 CFM (2.04m³/min) | 0.130 in H2O (32.4 Pa) | Sealed Sleeve | - | Tubeaxial | - | 38.50mm | 33.0dB | 4 W | cURus, TUV | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
