直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEAD18038BH PF00PEAD18038BH PF00 |
0 | - |
|
数据表 |
PE | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 134.5 CFM (3.77m³/min) | 1.970 in H2O (490.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 65.5dB(A) | 37.2 W | CE, cURus, TUV, UL | 10200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PEAD29225BH MF00PEAD29225BH MF00 YHHB-01 |
0 | - |
|
数据表 |
PE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 106.7 CFM (2.99m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 51.0dB(A) | 6.96 W | CE, cURus, TUV, UL | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
PSAD2A238BH MF00PSAD2A238BH MF00 |
0 | - |
|
数据表 |
PS | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 200.9 CFM (5.63m³/min) | 0.980 in H2O (244.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 59.5dB(A) | 16.8 W | CE, cURus, TUV, UL | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
BFB04505HHA-CFAN BLOWER 45X10.3MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 45mm L x 45mm H | 3.5 CFM (0.098m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 0.04 lb (18.14 g) | Blower | Locked Rotor Protection | 10.30mm | 35.5dB(A) | 1.25 W | CE, cURus, VDE | 5900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD4010-12HHS02AFAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 12.0 CFM (0.336m³/min) | 0.340 in H2O (84.7 Pa) | Sleeve | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.50mm | 38.2dB | 720 mW | CE, cURus, TUV, UR | 10000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
OD4010-12LLS01AFAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Sleeve | 0.441 lb (200.00 g) | Tubeaxial | Speed Sensor (Tach) | 10.50mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD4510-24LSFAN AXIAL 45X10MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 24VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | - | 10.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
OD5010-05LS02AFAN AXIAL 50X10.5MM 5VDC WIRE |
0 | - |
|
数据表 |
OD5010 | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | - | - | Sleeve | - | Tubeaxial | Locked Rotor Sensor | 10.50mm | - | - | cURus | - | - | 3 Wire Leads | - |
|
OD5015-12HS01AFAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
OD5015 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 15.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
OD6025-12HHS10AFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 1.8 W | cURus, TUV | 4390 RPM | 14 ~ 122°F (-10 ~ 50°C) | 4 Wire Leads | - |
|
|
PAAD14020BH PF00PAAD14020BH PF00 |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OD8025-12MS5FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart, PWM Control | 25.00mm | 28.0dB | 960 mW | cURus, TUV | 2500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
|
PSAD1A225BH MF00PSAD1A225BH MF00 |
0 | - |
|
数据表 |
PS | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 126.9 CFM (3.55m³/min) | 0.690 in H2O (171.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 51.5dB(A) | 7.08 W | CE, cURus, TUV, UL | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
DC0501012H2B-3T0FAN AXIAL 50X10MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 35.0dB(A) | 1.2 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0501012M2B-3T0FAN AXIAL 50X10MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 960 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0501024H2B-2T0FAN 50X10MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 35.0dB(A) | 2.4 W | CE, cURus | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0501005H2B-2T0FAN 50X10MM 5VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 35.0dB(A) | 500 mW | CE, cURus | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
GB0504ADV1-8.B2471.F.GNFAN BLOWER 40X7.3MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® GB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 1.5 CFM (0.042m³/min) | - | Vapo-Bearing™ | - | Blower | Speed Sensor (Tach) | 7.30mm | - | 400 mW | CE, CUR, TUV, UL | - | 14 ~ 194°F (-10 ~ 90°C) | 3 Wire Leads | - |
|

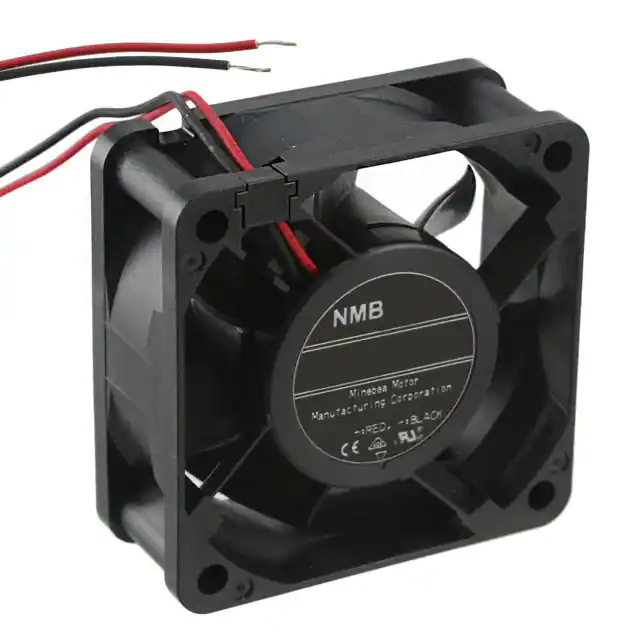

2410SB-04W-B30-B00FAN AXIAL 60X25MM 12VDC WIRE |
13 | - |
|
数据表 |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.123 lb (55.79 g) | Tubeaxial | - | 25.00mm | 22.5dB(A) | 960 mW | CE, UL, VDE | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-6025BG-250-349DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 21.3 CFM (0.596m³/min) | 0.300 in H2O (74.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 34.9dB(A) | 1.68 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
