直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WPA0924P4G00392X25MM, DC, 24V, SPLASH & DUST |
5 | - |
|
数据表 |
San Ace 92W | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 86.5 CFM (2.42m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.20mm | 47.7dB(A) | 6 W | - | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof |
|
3414NHUFAN AXIAL 92X25.4MM 24VDC WIRE |
22 | - |
|
数据表 |
3400NU | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 55.3 CFM (1.55m³/min) | - | Ball | 0.234 lb (106.14 g) | Tubeaxial | - | 25.40mm | 36.0dB(A) | 2.3 W | UL | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
FDD1-17251CBLW32FAN AXIAL 172X51MM 12VDC WIRE |
20 | - |
|
数据表 |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 56.0dB(A) | 22.6 W | CE, cURus, TUV | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

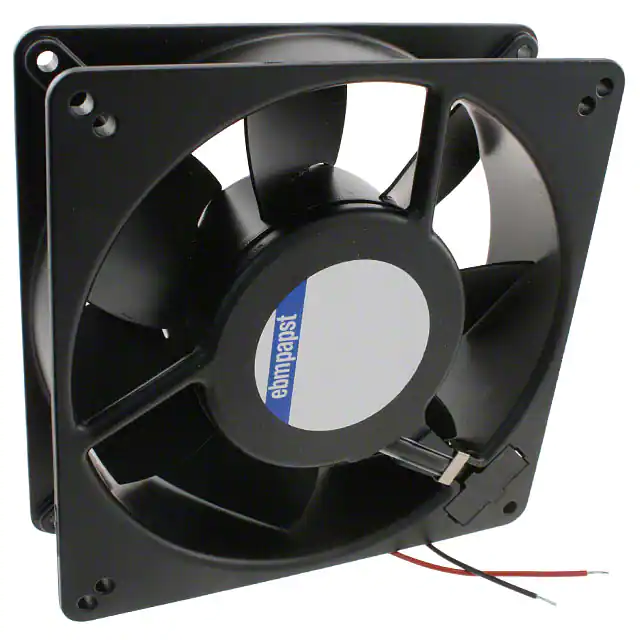

5118NFAN AXIAL 135X38MM 48VDC WIRE |
13 | - |
|
数据表 |
5100N | Bulk | Active | 48VDC | Square - 135mm L x 135mm H | 147.0 CFM (4.12m³/min) | - | Ball | 1.4 lbs (635.0 g) | Tubeaxial | - | 38.00mm | 48.0dB(A) | 9.5 W | CE | 2900 RPM | -13 ~ 162°F (-25 ~ 72°C) | 2 Wire Leads | - |
|
9LG1224A1001FAN AXIAL 120X38MM 24VDC WIRE |
19 | - |
|
数据表 |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | 8.88 W | - | - | - | 3 Wire Leads | - |
|
|
15050VA-48R-EA-00FAN AXIAL 172.7X50.8MM 48VDC |
10 | - |
|
数据表 |
15050VA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 68.0dB | 43.2 W | - | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
17250VE-24R-GT-00FAN AXIAL 172.7X50.8MM 24VDC |
17 | - |
|
数据表 |
17250VE | Bulk | Active | 24VDC | Round - 172.7mm Dia | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.80mm | 62.0dB(A) | 43.2 W | CE, cULus, VDE | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
9LG1224F1002FAN AXIAL 120X38MM 24VDC WIRE |
17 | - |
|
数据表 |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | 4.56 W | - | - | - | 2 Wire Leads | - |
|

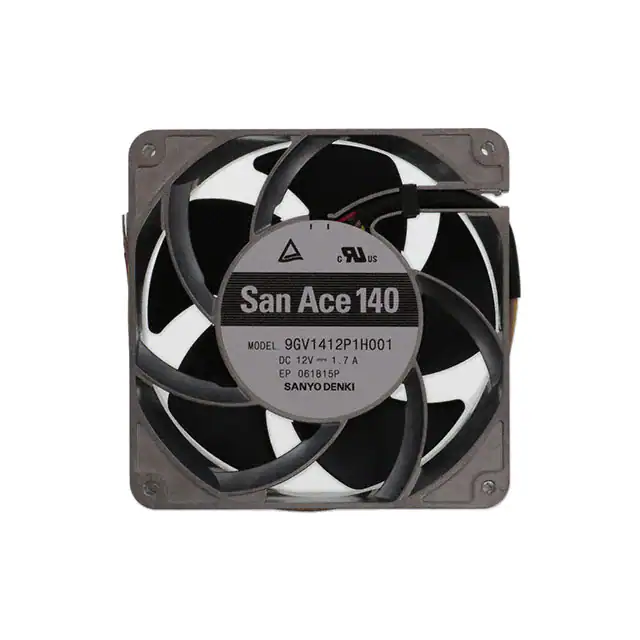

9GV1412P1H001FAN AXIAL 140X38MM 12VDC WIRE |
8 | - |
|
数据表 |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 20.4 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

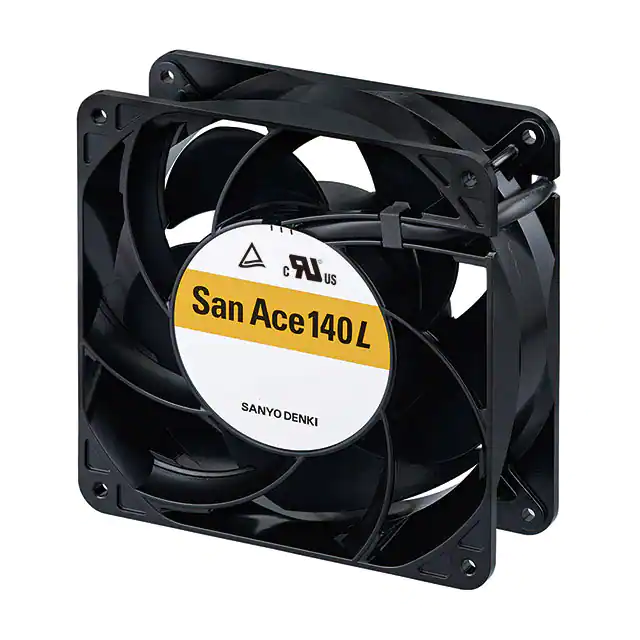

9LG1412M1001FAN AXIAL 140X38MM 12VDC WIRE |
13 | - |
|
数据表 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 1.4 lbs (650.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 7.2 W | cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG1412M1D001FAN AXIAL 140X38MM 12VDC WIRE |
10 | - |
|
数据表 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 1.4 lbs (650.0 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 46.0dB(A) | 7.2 W | cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG1412L1001FAN AXIAL 140X38MM 12VDC WIRE |
5 | - |
|
数据表 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 91.8 CFM (2.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | 3.3 W | CSA, TUV, UL | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
15050VE-24R-GT-00FAN AXIAL 172.7X50.8MM 24VDC |
4 | - |
|
数据表 |
15050VE | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.80mm | 68.0dB(A) | 43.2 W | CE, cULus, VDE | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
FDD1-17251DBLW32FAN AXIAL 172X51MM 24VDC WIRE |
11 | - |
|
数据表 |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 56.0dB(A) | 21.4 W | CE, cURus, TUV | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

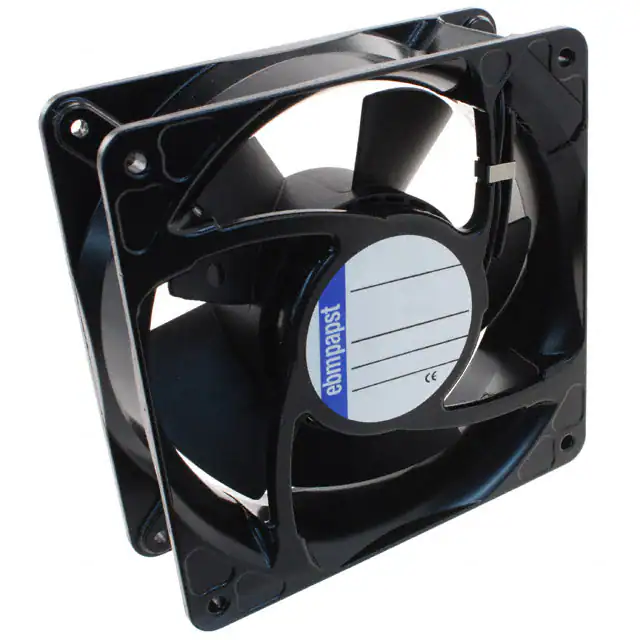

4182NXHFAN AXIAL 119X38MM 12VDC TERM |
16 | - |
|
数据表 |
4100N | Box | Active | 12VDC | Square - 119mm L x 119mm H | 139.5 CFM (3.91m³/min) | - | Ball | 0.86 lb (390.09 g) | Tubeaxial | - | 38.00mm | 57.0dB(A) | 11 W | CSA, UL, VDE | 4400 RPM | -22 ~ 131°F (-30 ~ 55°C) | 2 Terminals | - |
|
|
9LG1448L1002FAN AXIAL 140X38MM 48VDC WIRE |
14 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 91.8 CFM (2.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 1.5 lbs (680.4 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | - | 5.3 W | cURus, TUV | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9LG1448M1002FAN AXIAL 140X38MM 48VDC WIRE |
10 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 1.5 lbs (680.4 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 46.0dB(A) | 7.2 W | cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
W2G107-AD03-13FAN AXIAL 119X38MM 24VDC TERM |
3 | - |
|
数据表 |
W2G107 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | - | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 38.00mm | 42.0dB(A) | 3.3 W | CSA, UL, VDE | - | - | 2 Terminals | - |
|
|
9LG1448A5001FAN AXIAL 140X51MM 48VDC WIRE |
10 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | - | 31.7 W | cURus, TUV | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG1412A5D001FAN AXIAL 140X51MM 12VDC WIRE |
7 | - |
|
数据表 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 243.7 CFM (6.82m³/min) | 2.000 in H2O (498.2 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | - | 31.4 W | CSA, TUV, UL | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
