直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QFR0912GHE-F00FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
QFR | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 109.2 CFM (3.06m³/min) | 1.056 in H2O (263.0 Pa) | Ball | 0.43 lb (195.04 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 57.0dB(A) | 11.4 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PFB0948UHEFAN AXIAL 92X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 64.0dB(A) | 28.8 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
AFB0612EHD-AR00FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 35.2 CFM (0.986m³/min) | 0.484 in H2O (120.6 Pa) | Ball | 0.124 lb (56.25 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 45.0dB(A) | 3.72 W | CE, CSA, UL, VDE | 6600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0512HB-R00FAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 32.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0524MB-R00FAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 28.0dB(A) | 1.44 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0524HHB-F00FAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 6400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

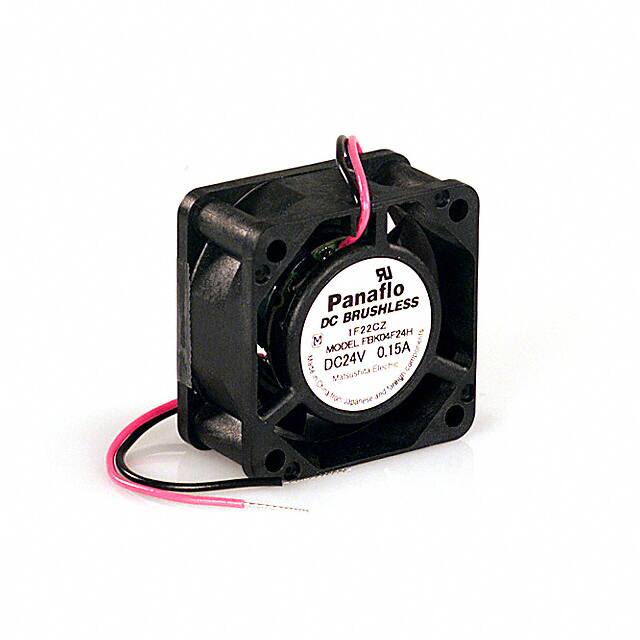

FBK04F24HFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
FBK | - | Obsolete | 24VDC | Square - 40mm L x 40mm H | 6.7 CFM (0.188m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.088 lb (39.92 g) | Tubeaxial | - | 20.00mm | 33.0dB(A) | 2.21 W | UL | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0601012M2B-2T0FAN AXIAL 60X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.089 lb (40.37 g) | Tubeaxial | Locked Rotor Protection | 10.50mm | 33.0dB(A) | 2.04 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0602012H2B-2T0FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.1 CFM (0.507m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 31.0dB(A) | 1.56 W | CE, cURus, TUV | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0602012U2B-2T0FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 19.6 CFM (0.549m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 33.0dB(A) | 2.04 W | CE, cURus, TUV | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-8010-13-10FAN AXIAL 80X10.6MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.094 lb (42.64 g) | Tubeaxial | Auto Restart | 10.60mm | 38.2dB(A) | 2.88 W | CE, cURus, TUV | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-8025V-148-447-11FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | 0.165 lb (74.84 g) | Tubeaxial | Auto Restart | 25.00mm | 44.7dB(A) | 4.29 W | CE, cURus, TUV | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FFB1248EHFAN AXIAL 120X25.4MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 56.4dB(A) | 15.36 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
BFB1224VH-AFAN BLOWER 120X32MM 24VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 42.5 CFM (1.19m³/min) | 1.848 in H2O (460.3 Pa) | Ball | 0.661 lb (299.82 g) | Blower | Locked Rotor Protection | 32.00mm | 57.0dB(A) | 16.8 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
EFB0405LD-F00FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.136 in H2O (33.9 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 22.0dB(A) | 500 mW | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PFB0824EHE-F00FAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 79.4 CFM (2.22m³/min) | 0.767 in H2O (191.0 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 8.64 W | CE, CSA, UL, VDE | 5600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
DC0702512L2B-2T0FAN AXIAL 70X25MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 27.0dB(A) | 840 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-A225B-120-350-20FAN AXIAL 120X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.40mm | 37.8dB(A) | 2.76 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-A225B-015-287-20FAN AXIAL 120X25.4MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.40mm | 24.8dB(A) | 1.2 W | CE, cURus, TUV | 1500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-4015B-2105-365-20DC AXIAL FAN, 40 MM SQUARE, 15 M |
0 | - |
|
数据表 |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 12.3 CFM (0.344m³/min) | 0.560 in H2O (139.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.10mm | 36.5dB(A) | 2.64 W | CE, cURus, TUV | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
