直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GFB0412SHS-CFAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
GFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 27.9 CFM (0.781m³/min) | 1.649 in H2O (410.7 Pa) | Ball | 0.187 lb (84.82 g) | Tubeaxial (Dual) | - | 56.00mm | 62.5dB(A) | 12 W | CE, CSA, UL, VDE | 13900 Front, 12000 Rear | - | 2 Wire Leads per Fan | - |
|
|
PFB0812EHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 79.4 CFM (2.22m³/min) | 0.767 in H2O (191.0 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 8.64 W | CE, CSA, UL, VDE | 5600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
GDA1225-24BBFAN AXIAL 120X25MM 24VDC WIRE |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 69.0 CFM (1.93m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.362 lb (164.2 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 39.1dB(A) | 8.4 W | - | 2400 RPM | - | 3 Wire Leads | - |
|
|
EF92251B2-1000U-G9912VDC FAN 92X25MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 44.9 CFM (1.26m³/min) | 0.150 in H2O (37.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 32.0dB(A) | 1.08 W | CCC, CE, cURus, TUV, UKCA | 2700 RPM | - | 3 Wire Leads | - |
|
|
EF92251B1-1000U-G9912VDC FAN 92X25MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 51.3 CFM (1.44m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 1.5 W | CCC, CE, cURus, TUV, UKCA | 3000 RPM | - | 3 Wire Leads | - |
|
|
EF92251B3-1000U-G9912VDC FAN 92X25MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 39.5 CFM (1.11m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 28.0dB(A) | 0.75 W | CCC, CE, cURus, TUV, UKCA | 2400 RPM | - | 3 Wire Leads | - |
|
CFM-5020B-130-235-22FAN AXIAL 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 8.1 CFM (0.227m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 23.5dB(A) | 600 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

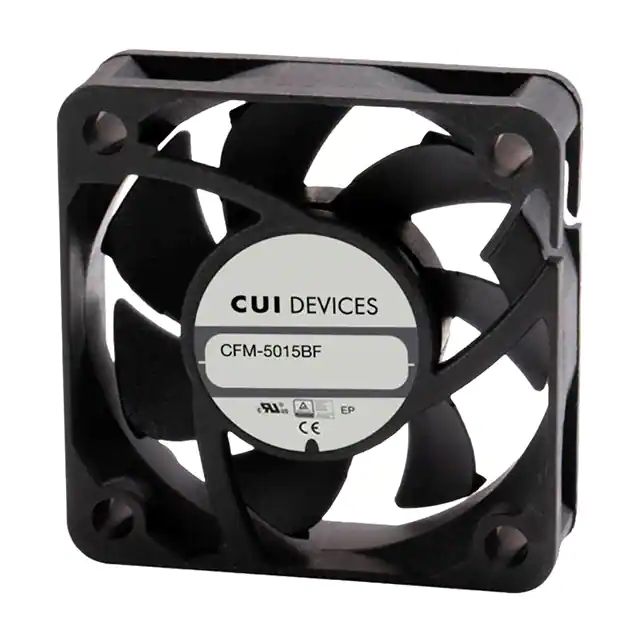

CFM-5015BF-175-423-22FAN AXIAL 50X15.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-50BF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 19.5 CFM (0.546m³/min) | 0.320 in H2O (79.7 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.50mm | 42.3dB(A) | 3.84 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-5020B-145-323-22FAN AXIAL 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 12.1 CFM (0.338m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 32.3dB(A) | 1.44 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
CFM-4020BF-2110-381-22FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 13.8 CFM (0.386m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 38.1dB(A) | 2.88 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-5015BF-145-348-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
0 | - |
|
数据表 |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 2.9 CFM (0.081m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Blower | PWM Control, Speed Sensor (Tach) | 15.00mm | 34.8dB(A) | 1.44 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-5015BF-135-293-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
0 | - |
|
数据表 |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 2.2 CFM (0.061m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Blower | PWM Control, Speed Sensor (Tach) | 15.00mm | 29.4dB(A) | 600 mW | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-4020B-145-305-22DC BLOWER, 40 MM SQUARE, 20 MM, |
0 | - |
|
数据表 |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 2.0 CFM (0.056m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 30.5dB(A) | 0.48 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-5020B-260-367-22DC AXIAL FAN, 50 MM SQUARE, 20 M |
0 | - |
|
数据表 |
CFM-50B | Box | Active | 24VDC | Square - 50mm L x 50mm H | 18.2 CFM (0.510m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 19.80mm | 36.7dB(A) | 1.68 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-5020B-275-416-22DC AXIAL FAN, 50 MM SQUARE, 20 M |
0 | - |
|
数据表 |
CFM-50B | Box | Active | 24VDC | Square - 50mm L x 50mm H | 22.8 CFM (0.638m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 19.80mm | 41.6dB(A) | 2.64 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
EE80252B1-000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
EE | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.165 lb (74.84 g) | Tubeaxial | Auto Restart | 25.00mm | 33.0dB(A) | 1.8 W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-4015B-165-256-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
0 | - |
|
数据表 |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.3 CFM (0.204m³/min) | 0.220 in H2O (55.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.10mm | 25.6dB(A) | 0.96 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-4015B-145-176-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
0 | - |
|
数据表 |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 5.0 CFM (0.140m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.10mm | 17.6dB(A) | 0.6 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
MF30101V1-1000U-F9912VDC FAN 30X10MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 12VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 23.0dB(A) | 0.66 W | CCC, CE, cURus, TUV, UKCA | 11500 RPM | - | 3 Wire Leads | - |
|
|
QFR0612DH-BFAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
QFR | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 51.2 CFM (1.43m³/min) | 1.016 in H2O (253.1 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 54.5dB(A) | 9 W | CE, cURus, VDE | 10600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
