直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB1112M-F00FAN BLOWER 107X25MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 107mm L x 101mm H | 18.8 CFM (0.526m³/min) | 0.633 in H2O (157.7 Pa) | Ball | 0.309 lb (140.16 g) | Blower | Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 3.6 W | CE, CSA, UL, VDE | 2800 RPM | - | 3 Wire Leads | - |
|
|
FFB1448UHE-MFAN AXIAL 139.7X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 48VDC | Square - 139.7mm L x 139.7mm H | 367.6 CFM (10.29m³/min) | 1.644 in H2O (409.5 Pa) | Ball | 1.4 lbs (650.0 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 74.0dB(A) | 86.4 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0712VHDFAN AXIAL 70X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 46.9 CFM (1.31m³/min) | 0.285 in H2O (71.0 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 44.3dB(A) | 4.2 W | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0712SH-AR00FAN AXIAL 70X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 61.1 CFM (1.71m³/min) | 0.625 in H2O (155.7 Pa) | Ball | 0.238 lb (107.95 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 50.5dB(A) | 7.56 W | CE, CSA, UL, VDE | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0612LB-F00FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 11.6 CFM (0.325m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 24.0dB(A) | 840 mW | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MC35100V1-000U-A99FAN AXIAL 35X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 35mm L x 35mm H | 7.0 CFM (0.196m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.024 lb (10.89 g) | Tubeaxial | Auto Restart | 10.00mm | 28.0dB(A) | 750 mW | CE, CUR, TUV, UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
PFB1248UHE-F00FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 66.5dB(A) | 48 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
FFB0948EHEFAN AXIAL 92X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 103.7 CFM (2.90m³/min) | 0.691 in H2O (172.1 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 54.0dB(A) | 10.08 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|

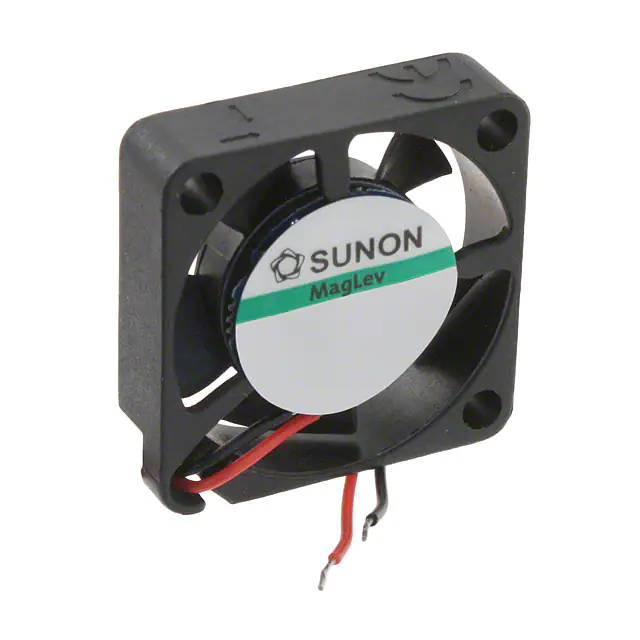

MC25060V1-000U-A99FAN AXIAL 25X6.9MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 25mm L x 25mm H | 3.0 CFM (0.084m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | 0.011 lb (4.99 g) | Tubeaxial | Auto Restart | 6.90mm | 31.0dB(A) | 580 mW | CE, CUR, TUV, UL | 13000 RPM | - | 2 Wire Leads | - |
|
|
BFB1024H-R00FAN BLOWER 97.2X33MM 24VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | 0.353 lb (160.12 g) | Blower | Locked Rotor Sensor | 33.00mm | 52.0dB(A) | 9.6 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
MC25060V2-000U-A99FAN AXIAL 25X6.9MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | 0.011 lb (4.99 g) | Tubeaxial | Auto Restart | 6.90mm | 23.0dB(A) | 380 mW | CE, CUR, TUV, UL | 10000 RPM | - | 2 Wire Leads | - |
|
MC25100V2-000U-A99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 25mm L x 25mm H | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.017 lb (7.71 g) | Tubeaxial | Auto Restart | 10.00mm | 16.0dB(A) | 430 mW | CE, CUR, TUV, UL | 10000 RPM | - | 2 Wire Leads | - |
|
|
AFB0924L-F00FAN AXIAL 92X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.219 lb (99.34 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 25.0dB(A) | 1.44 W | CE, CSA, UL, VDE | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MC30060V2-000U-A99FAN AXIAL 30X6.9MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.090 in H2O (22.4 Pa) | Vapo-Bearing™ | 0.013 lb (5.9 g) | Tubeaxial | Auto Restart | 6.90mm | 24.0dB(A) | 360 mW | CE, CUR, TUV, UL | 7500 RPM | - | 2 Wire Leads | - |
|
|
AUB0912VH-AF00FAN AXIAL 92X10MM 12VDC WIRE |
0 | - |
|
数据表 |
AUB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | - | - | Superflo | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | - | - | CE, CSA, UL, VDE | - | - | 3 Wire Leads | - |
|
|
AFB0512HHB-R00FAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 36.0dB(A) | 1.56 W | CE, CSA, UL, VDE | 6400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MC30100V2-000U-A99FAN AXIAL 30X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 30mm L x 30mm H | 4.6 CFM (0.129m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | 0.019 lb (8.62 g) | Tubeaxial | Auto Restart | 10.00mm | 20.0dB(A) | 380 mW | CE, CUR, TUV, UL | 8000 RPM | - | 2 Wire Leads | - |
|
|
PFB0612UHEFAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 67.8 CFM (1.90m³/min) | 2.129 in H2O (530.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 61.5dB(A) | 16.8 W | CE, CSA, UL, VDE | 12000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|

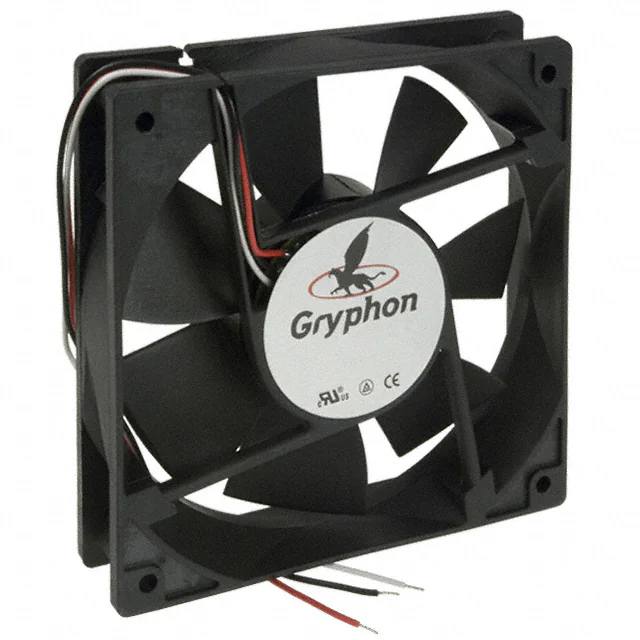

GDA1225-12BBFAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 69.0 CFM (1.93m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.362 lb (164.2 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 39.1dB(A) | 4.8 W | - | 2400 RPM | - | 3 Wire Leads | - |
|
|
FFB0412VHN-AF00FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 19.2 CFM (0.538m³/min) | 0.748 in H2O (186.3 Pa) | Ball | 0.078 lb (35.38 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 48.5dB(A) | 3.6 W | CE, CSA, UL, VDE | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
