直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4020BF-075-306-20FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 30.6dB(A) | 1.8 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-4020BF-2110-381-20FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 13.8 CFM (0.386m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 38.1dB(A) | 2.88 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-4020BF-195-342-20DC AXIAL FAN, 40 MM SQUARE, 20 M |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 34.2dB(A) | 1.92 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-4020BF-1110-381-20DC AXIAL FAN, 40 MM SQUARE, 20 M |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 13.8 CFM (0.386m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 38.1dB(A) | 2.52 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-6015-13-11FAN AXIAL 60X15.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60 | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.089 lb (40.37 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.40mm | 39.0dB(A) | 2.64 W | CE, cURus, TUV | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

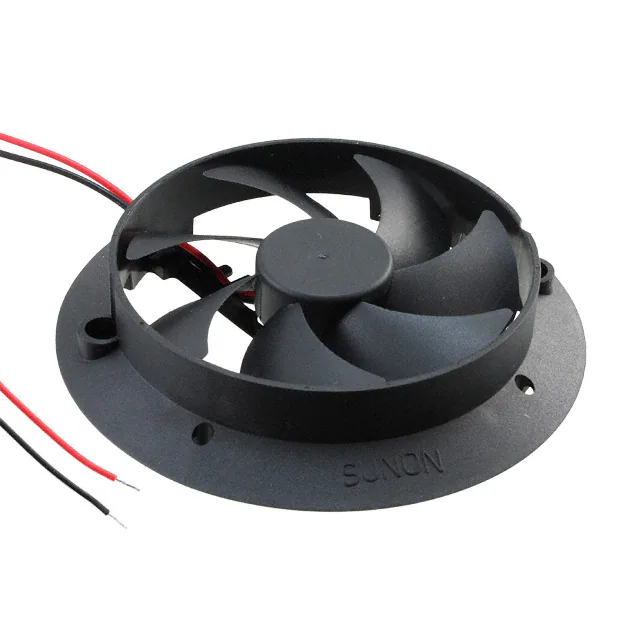

HA60151V3-E01U-A99FAN AXIAL 84.9X15.4MM 12VDC |
0 | - |
|
数据表 |
MagLev® HA | Tray | Obsolete | 12VDC | Round - 84.9mm Dia | 13.2 CFM (0.370m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | 0.06 lb (27.22 g) | Tubeaxial | Auto Restart | 15.40mm | 30.3dB(A) | 340 mW | CE, CUR, TUV, UL | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
3110SB-05W-B59-E00FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 30.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110SB-04W-B29-B00FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 19.0dB(A) | 600 mW | CE, CSA, UL, VDE | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110SB-04W-B39-B00FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 30.4 CFM (0.851m³/min) | 0.086 in H2O (21.5 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 22.0dB(A) | 720 mW | CE, CSA, UL, VDE | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110SB-04W-B59-B00FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 30.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9WE5748P5K01FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172W | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 60.0dB(A) | 33.6 W | CSA, TUV, UL | 4100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
3110SB-04W-B29-E00FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 19.0dB(A) | 600 mW | CE, CSA, UL, VDE | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9G1212P1G04FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 11.76 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9G1212P1G081FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 11.76 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9G1212P4E041FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 48.0dB(A) | 6.96 W | CSA, TUV, UL | 3650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9G1212P4E05FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 48.0dB(A) | 6.96 W | CSA, TUV, UL | 3650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9G1212P4H091FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 3.72 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9G1224P1G01FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 12 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9G1224P4E01FAN AXIAL 120X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 48.0dB(A) | 8.88 W | CSA, TUV, UL | 3650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9G1248P1G04FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 12 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
