直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-08025DHJW12FAN AXIAL 80X25MM 24VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 52.5 CFM (1.47m³/min) | 0.265 in H2O (66.0 Pa) | Hydrodynamic | 0.189 lb (85.73 g) | Tubeaxial | - | 25.00mm | 40.8dB(A) | 3.6 W | CE, cURus, TUV | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

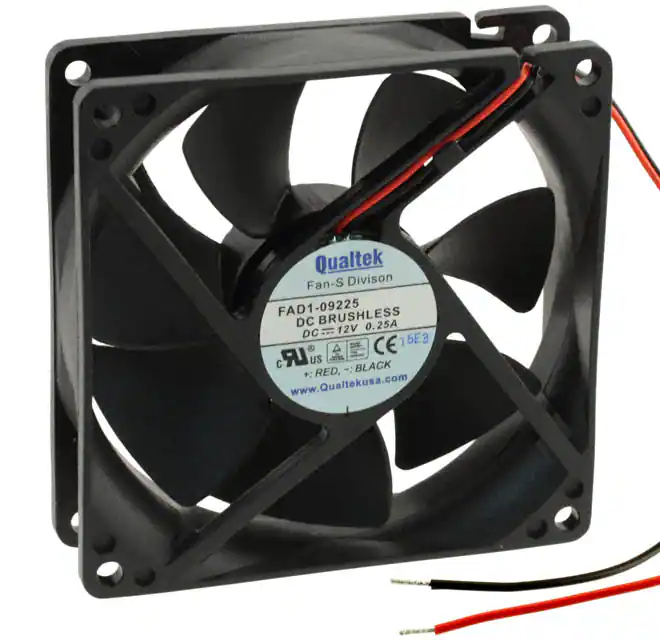

FAD1-09225CHAW12FAN AXIAL 92.5X25MM 12VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-09225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 30.3 CFM (0.848m³/min) | 0.034 in H2O (8.5 Pa) | Hydrodynamic | 0.203 lb (92.08 g) | Tubeaxial | - | 25.00mm | 19.1dB(A) | 600 mW | CE, cURus, TUV | 1600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-12032CHJW12FAN AXIAL 120X32.3MM 12VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-12032 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 133.4 CFM (3.74m³/min) | 0.317 in H2O (78.9 Pa) | Hydrodynamic | 0.469 lb (212.73 g) | Tubeaxial | - | 32.30mm | 48.4dB(A) | 6.12 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-12032EHJW12FAN AXIAL 120X32.3MM 48VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-12032 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 133.4 CFM (3.74m³/min) | 0.317 in H2O (78.9 Pa) | Hydrodynamic | 0.469 lb (212.73 g) | Tubeaxial | - | 32.30mm | 48.4dB(A) | 7.68 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-12038DHHW12FAN AXIAL 120X38.5MM 24VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-12038 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 105.5 CFM (2.95m³/min) | 0.265 in H2O (66.0 Pa) | Hydrodynamic | 0.518 lb (234.96 g) | Tubeaxial | - | 38.50mm | 46.7dB(A) | 6.24 W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025BBMW12FAN AXIAL 60X25MM BALL 5VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-06025 | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 17.9 CFM (0.501m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | - | 25.00mm | 27.9dB(A) | 850 mW | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-08015BHMW12FAN AXIAL 80X15MM 5VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-08015 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | Hydrodynamic | 0.137 lb (62.14 g) | Tubeaxial | - | 15.00mm | 24.9dB(A) | 650 mW | CE, cURus, TUV | 2440 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08015DHMW12FAN AXIAL 80X15MM 24VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-08015 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | Hydrodynamic | 0.137 lb (62.14 g) | Tubeaxial | - | 15.00mm | 24.9dB(A) | 960 mW | CE, cURus, TUV | 2440 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-12038EBJW32FAN AXIAL 120X38.5MM 48VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-12038 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Ball | 0.656 lb (297.56 g) | Tubeaxial | - | 38.50mm | 48.0dB(A) | 10.56 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-12038EHMW32FAN AXIAL 120X38.5MM 48VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-12038 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 96.3 CFM (2.70m³/min) | 0.228 in H2O (56.8 Pa) | Hydrodynamic | 0.656 lb (297.56 g) | Tubeaxial | - | 38.50mm | 45.0dB(A) | 6.24 W | CE, cURus, TUV | 2540 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
