直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-02510BAMW11FAN AXIAL 25X10MM 5VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-02510 | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 2.1 CFM (0.059m³/min) | 0.150 in H2O (37.4 Pa) | 1 Ball/1 Sleeve | 0.018 lb (8.16 g) | Tubeaxial | - | 10.00mm | 23.0dB(A) | 500 mW | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-02510CAAW11FAN AXIAL 25X10MM 12VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-02510 | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 1.3 CFM (0.036m³/min) | 0.065 in H2O (16.2 Pa) | 1 Ball/1 Sleeve | 0.018 lb (8.16 g) | Tubeaxial | - | 10.00mm | 12.5dB(A) | 480 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-02510CALW11FAN AXIAL 25X10MM 12VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-02510 | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 1.6 CFM (0.045m³/min) | 0.090 in H2O (22.4 Pa) | 1 Ball/1 Sleeve | 0.018 lb (8.16 g) | Tubeaxial | - | 10.00mm | 18.3dB(A) | 840 mW | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-02510CAMW11FAN AXIAL 25X10MM 12VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-02510 | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 2.1 CFM (0.059m³/min) | 0.150 in H2O (37.4 Pa) | 1 Ball/1 Sleeve | 0.018 lb (8.16 g) | Tubeaxial | - | 10.00mm | 23.0dB(A) | 720 mW | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025BBLW12FAN AXIAL 60X25MM BALL 5VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 60mm L x 60mm H | 13.2 CFM (0.370m³/min) | 0.063 in H2O (15.7 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | - | 25.00mm | 18.1dB(A) | 400 mW | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-06025BBHW12FAN AXIAL 60X25MM BALL 5VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 60mm L x 60mm H | 24.3 CFM (0.680m³/min) | 0.207 in H2O (51.6 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | - | 25.00mm | 36.3dB(A) | 1.75 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-06025CBLW12FAN AXIAL 60X25MM 12VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 13.2 CFM (0.370m³/min) | 0.063 in H2O (15.7 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | - | 25.00mm | 18.1dB(A) | 480 mW | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-06025CBMW12FAN AXIAL 60X25MM 12VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 17.9 CFM (0.501m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | - | 25.00mm | 27.9dB(A) | 960 mW | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-06025CBHW12FAN AXIAL 60X25MM 12VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-06025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 24.3 CFM (0.680m³/min) | 0.207 in H2O (51.6 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | - | 25.00mm | 36.3dB(A) | 1.56 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

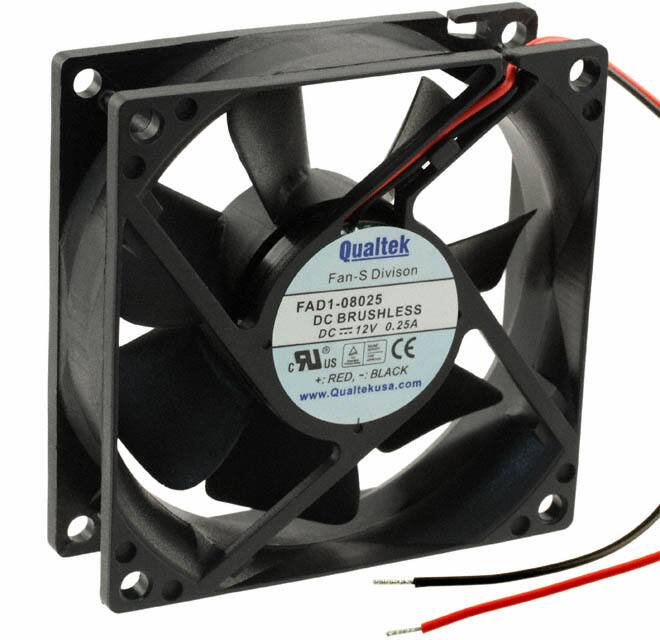

FAD1-08025CBLW11FAN AXIAL 80X25MM 12VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-08025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 27.0 CFM (0.756m³/min) | 0.072 in H2O (17.9 Pa) | Ball | 0.189 lb (85.73 g) | Tubeaxial | - | 25.00mm | 22.3dB(A) | 960 mW | CE, cURus, TUV | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
