直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD4010-12HSSFAN AXIAL 40X10.5MM 12VDC WIRE Orion Fans |
0 | - |
|
数据表 |
OD4010 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 33.2dB | 720 mW | CE, cURus, TUV, UR | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD4010-24LBFAN AXIAL 40X10.5MM 24VDC WIRE Orion Fans |
0 | - |
|
数据表 |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 4.7 CFM (0.132m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 20.1dB | 730 mW | CE, cURus, TUV, UR | 4000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
OD2510-24HBThermal Products Orion Fans |
0 | - |
|
数据表 |
OD2510 | Bulk | Active | 24VDC | Square - 25mm L x 25mm H | 2.7 CFM (0.076m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.00mm | 29.2dB(A) | 1.6 W | CE, cURus, TUV, UR | 11500 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
OD4028-24HBXEFAN AXIAL 40X28MM 24VDC WIRE Orion Fans |
0 | - |
|
数据表 |
OD4028 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 31.5 CFM (0.882m³/min) | 3.000 in H2O (747.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 28.00mm | 64.2dB(A) | 10.8 W | CE, cURus, TUV, UR | 22750 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|

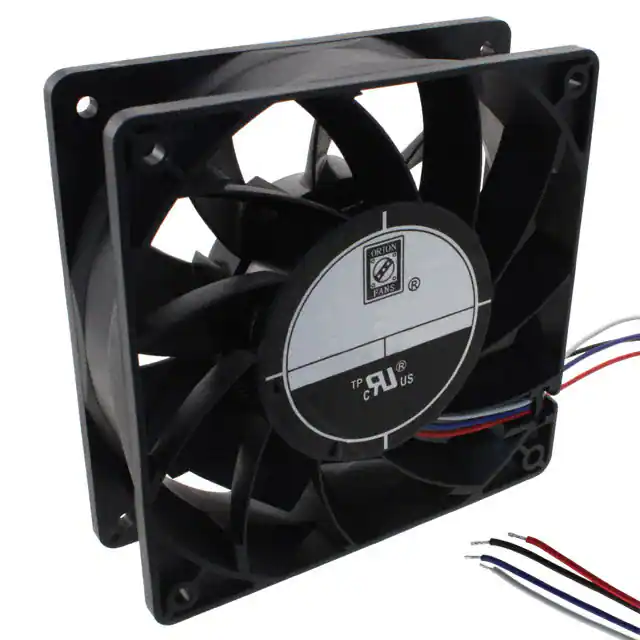

OD1238-24HBVXC10AFAN AXIAL 120X38MM 24VDC WIRE Orion Fans |
0 | - |
|
数据表 |
OD1238 VA | Box | Active | 24VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB | 40.8 W | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
OD254AP-24HB10AFAN AXIAL 254X89MM 24VDC WIRE Orion Fans |
0 | - |
|
数据表 |
OD254 | Bulk | Active | 24VDC | Round - 254mm Dia | 850.0 CFM (23.80m³/min) | 0.830 in H2O (206.7 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 89.00mm | 64.0dB | 64 W | cURus, TUV | 2500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | - |
|
ODB5115-12LBFAN BLOWER 51.11X15MM 12VDC WIRE Orion Fans |
0 | - |
|
数据表 |
ODB5115 | Bulk | Active | 12VDC | Rectangular/Rounded - 51.11mm L x 47.76mm H | 2.4 CFM (0.067m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.059 lb (26.76 g) | Blower | - | 15.00mm | 32.0dB | 840 mW | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD172SAP-12MBXCIP68FAN AXIAL 172X51.6MM 12VDC WIRE Orion Fans |
0 | - |
|
数据表 |
OD172SAP XC | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 152mm H | 263.0 CFM (7.36m³/min) | 0.820 in H2O (204.3 Pa) | Ball | 1.3 lbs (600.0 g) | Tubeaxial | Auto Restart | 51.60mm | 57.0dB | 13.2 W | CE, cURus, TUV, UR | 3500 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
OD9225-12HBIP55FAN AXIAL 92.5X25MM 12VDC WIRE Orion Fans |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 60.0 CFM (1.68m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | - | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

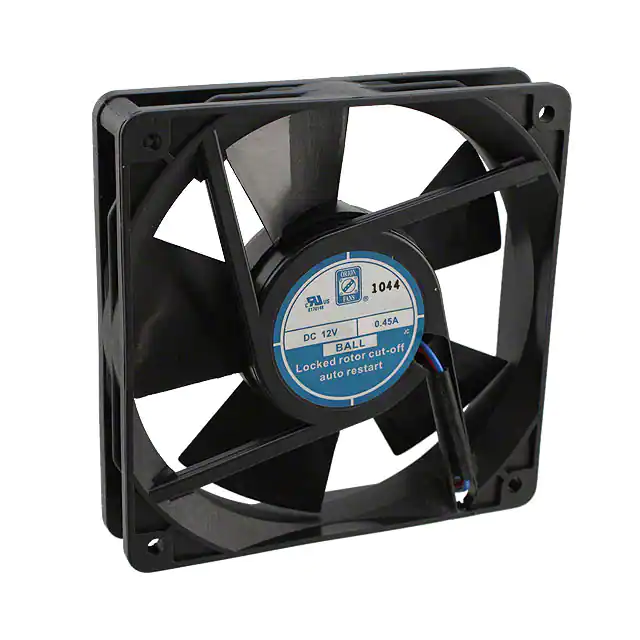

OD1225-12HTBFAN AXIAL 120X25MM 12VDC TERM Orion Fans |
5 | - |
|
数据表 |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.341 lb (154.67 g) | Tubeaxial | - | 25.00mm | 42.0dB(A) | 5.4 W | cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
