直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4392MFAN AXIAL 119X32MM 12VDC TERM |
0 | - |
|
数据表 |
4300 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 82.0 CFM (2.30m³/min) | - | Ball | 0.5 lb (226.8 g) | Tubeaxial | - | 32.00mm | 39.0dB(A) | 2.6 W | CE, CSA, UL, VDE | - | - | 2 Terminals | - |
|

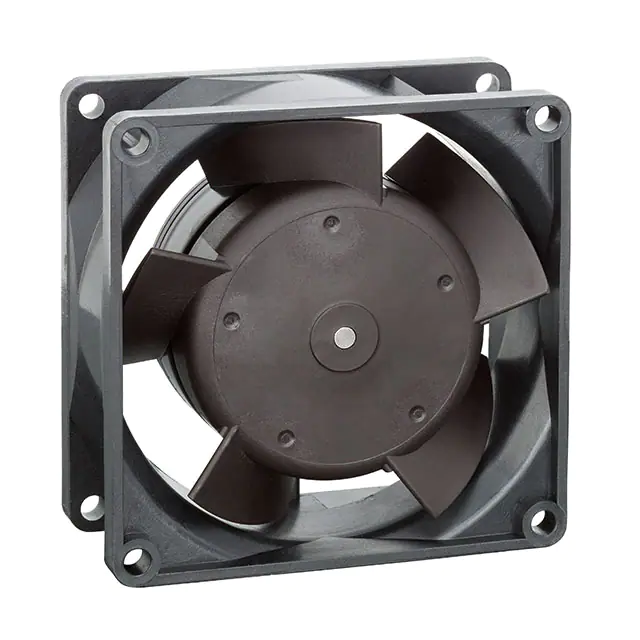

8314SFAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
8300 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | - | Ball | 0.38 lb (172.37 g) | Tubeaxial | - | 32.00mm | 36.0dB(A) | 2.5 W | - | - | - | 2 Wire Leads | - |
|
|
8398FAN AXIAL 80X32MM 48VDC TERM |
0 | - |
|
数据表 |
8300 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | - | Ball | 0.38 lb (172.37 g) | Tubeaxial | - | 32.00mm | 36.0dB(A) | 2.6 W | - | - | - | 2 Terminals | - |
|

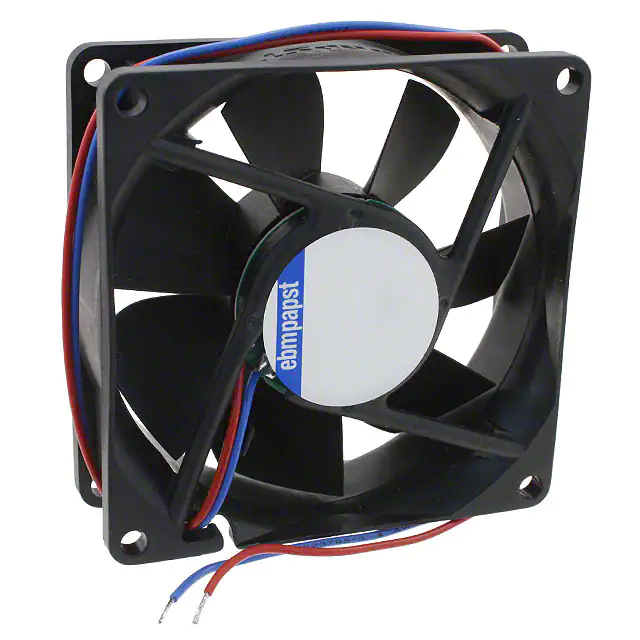

8412NMLFAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
8400N | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 27.0 CFM (0.756m³/min) | - | Ball | 0.31 lb (140.61 g) | Tubeaxial | - | 25.40mm | 21.0dB(A) | 900 mW | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
W2G130-AA31-01FAN AXIAL 150X55MM 12VDC WIRE |
0 | - |
|
数据表 |
W2G130 | Box | Obsolete | 12VDC | Round - 150mm Dia | 203.0 CFM (5.68m³/min) | - | Ball | 2.2 lbs (997.9 g) | Tubeaxial | - | 55.00mm | 51.0dB(A) | 14 W | - | - | - | 2 Wire Leads | - |
|
FBK04F12USFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
FBK | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 0.088 lb (39.92 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 42.0dB(A) | 2.04 W | UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

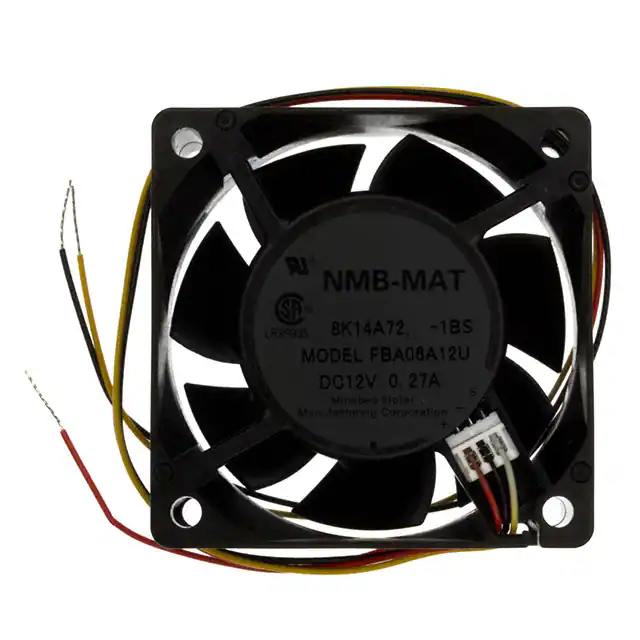

FBA06A12U1BSFAN AXIAL 60X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.5 CFM (0.574m³/min) | 0.233 in H2O (58.0 Pa) | Hydro-wave (HWB) | 0.198 lb (89.81 g) | Tubeaxial | Locked Rotor Sensor | 25.50mm | 58.0dB | 2.52 W | CSA, UL | 4550 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FBA06T12HSFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 16.6 CFM (0.465m³/min) | 0.187 in H2O (46.6 Pa) | Hydro-wave (HWB) | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 32.0dB | 1.74 W | CSA, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

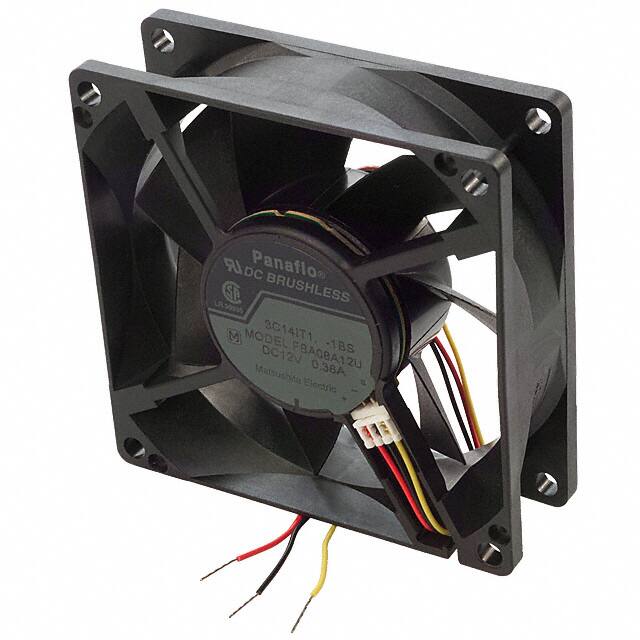

FBA08A12U1BSFAN AXIAL 80X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 46.9 CFM (1.31m³/min) | 0.188 in H2O (46.8 Pa) | Hydro-wave (HWB) | 0.22 lb (99.79 g) | Tubeaxial | Locked Rotor Sensor | 25.50mm | 38.2dB | 3.24 W | CSA, UL | 3450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

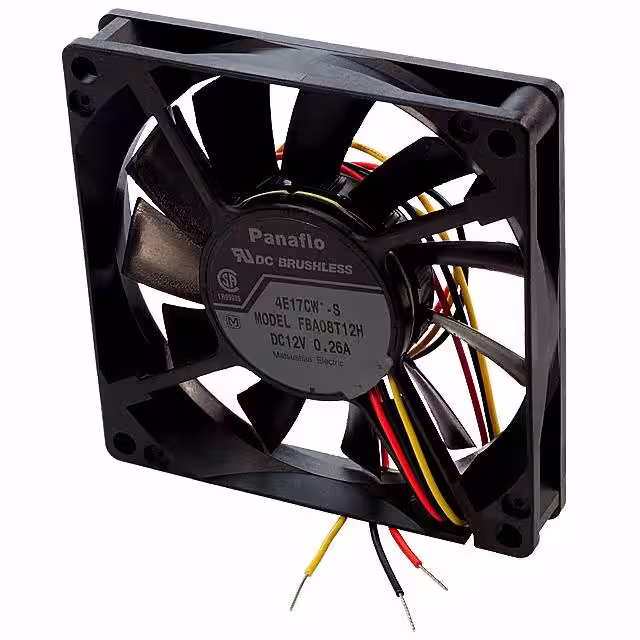

FBA08T12HSFAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 33.5 CFM (0.938m³/min) | 0.126 in H2O (31.4 Pa) | Hydro-wave (HWB) | 0.154 lb (69.85 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 34.0dB | 2.4 W | CSA, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DV4112/2NP-201FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
DV4100 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 165.0 CFM (4.62m³/min) | 1.586 in H2O (395.0 Pa) | Ball | 1 lb (453.6 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 61.0dB(A) | 23 W | CE, UL, VDE | 6000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|

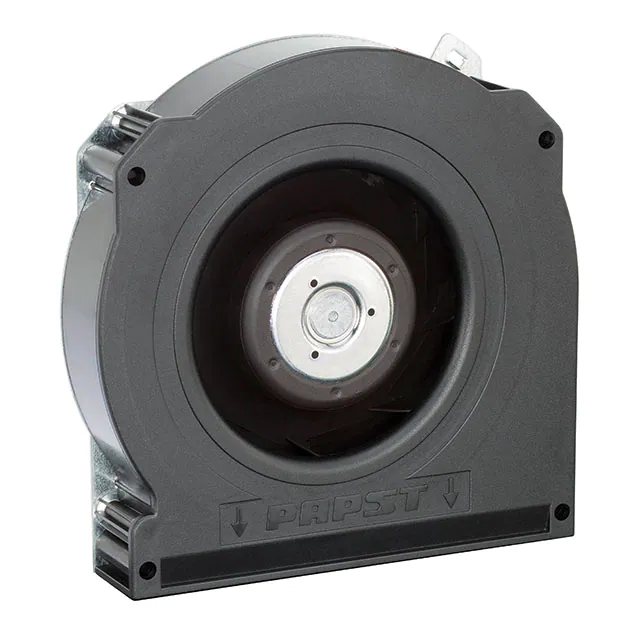

RLF100-11/18/2HPFAN BLOWER CF 127X25.4MM 48VDC |
0 | - |
|
数据表 |
RLF100 | Bulk | Active | 48VDC | Square/Rounded - 127mm L x 127mm H | 37.7 CFM (1.06m³/min) | 2.710 in H2O (675.0 Pa) | Ball | 0.71 lb (322.05 g) | Blower, Centrifugal | PWM Control, Speed Sensor (Tach) | 25.40mm | 60.0dB(A) | 17 W | CCC, CE, CSA, UL, VDE | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP20 |
|

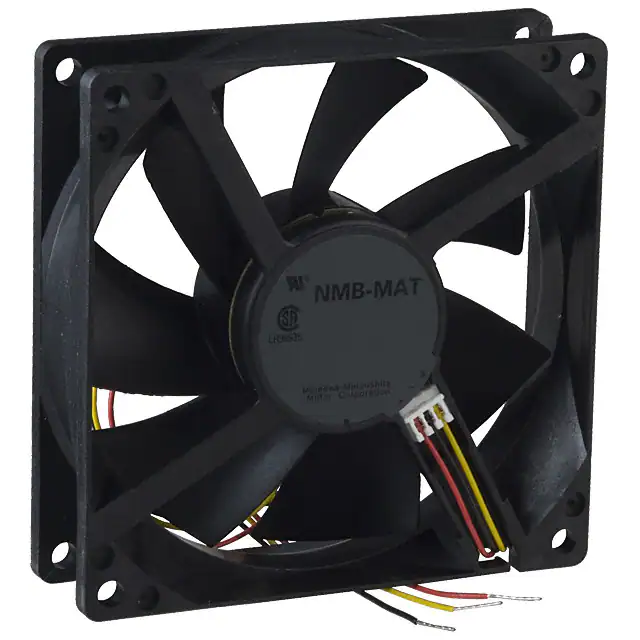

FBA09A12U1BXFAN AXIAL 92X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 68.8 CFM (1.93m³/min) | 0.197 in H2O (49.0 Pa) | Hydro-wave (HWB) | 0.243 lb (110.22 g) | Tubeaxial | Speed Sensor (Tach) | 25.50mm | 43.0dB | 5.16 W | CSA, UL | 3450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FBA06T12LSFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 12.0 CFM (0.336m³/min) | 0.110 in H2O (27.4 Pa) | Hydro-wave (HWB) | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 24.0dB | 1.06 W | CSA, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FBA08T12LSFAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 21.9 CFM (0.613m³/min) | 0.061 in H2O (15.2 Pa) | Hydro-wave (HWB) | 0.154 lb (69.85 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 23.0dB | 950 mW | CSA, UL | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

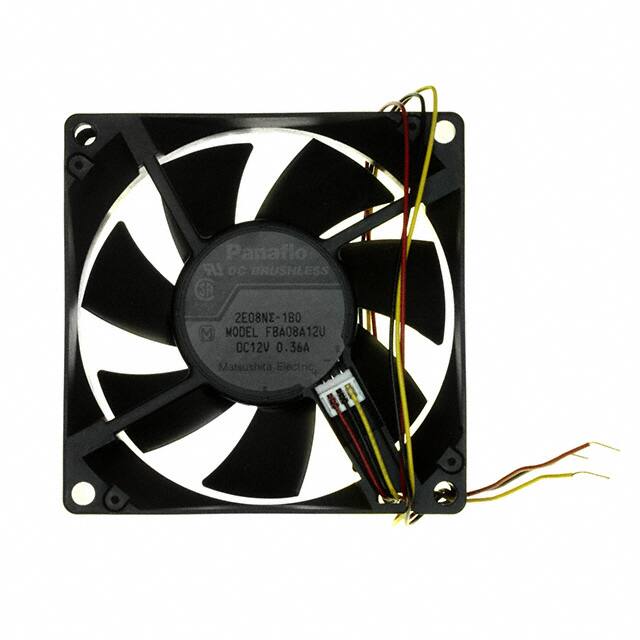

FBA08A12U1BOFAN AXIAL 80X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 46.9 CFM (1.31m³/min) | 0.188 in H2O (46.8 Pa) | Hydro-wave (HWB) | 0.22 lb (99.79 g) | Tubeaxial | Locked Rotor Sensor | 25.50mm | 32.8dB | 3.24 W | CSA, UL | 3450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FBA09A12H1BSFAN AXIAL 92X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Sensor | 25.50mm | 35.0dB | 2.7 W | CSA, UL | 2950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FBA09A24U1AFAN AXIAL 92X25.5MM 24VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 48.0 CFM (1.34m³/min) | 0.197 in H2O (49.0 Pa) | Hydro-wave (HWB) | 0.243 lb (110.22 g) | Tubeaxial | - | 25.50mm | 43.0dB | 2.64 W | CSA, UL | 3450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FBA08T24HSFAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 33.5 CFM (0.938m³/min) | 0.126 in H2O (31.4 Pa) | Hydro-wave (HWB) | 0.154 lb (69.85 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 34.0dB | 2.64 W | CSA, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
1004KL-01W-B50-B00FAN AXIAL 25X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
1004KL | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 2.0 CFM (0.056m³/min) | 0.203 in H2O (50.6 Pa) | Ball | 0.017 lb (7.71 g) | Tubeaxial | - | 10.00mm | 25.0dB | 625 mW | CE, CSA, UL, VDE | 11000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
