直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAL6F12LHSFAN BLOWER 109X28.1MM 12VDC WIRE |
0 | - |
|
数据表 |
FAL-6F | - | Obsolete | 12VDC | Rectangular/Rounded - 109mm L x 111.4mm H | 23.0 CFM (0.644m³/min) | 0.453 in H2O (112.8 Pa) | Hydro-wave (HWB) | 0.551 lb (249.93 g) | Blower | Locked Rotor Sensor | 28.10mm | 45.0dB | 6 W | CSA, UL | 2550 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
FBA06A12L1BXFAN AXIAL 60X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.122 in H2O (30.4 Pa) | Hydro-wave (HWB) | 0.198 lb (89.81 g) | Tubeaxial | Speed Sensor (Tach) | 25.50mm | 24.0dB | 1.2 W | CSA, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

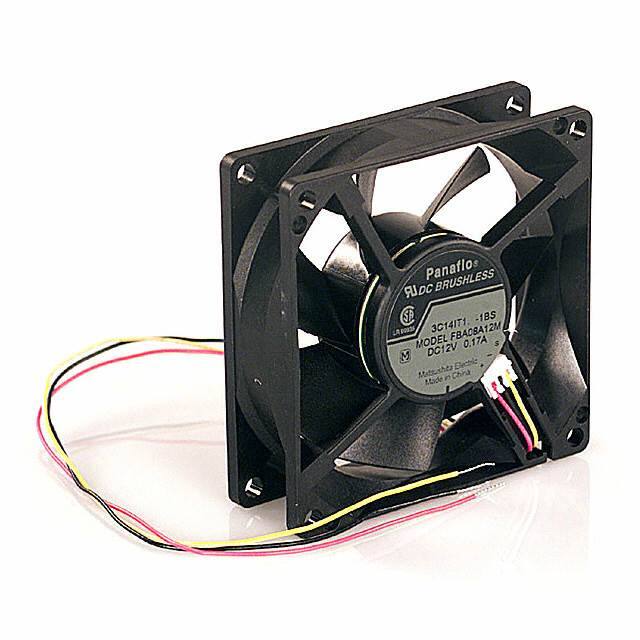

FBA08A12M1BSFAN AXIAL 80X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | 0.22 lb (99.79 g) | Tubeaxial | Locked Rotor Sensor | 25.50mm | 28.0dB | 1.49 W | CSA, UL | 2450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

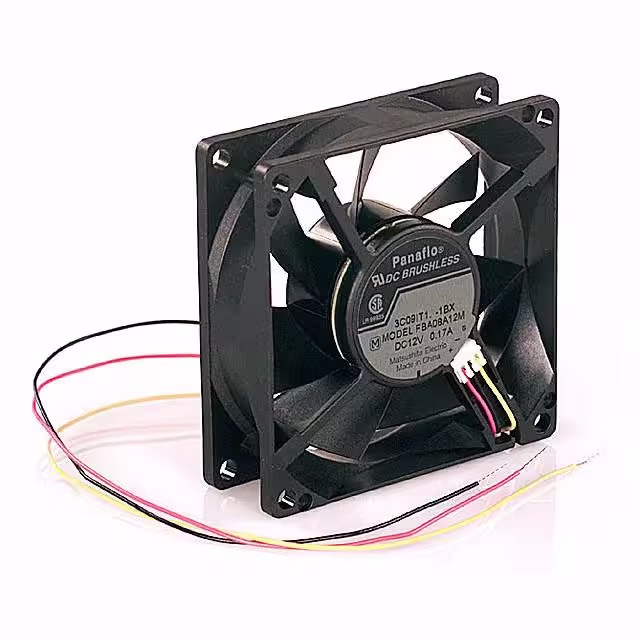

FBA08A12M1BXFAN AXIAL 80X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | 0.22 lb (99.79 g) | Tubeaxial | Speed Sensor (Tach) | 25.50mm | 28.0dB | 1.49 W | CSA, UL | 2450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FBA09A12H1BOFAN AXIAL 92X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Sensor | 25.50mm | 35.0dB | 2.7 W | CSA, UL | 2950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FBA09A12L1BXFAN AXIAL 92X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 42.7 CFM (1.20m³/min) | 0.102 in H2O (25.5 Pa) | Hydro-wave (HWB) | 0.243 lb (110.22 g) | Tubeaxial | Speed Sensor (Tach) | 25.50mm | 27.0dB | 1.32 W | CSA, UL | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FBA09A12U1BOFAN AXIAL 92X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 68.8 CFM (1.93m³/min) | 0.197 in H2O (49.0 Pa) | Hydro-wave (HWB) | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Sensor | 25.50mm | 43.0dB | 5.16 W | CSA, UL | 3450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FBA12G12H1BSFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | 0.595 lb (269.89 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 41.5dB | 4.44 W | CSA, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FBA12G24H1BXFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | 0.595 lb (269.89 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 41.5dB | 4.8 W | CSA, UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

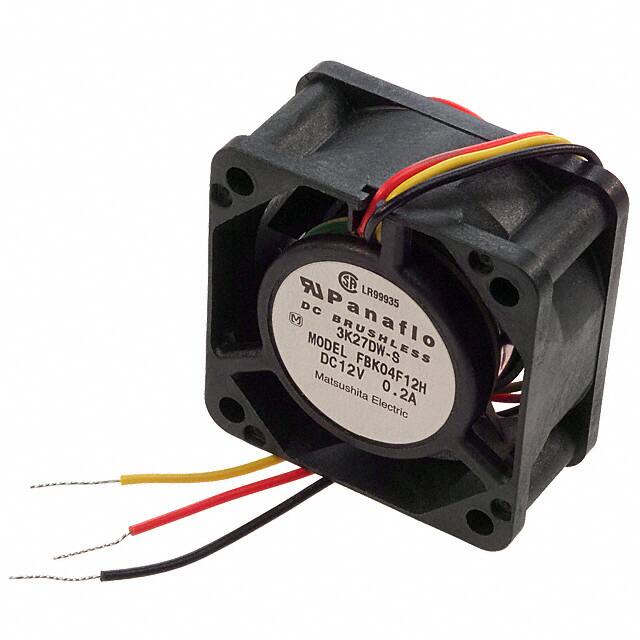

FBK04F12HSFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
FBK | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 6.7 CFM (0.188m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.088 lb (39.92 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 33.0dB(A) | 1.8 W | UL | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

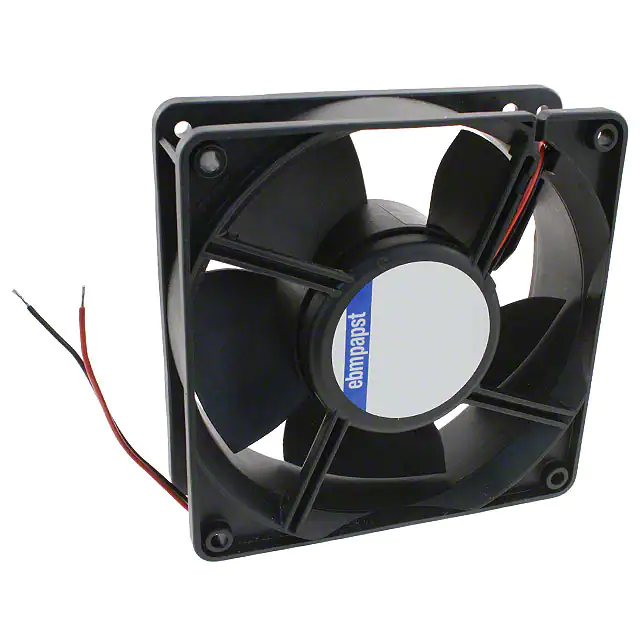

4214LFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4200 | - | Obsolete | 24VDC | Square - 119mm L x 119mm H | 51.0 CFM (1.43m³/min) | - | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 38.00mm | 29.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 1600 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
FBA09A24U1AZFAN AXIAL 92X25.5MM 24VDC WIRE |
0 | - |
|
数据表 |
FBA | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 48.0 CFM (1.34m³/min) | 0.197 in H2O (49.0 Pa) | Hydro-wave (HWB) | 0.243 lb (110.22 g) | Tubeaxial | - | 25.50mm | 43.0dB | 2.64 W | CSA, UL | 3450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
3312SFAN AXIAL 92X32MM 12VDC WIRE |
0 | - |
|
数据表 |
3300 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 47.0 CFM (1.32m³/min) | - | Ball | 0.44 lb (199.58 g) | Tubeaxial | - | 32.00mm | 37.0dB(A) | 1.4 W | CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
|
3394FAN AXIAL 92X32MM 24VDC TERM |
0 | - |
|
数据表 |
3300 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 47.0 CFM (1.32m³/min) | - | Ball | 0.44 lb (199.58 g) | Tubeaxial | - | 32.00mm | 37.0dB(A) | 2.4 W | CSA, UL, VDE | - | - | 2 Terminals | - |
|
|
4212/12FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
4200 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 97.0 CFM (2.72m³/min) | - | Ball | 0.63 lb (285.76 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 4.3 W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
|
4212/2FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
4200 | - | Obsolete | 12VDC | Square - 119mm L x 119mm H | 97.0 CFM (2.72m³/min) | - | Ball | 0.63 lb (285.76 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 4.3 W | CE, CSA, UL, VDE | - | - | 3 Wire Leads | - |
|
|
4214GFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4200 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 97.0 CFM (2.72m³/min) | - | Sintec | 0.639 lb (289.85 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 4.3 W | CE, CSA, UL, VDE | 3050 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

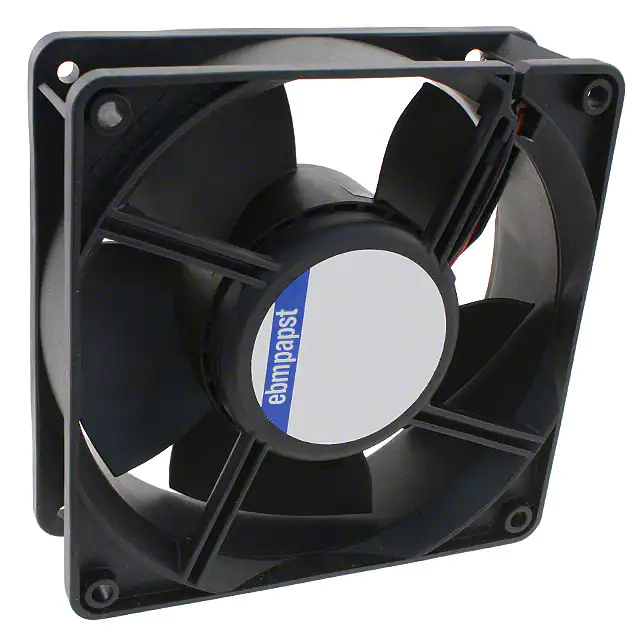

4298FAN AXIAL 119X38MM 48VDC TERM |
0 | - |
|
数据表 |
4200 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 97.0 CFM (2.72m³/min) | - | Ball | 0.63 lb (285.76 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 4.3 W | CE, CSA, UL, VDE | - | - | 2 Terminals | - |
|
|
4312MVFAN AXIAL 119X32MM 12VDC WIRE |
0 | - |
|
数据表 |
4300V | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 82.4 CFM (2.31m³/min) | - | Ball | 0.485 lb (219.99 g) | Tubeaxial | - | 32.00mm | 39.0dB(A) | 3 W | CSA, UL, VDE | 2300 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
4312VFAN AXIAL 119X32MM 12VDC WIRE |
0 | - |
|
数据表 |
4300V | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 50.0 CFM (1.40m³/min) | - | Ball | 0.49 lb (222.26 g) | Tubeaxial | - | 32.00mm | 29.0dB(A) | 1.8 W | CSA, UL, VDE | - | - | 2 Wire Leads | - |
