直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WFA0924G2002FAN AXIAL 92X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 109.5 CFM (3.07m³/min) | 1.530 in H2O (381.1 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | Locked Rotor Protection | 32.00mm | 63.0dB(A) | 13.9 W | cURus, TUV | 9600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | Oil Resistant |
|
6448MFAN AXIAL 172X50.8MM 48VDC TERM |
0 | - |
|
数据表 |
6400 | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 206.0 CFM (5.77m³/min) | - | Ball | 1.7 lbs (771.1 g) | Tubeaxial | - | 50.80mm | 52.0dB(A) | 11.5 W | CE, CSA, UL, VDE | 2850 RPM | -4 ~ 162°F (-20 ~ 72°C) | 2 Terminals | - |
|
|
9WFA0924G2D001FAN AXIAL 92X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 109.5 CFM (3.07m³/min) | 1.530 in H2O (381.1 Pa) | Ball | 0.452 lb (205.02 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 63.0dB(A) | 13.9 W | cURus, TUV | 9600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|
9GT0612G4D001FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60T | Box | Active | 12VDC | Square - 60mm L x 60mm H | 44.5 CFM (1.25m³/min) | 0.970 in H2O (241.6 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 52.0dB(A) | 6.72 W | CSA, TUV, UL | 10000 RPM | -40 ~ 185°F (-40 ~ 85°C) | 3 Wire Leads | - |
|
|
9GT0612G4001FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60T | Box | Active | 12VDC | Square - 60mm L x 60mm H | 44.5 CFM (1.25m³/min) | 0.970 in H2O (241.6 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 52.0dB(A) | 6.72 W | CSA, TUV, UL | 10000 RPM | -40 ~ 185°F (-40 ~ 85°C) | 3 Wire Leads | - |
|
|
9GT0624G4001FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60T | Box | Active | 24VDC | Square - 60mm L x 60mm H | 44.5 CFM (1.25m³/min) | 0.970 in H2O (241.6 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 52.0dB(A) | 6.72 W | CSA, TUV, UL | 10000 RPM | -40 ~ 185°F (-40 ~ 85°C) | 3 Wire Leads | - |
|
|
17000299AFAN AXIAL 175.5X107.2MM TD48B7 |
0 | - |
|
数据表 |
- | Box | Active | 48VDC | Square - 175.5mm L x 175.5mm H | 155.0 CFM (4.34m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 107.2mm | 65.2dB(A) | 33.6 W | CE, cUR, UL | 3275 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
19039823AFAN MOTOR IMP 101.6X55MM 12V TTL |
0 | - |
|
数据表 |
Diplomat | - | Active | 12VDC | Round - 118mm Dia | 116.0 CFM (3.25m³/min) | 1.730 in H2O (430.9 Pa) | Ball | 0.816 lb (370.13 g) | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 55.60mm | 67.0dB(A) | 33 W | CE, cUL, UL | 5900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
19031437AFAN AXIAL 171.5X50.8MM 48VDC |
0 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 54.3dB(A) | 22 W | - | 3475 RPM | - | 4 Wire Leads | - |
|
|
9GV1248B102120X38MM 48VDC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9TN48P1H07FAN 150X35MM 48VDC CENT TACH,PWM |
0 | - |
|
数据表 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
EFB1724VHGFAN AXIAL 172X50.8MM 24VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Active | 24VDC | Round - 172mm Dia | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection | 50.80mm | 57.0dB(A) | 23.28 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
RL65-21/12-2HPDC FLATPAK - RADIAL BLOWER |
0 | - |
|
数据表 |
RL65 | Bulk | Active | 12VDC | Rectangular/Rounded - 97mm L x 94mm H | 35.9 CFM (1.01m³/min) | 1.566 in H2O (390.1 Pa) | Ball | - | Blower, Centrifugal | Auto Restart, PWM Control, Speed Sensor (Tach) | 33.00mm | - | 19 W | CCC, CSA, CE, EAC, VDE, UL | 4900 RPM | -4 ~ 131°F (-20 ~ 55°C) | 4 Wire Leads | - |
|
|
109BF24MA2FAN BLOWER 120X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B120 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 21.5 CFM (0.602m³/min) | 0.441 in H2O (110.0 Pa) | Ball | 0.604 lb (273.97 g) | Blower | - | 32.00mm | 44.0dB(A) | 3.84 W | CSA, TUV, UL | 1900 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|

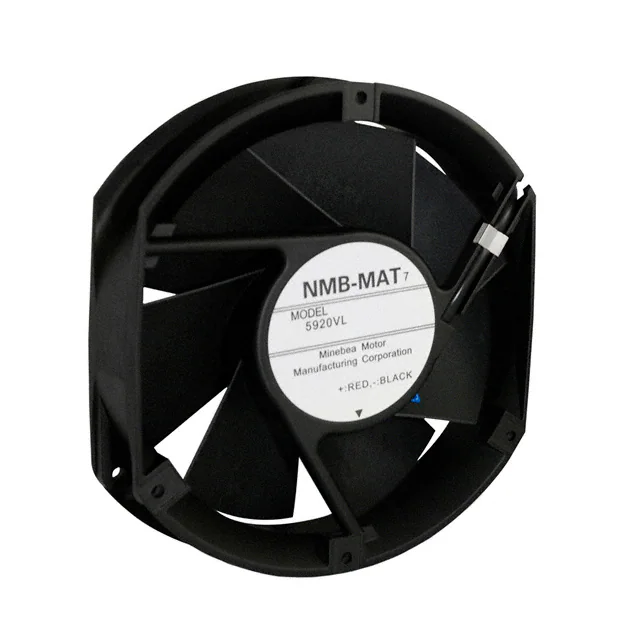

15050VA-48P-EA-00FAN AXIAL 172X50.8MM 48VDC WIRE |
0 | - |
|
数据表 |
5920VL | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 283.1 CFM (7.93m³/min) | 0.846 in H2O (210.7 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 50.80mm | 63.0dB(A) | 25 W | UL, VDE | 3750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
15050VA-24M-EA-00FAN AXIAL 172.7X50.8MM 24VDC |
0 | - |
|
数据表 |
15050VA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 254.3 CFM (7.12m³/min) | 0.663 in H2O (165.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 58.0dB | 19.2 W | - | 3350 RPM | - | 2 Wire Leads | - |
|
|
15050VA-24P-EA-00FAN AXIAL 172.7X50.8MM 24VDC |
0 | - |
|
数据表 |
15050VA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 282.5 CFM (7.91m³/min) | 0.930 in H2O (231.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 62.0dB | 26.4 W | - | 3750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
15050VA-48M-EA-00FAN AXIAL 172.7X50.8MM 48VDC |
0 | - |
|
数据表 |
15050VA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 254.3 CFM (7.12m³/min) | 0.663 in H2O (165.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 58.0dB | 18.3 W | - | 3350 RPM | - | 2 Wire Leads | - |
|
|
15050VA-48N-EA-00FAN AXIAL 172.7X50.8MM 48VDC |
0 | - |
|
数据表 |
15050VA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 261.3 CFM (7.32m³/min) | 0.735 in H2O (183.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 60.0dB | 21.6 W | - | 3500 RPM | - | 2 Wire Leads | - |
|
|
15050VA-24R-EA-00FAN AXIAL 172.7X50.8MM 24VDC |
0 | - |
|
数据表 |
15050VA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 68.0dB | 43.2 W | - | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
