直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS1751H12B1+6-FHRFAN AXIAL 171X51.5MM 12VDC WIRE |
0 | - |
|
数据表 |
MS1751-H | Bulk | Active | 12VDC | Rectangular/Rounded - 171mm L x 153mm H | 418.0 CFM (11.70m³/min) | 1.640 in H2O (408.5 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.50mm | 71.0dB(A) | - | - | 5500 RPM | - | 4 Wire Leads | - |
|
|
MS1751L24B1+6-FHRFAN AXIAL 171X51.5MM 24VDC WIRE |
0 | - |
|
数据表 |
MS1751-H | Bulk | Active | 24VDC | Rectangular/Rounded - 171mm L x 153mm H | 184.4 CFM (5.16m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.50mm | 53.0dB(A) | - | - | 3000 RPM | - | 4 Wire Leads | - |
|
|
MS1751M24B1+6-FHRFAN AXIAL 171X51.5MM 24VDC WIRE |
0 | - |
|
数据表 |
MS1751-H | Bulk | Active | 24VDC | Rectangular/Rounded - 171mm L x 153mm H | 352.1 CFM (9.86m³/min) | 1.000 in H2O (249.1 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.50mm | 66.0dB(A) | - | - | 4500 RPM | - | 4 Wire Leads | - |
|
|
MS1751L48B1+6-FHRFAN AXIAL 171X51.5MM 48VDC WIRE |
0 | - |
|
数据表 |
MS1751-H | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 153mm H | 184.4 CFM (5.16m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.50mm | 53.0dB(A) | - | - | 3000 RPM | - | 4 Wire Leads | - |
|
|
MS1751M48B1+6-FHRFAN AXIAL 171X51.5MM 48VDC WIRE |
0 | - |
|
数据表 |
MS1751-H | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 153mm H | 352.1 CFM (9.86m³/min) | 1.000 in H2O (249.1 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.50mm | 66.0dB(A) | - | - | 4500 RPM | - | 4 Wire Leads | - |
|
|
MS1751H48B1+6-FHRFAN AXIAL 171X51.5MM 48VDC WIRE |
0 | - |
|
数据表 |
MS1751-H | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 153mm H | 418.0 CFM (11.70m³/min) | 1.640 in H2O (408.5 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.50mm | 71.0dB(A) | - | - | 5500 RPM | - | 4 Wire Leads | - |
|
|
15050VA-24R-EU-00FAN AXIAL 172.7X50.8MM 24VDC |
0 | - |
|
数据表 |
15050VA | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.80mm | 68.0dB | 43.2 W | - | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
15050VA-48R-EU-00FAN AXIAL 172.7X50.8MM 48VDC |
0 | - |
|
数据表 |
15050VA | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.80mm | 68.0dB | 43.2 W | - | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

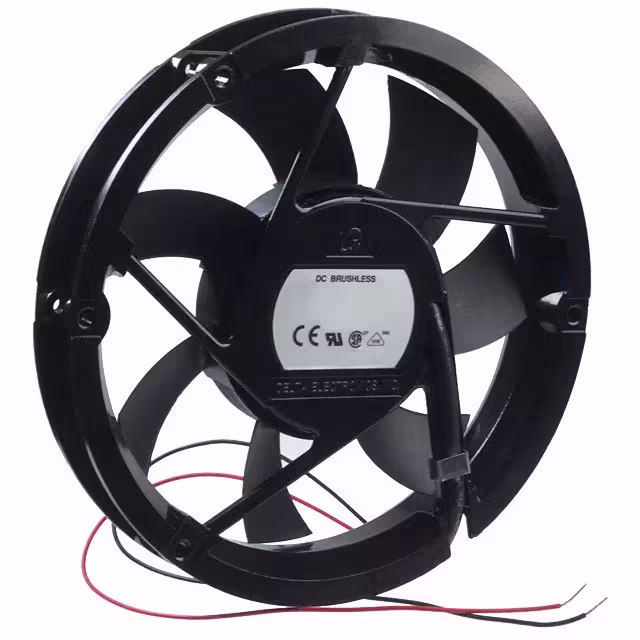

AFB1712H-AFAN AXIAL 172X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 12VDC | Round - 172mm Dia | 202.5 CFM (5.67m³/min) | 0.467 in H2O (116.3 Pa) | Ball | 0.948 lb (430.01 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 52.0dB(A) | 11.8 W | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB1712HH-AFAN AXIAL 172X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 12VDC | Round - 172mm Dia | 214.9 CFM (6.02m³/min) | 0.524 in H2O (130.5 Pa) | Ball | 0.948 lb (430.01 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 53.5dB(A) | 14.16 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
8452/2HPDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
8450 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 44.2 CFM (1.24m³/min) | - | Ball | - | Tubeaxial | - | 25.40mm | 38.0dB(A) | 2.5 W | - | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
17001182AFAN AXIAL 24VDC JQD24B3E2X-E3 |
0 | - |
|
数据表 |
Major | Bulk | Active | 24VDC | Square/Rounded - 171.4mm L x 171.4mm H | 235.0 CFM (6.58m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 54.3dB(A) | 24 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001183AFAN AXIAL 48VDC JQD48B3E2X-E3 |
0 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Square/Rounded - 171.4mm L x 171.4mm H | 235.0 CFM (6.58m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 54.3dB(A) | 22.1 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001184AFAN AXIAL 24VDC JQD24K4E2X-E3 |
0 | - |
|
数据表 |
Major | Bulk | Active | 24VDC | Square/Rounded - 171.4mm L x 171.4mm H | 285.0 CFM (7.98m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 58.9dB(A) | 43.2 W | CE, cUL, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001185AFAN AXIAL 48VDC JQD48K3E2X-E3 |
0 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Square/Rounded - 171.4mm L x 171.4mm H | 285.0 CFM (7.98m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 58.9dB(A) | 43.2 W | CE, cUL, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001187AFAN AXIAL 48VDC JQD48Z3E2X-E3 |
0 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Square/Rounded - 171.4mm L x 171.4mm H | 305.0 CFM (8.54m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 60.4dB(A) | 32.2 W | CE, cUL, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001189AFAN AXIAL 48VDC JQD48U3E2X-E3 |
0 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Square/Rounded - 171.4mm L x 171.4mm H | 332.0 CFM (9.30m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 64.0dB(A) | 40.8 W | CE, cUL, UL | 4830 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9LG0948H4D00192X25MM 48V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9LG0948H400192X25MM 48V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 92L | Box | Active | 48VDC | Square - 92mm L x 92mm H | 49.4 CFM (1.38m³/min) | 0.167 in H2O (41.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.20mm | 32.0dB(A) | 1.92 W | cURus, TUV | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

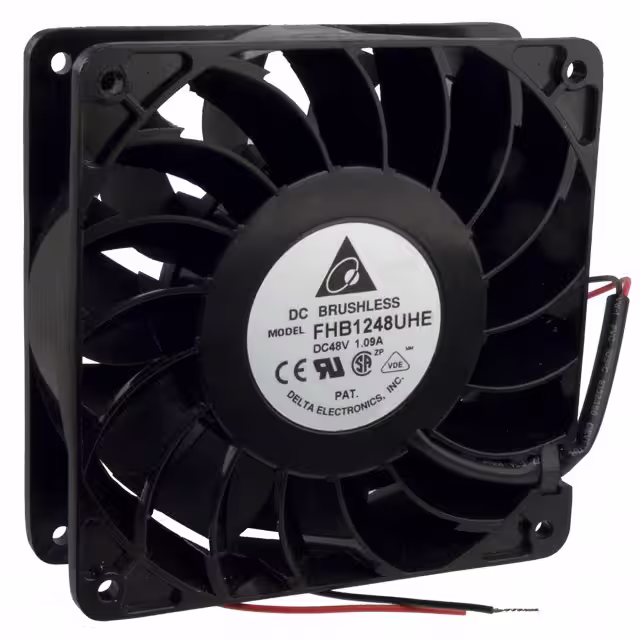

FHB1248UHEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FHB | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 223.2 CFM (6.25m³/min) | 1.241 in H2O (309.1 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 68.0dB(A) | 43.68 W | CE, CSA, UL, VDE | 5300 RPM | - | 2 Wire Leads | - |
