直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109L0624F40260X25MM 24V,LONG LIFE,RBLS DC 0 |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 24.0dB(A) | 1.2 W | CSA, TUV, UR | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
109L0612M40260X25MM 12V,LONG LIFE,RBLS DC 0 |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 20.0dB(A) | 720 mW | CSA, TUV, UR | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9LG0912G4002FAN AXIAL 92X25.2MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 68.2 CFM (1.91m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Protection | 25.20mm | 40.0dB(A) | 3.6 W | CSA, TUV, UL | 4400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

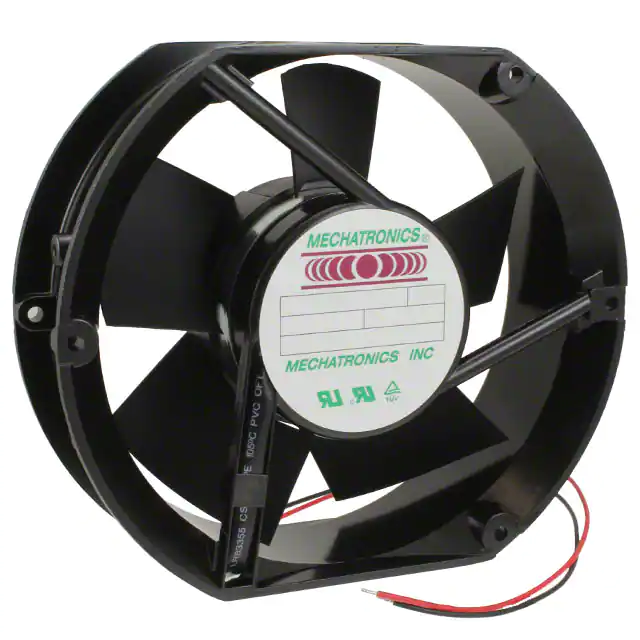

MA1751H48B-FSRFAN AXIAL 172X50.8MM 48VDC WIRE |
0 | - |
|
数据表 |
MA1751 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 243.6 CFM (6.82m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 1.7 lbs (771.1 g) | Tubeaxial | Thermal Overload Protector (TOP) | 50.80mm | 58.4dB(A) | - | cUL, TUV, UL | 2850 RPM | - | 2 Wire Leads | - |
|
|
MA1751L12B-FSRFAN AXIAL 172X50.8MM 12VDC WIRE |
0 | - |
|
数据表 |
MA1751 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 205.0 CFM (5.74m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 1.7 lbs (771.1 g) | Tubeaxial | Thermal Overload Protector (TOP) | 50.80mm | 54.5dB(A) | - | cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
|
MA1751U48B-FSRFAN AXIAL 172X50.8MM 48VDC WIRE |
0 | - |
|
数据表 |
MA1751 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 324.8 CFM (9.09m³/min) | 0.980 in H2O (244.0 Pa) | Ball | 1.7 lbs (771.1 g) | Tubeaxial | Thermal Overload Protector (TOP) | 50.80mm | 66.2dB(A) | - | cUL, TUV, UL | 3800 RPM | - | 2 Wire Leads | - |
|
|
109L0612F401FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1.08 W | CSA, TUV, UR | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L0612H401FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 28.0dB(A) | 1.32 W | CSA, TUV, UR | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L0624F401FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1.2 W | CSA, TUV, UL | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L0624S401FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 1.92 W | CSA, TUV, UL | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L0612F4D0160X25MM 12V,LONG LIFE,RBLS DC LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L0612H4D0160X25MM 12V,LONG LIFE,RBLS DC LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L0612M4D0160X25MM 12V,LONG LIFE,RBLS DC LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L0624H40160X25MM 24V,LONG LIFE,RBLS DC TA |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 28.0dB(A) | 1.44 W | CSA, TUV, UR | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L0612M40160X25MM 12V,LONG LIFE,RBLS DC TA |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 20.0dB(A) | 720 mW | CSA, TUV, UR | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L0624F4D0160X25MM 24V,LONG LIFE,RBLS DC LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L0624M40160X25MM 24V,LONG LIFE,RBLS DC TA |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 20.0dB(A) | 960 mW | CSA, TUV, UR | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L0624M4D0160X25MM 24V,LONG LIFE,RBLS DC LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L0624H4D0160X25MM 24V,LONG LIFE,RBLS DC LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L0612G4D0160X25MM 12V,LONG LIFE,RBLS DC LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
