直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.GN.jpg)
|

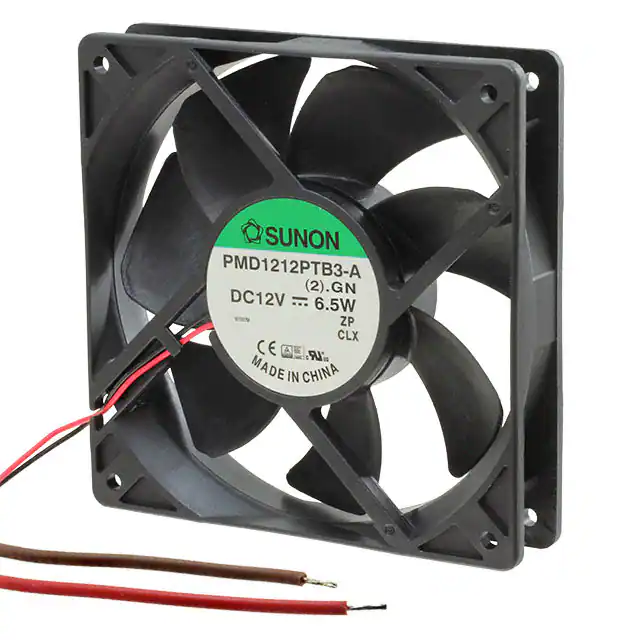

PMD1212PTB3-A.(2).GNFAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 0.485 lb (220.00 g) | Tubeaxial | Auto Restart | 25.00mm | 48.0dB(A) | 6.5 W | - | 3600 RPM | - | 2 Wire Leads | - |
|
9GA0824S2D00180X32MM 24V,LOW POWER DC LCKRTRS |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 32.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9GA0824A2D001180X32MM 24V,LOW POWER,RBLS DC LC |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 32.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
OD1238-48MBXEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 210.1 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 59.3dB(A) | 34 W | CE, cURus, TUV, UR | 4650 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|

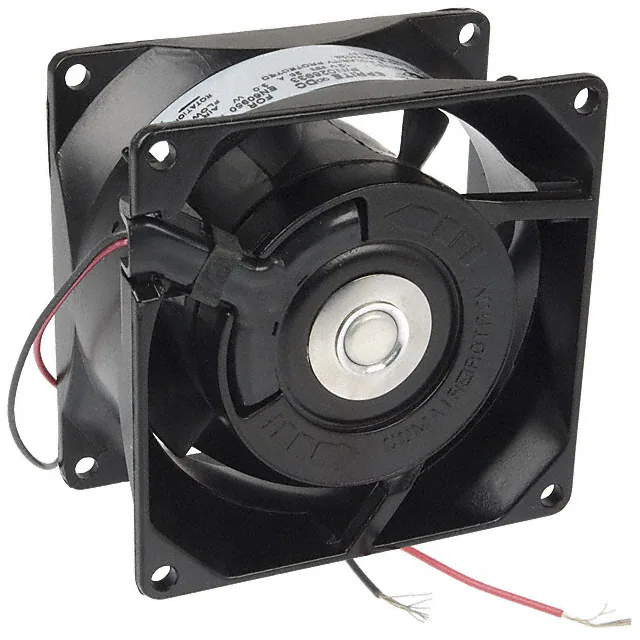

19028934AFAN AXIAL 79.8X41.8MM 24V SD24B1 |
0 | - |
|
数据表 |
Sprite | Bulk | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.80mm | 47.6dB(A) | 3 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9GA0824H162FAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 79.4 CFM (2.22m³/min) | 1.530 in H2O (381.1 Pa) | Ball | 0.353 lb (160.12 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 55.0dB(A) | 7.2 W | CSA, TUV, UL | 8250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9GA0824S162FAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 91.8 CFM (2.57m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 0.353 lb (160.12 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 59.0dB(A) | 11.28 W | CSA, TUV, UL | 9550 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
VF38561BX-1000U-A9TThermal Products |
0 | - |
|
数据表 |
VF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 31.2 CFM (0.874m³/min) | 4.600 in H2O (1145.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 56.00mm | 61.6dB(A) | 14.4 W | CCC, CE, cURus, TUV | 29300 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
|
ASFN40770FAN AXIAL 40X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
ASFN4 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart | 10.00mm | 29.0dB(A) | 1.05 W | CE, UR | 6500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
ASFN40771FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFN4 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart | 10.00mm | 29.0dB(A) | 1.2 W | CE, UR | 6500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
ASFN40791FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFN4 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 29.0dB(A) | 1.2 W | CE, UR | 6500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
ASFN42791FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFN4 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.150m³/min) | 0.137 in H2O (34.0 Pa) | Ball | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 25.0dB(A) | 1.2 W | CE, UR | 5500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
ASFN44770FAN AXIAL 40X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
ASFN4 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 4.3 CFM (0.120m³/min) | 0.097 in H2O (24.0 Pa) | Ball | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart | 10.00mm | 22.0dB(A) | 500 mW | CE, UR | 4500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
ASFN44771FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFN4 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 4.3 CFM (0.120m³/min) | 0.097 in H2O (24.0 Pa) | Ball | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart | 10.00mm | 22.0dB(A) | 1.08 W | CE, UR | 4500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
ASFN44791FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFN4 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 4.3 CFM (0.120m³/min) | 0.097 in H2O (24.0 Pa) | Ball | 0.034 lb (15.42 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.00mm | 22.0dB(A) | 1.08 W | CE, UR | 4500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
ASFN80371FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFN8 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.6 CFM (1.08m³/min) | 0.147 in H2O (36.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 32.5dB(A) | 3.96 W | CE, cURus | 2950 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
ASFN80372FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
ASFN8 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 39.0 CFM (1.09m³/min) | 0.147 in H2O (36.6 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | - | 25.00mm | 32.5dB(A) | 3.36 W | - | 2950 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
ASFN80391FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFN8 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.6 CFM (1.08m³/min) | 0.147 in H2O (36.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 32.5dB(A) | 3.96 W | CE, cURus | 2950 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
ASFN80392FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
ASFN8 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 38.6 CFM (1.08m³/min) | 0.147 in H2O (36.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 32.5dB(A) | 4.32 W | CE, cURus | 2950 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
ASFN82371FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFN8 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 31.5 CFM (0.882m³/min) | 0.097 in H2O (24.3 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 27.0dB(A) | 2.04 W | CE, cURus | 2400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
