直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV0912G10292X38MM 12V,GUIDE VANE DC 0 |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
DC1203824W2B-3T1FAN 120X38MM 24VDC TACH COMPUTER |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 37.2 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
9G1248F102FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 36.0dB(A) | 4.32 W | CSA, TUV, UL | 2280 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9G1248F1021FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 36.0dB(A) | 4.32 W | CSA, TUV, UL | 2280 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
PF97331B1-B00U-Q9912VDC FAN 97X33MM ALARM/PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square/Rounded - 97mm L x 97mm H | 44.2 CFM (1.24m³/min) | 3.390 in H2O (844.4 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor, PWM Control | 33.00mm | 58.0dB(A) | 19.2 W | CCC, CE, cURus, TUV, UKCA | 5400 RPM | - | 4 Wire Leads | - |
|
|
PF97331BX-B00U-Q9912VDC FAN 97X33MM ALARM/PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square/Rounded - 97mm L x 97mm H | 54.6 CFM (1.53m³/min) | 5.220 in H2O (1300.3 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor, PWM Control | 33.00mm | 63.2dB(A) | 42 W | CCC, CE, cURus, TUV, UKCA | 6800 RPM | - | 4 Wire Leads | - |
|
|
CFM-9238BF68-295-628-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.300 in H2O (572.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.8dB(A) | 22.8 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF92382B1-1000U-QDP24VDCFAN 92X38MM ALARM/PWM GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 145.3 CFM (4.07m³/min) | 1.200 in H2O (298.9 Pa) | Ball | - | Tubeaxial | PWM Control | 38.00mm | 60.6dB(A) | 20.4 W | CCC, CE, cURus, TUV, UKCA | 7200 RPM | - | 3 Wire Leads | - |
|
|
GF92382BX-1000U-QDP24VDCFAN 92X38MM ALARM/PWM GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 173.0 CFM (4.84m³/min) | 1.730 in H2O (430.9 Pa) | Ball | - | Tubeaxial | PWM Control | 38.00mm | 66.8dB(A) | 40.8 W | CCC, CE, cURus, TUV, UKCA | 9000 RPM | - | 3 Wire Leads | - |
|
|
GF92382BX-1000U-QEP24VDC FAN 92X38MM ALARM/PWM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 173.0 CFM (4.84m³/min) | 1.730 in H2O (430.9 Pa) | Ball | - | Tubeaxial | PWM Control | 38.00mm | 66.8dB(A) | 40.8 W | CCC, CE, cURus, TUV, UKCA | 9000 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF92382B1-1000U-QEP24VDC FAN 92X38MM ALARM/PWM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 145.3 CFM (4.07m³/min) | 1.200 in H2O (298.9 Pa) | Ball | - | Tubeaxial | PWM Control | 38.00mm | 60.6dB(A) | 20.4 W | CCC, CE, cURus, TUV, UKCA | 7200 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|

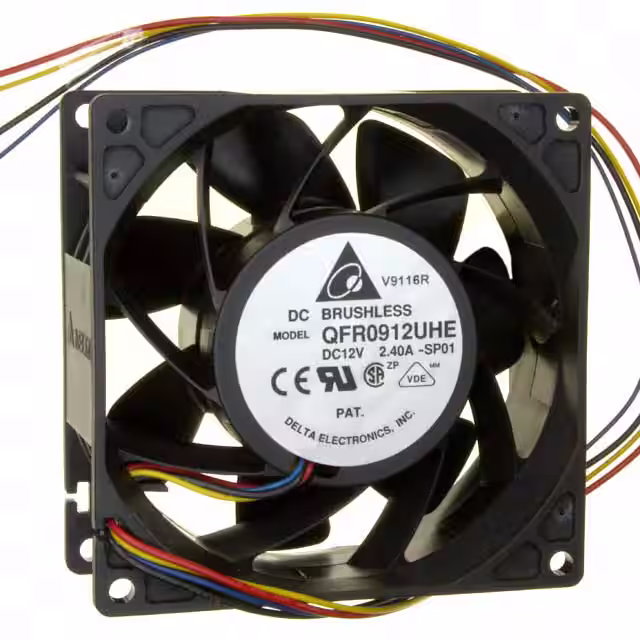

QFR0912UHE-SP01FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
QFR | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 131.8 CFM (3.69m³/min) | 1.466 in H2O (365.2 Pa) | Ball | 0.43 lb (195.04 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 19.2 W | CE, CSA, UL, VDE | 8300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
PMD4812PMB1-A (2).GN.IP55FAN AXIAL 120X38MM 48VDC |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMD4812PMB2-A (2).GN.IP55FAN AXIAL 120X38MM 48VDC |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
BF.jpg)
|
CFM-A225BF-163-615-22FAN AXIAL 120X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 201.4 CFM (5.64m³/min) | 1.160 in H2O (288.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 61.5dB(A) | 37.92 W | CE, cURus, TUV | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-A225BF-263-615-22FAN AXIAL 120X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-120BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 201.4 CFM (5.64m³/min) | 1.160 in H2O (288.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 61.5dB(A) | 29.76 W | CE, cURus, TUV | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-A225BF-153-577-22FAN AXIAL 120X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 169.5 CFM (4.75m³/min) | 0.820 in H2O (204.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 57.8dB(A) | 22.44 W | CE, cURus, TUV | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
9GV0912H1D01FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 64.0dB(A) | 42 W | CSA, TUV, UL | 8500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GV0912H10192X38MM 12V,GUIDE VANE DC TACH |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9GV0912G1D0192X38MM 12V,GUIDE VANE DC LCKRTR |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
