交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17002181ACRB190A1B2700 AC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 190mm Dia | 334.0 CFM (9.35m³/min) | 1.780 in H2O (443.4 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 68.50mm | 67.0dB(A) | 70.0W | CE, UL | 2700 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP44 |
|
|
17002183ACRB220A1B1650 AC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 220mm Dia | 341.0 CFM (9.55m³/min) | 0.890 in H2O (221.7 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 71.00mm | 55.0dB(A) | 48.00W | CE, UL | 1650 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
17002182ACRB220A1B2800 AC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 220mm Dia | 578.0 CFM (16.18m³/min) | 2.550 in H2O (635.2 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 71.00mm | 72.0dB(A) | 130W | CE, UL | 2800 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
17002184ACRB225A1B3000 AC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 225mm Dia | 754.0 CFM (21.11m³/min) | 2.880 in H2O (717.0 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 99.00mm | 65.0dB(A) | 180W | CE, UL | 3000 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
17002185ACRB225A1B1650 AC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 225mm Dia | 415.0 CFM (11.62m³/min) | 0.870 in H2O (216.7 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 99.00mm | 60.0dB(A) | 47.00W | CE, UL | 1650 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
UF250BMB12-H1C2AFAN HD AXIAL 250X80MM 115VAC |
0 | - |
|
数据表 |
UF250BMB-H1 | Bulk | Active | 115VAC | Square - 280mm L x 280mm H | 1130.0 CFM (31.64m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 6.1 lbs (2.8 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 80.00mm | 70.0dB(A) | 148W | CE, cUL, TUV, UL | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
|
17002187ACRB250B1B1650 AC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 250mm Dia | 415.0 CFM (11.62m³/min) | 0.960 in H2O (239.1 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 90.00mm | 65.0dB(A) | 50.0W | CE, UL | 1650 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
17002186ACRB250A1B3000 AC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 250mm Dia | 735.0 CFM (20.58m³/min) | 3.270 in H2O (814.5 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 99.00mm | 72.0dB(A) | 180W | CE, UL | 3000 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
17002188ACRB280A1B1550 AC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Box | Active | 110/120VAC | Round - 250mm Dia | 735.0 CFM (20.58m³/min) | 3.270 in H2O (814.5 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 99.00mm | 72.0dB(A) | 180W | CE, UL | 3000 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
ECO150AD235072220BLOWER ECO150AS 150WVOLTAGE RECT |
0 | - |
|
数据表 |
ECO | Bulk | Active | 230VAC | Rectangular/Rounded - 222mm L x 213mm H | 587.0 CFM (16.44m³/min) | - | Ball | - | Blower | PWM Control, Speed Sensor (Tach) | 170.0mm | - | 170W | - | 1740 RPM | -4 ~ 104°F (-20 ~ 40°C) | 7 Terminals | IP54 - Dust Protected, Water Resistant |
|
|
9AD1601H5HT01100V TO 240V, TERMINAL MODEL, HI |
0 | - |
|
数据表 |
San Ace 160AD | Box | Active | 100 ~ 240VAC | Square - 160mm L x 160mm H | 293.0 CFM (8.20m³/min) | 0.670 in H2O (166.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 58.0dB(A) | 22.00W | CE, TUV, UKCA | 4150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Terminals | - |
|
|
9AD1601P5HT03100V TO 240V, TERMINAL MODEL, HI |
0 | - |
|
数据表 |
San Ace 160AD | Box | Active | 100 ~ 240VAC | Square - 160mm L x 160mm H | 290.0 CFM (8.12m³/min) | 0.660 in H2O (164.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 58.0dB(A) | 22.00W | - | 4150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9ADW1601H5HT01100V TO 240V, SPLASH PROOF, TERM |
0 | - |
|
数据表 |
San Ace 160AD | Box | Active | 100 ~ 240VAC | Square - 160mm L x 160mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | - | - | - | - | - | 3 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
|
9ADW1601P5HT03100V TO 240V, SPLASH PROOF, TERM |
0 | - |
|
数据表 |
San Ace 160AD | Box | Active | 100 ~ 240VAC | Square - 160mm L x 160mm H | 290.0 CFM (8.12m³/min) | 0.660 in H2O (164.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 58.0dB(A) | 22.00W | - | 4150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
SP100A-1123XSTFAN AXIAL 120X38MM 115VAC TERM |
0 | - |
|
数据表 |
SP | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | 1.2 lbs (550 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 20.00W | CE, CSA, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

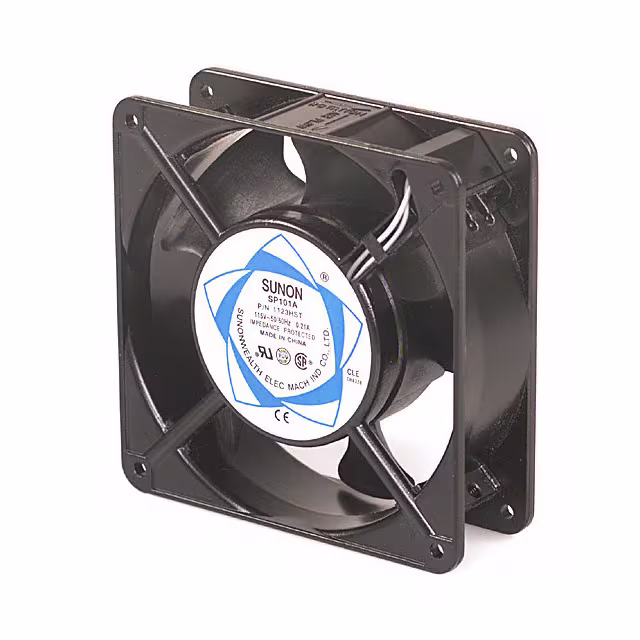

SP101A-1123HSTFAN AXIAL 120X38MM 115VAC TERM |
0 | - |
|
数据表 |
SP | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 105.0 CFM (2.94m³/min) | 0.300 in H2O (74.7 Pa) | Sleeve | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 48.0dB(A) | 18.00W | CSA, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
SP103A-1123LSTFAN AXIAL 120X38MM 115VAC TERM |
0 | - |
|
数据表 |
SP | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 76.0 CFM (2.13m³/min) | 0.120 in H2O (30.0 Pa) | Sleeve | 1.2 lbs (550 g) | Tubeaxial | - | 38.00mm | 38.0dB(A) | 11.00W | CSA, TUV, UL | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
SP100A-1123XSLFAN AXIAL 120X38MM 115VAC WIRE |
0 | - |
|
数据表 |
SP | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | 1.2 lbs (550 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 20.00W | CE, CSA, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

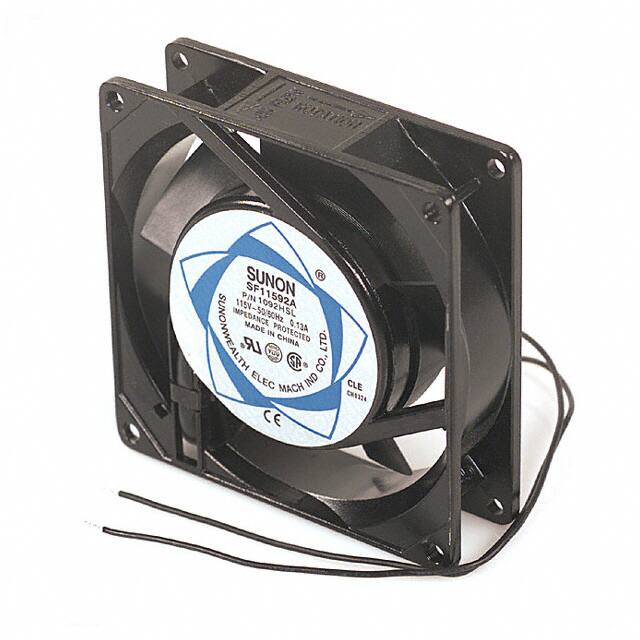

SF11592A-1092HSLFAN AXIAL 92X25MM 115VAC WIRE |
0 | - |
|
数据表 |
SF | - | Obsolete | 115VAC | Square - 91.5mm L x 91.5mm H | 36.0 CFM (1.01m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 0.617 lb (280.00 g) | Tubeaxial | - | 25.50mm | 39.0dB(A) | 12.00W | CE, cUL, TUV, UL | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

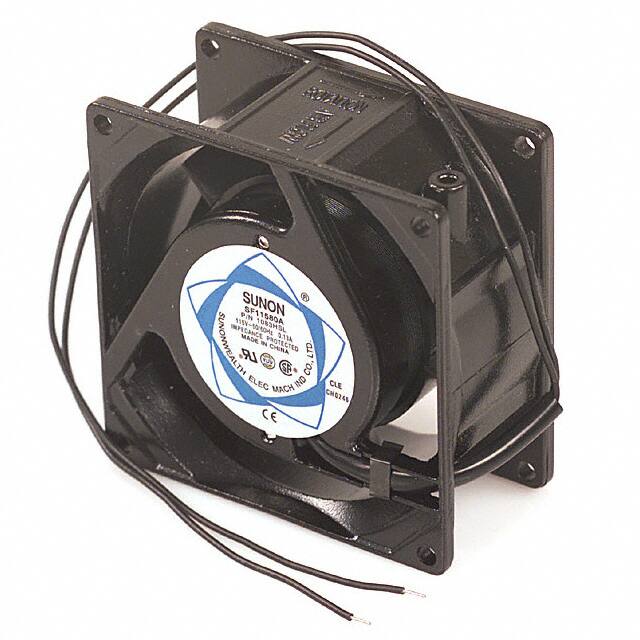

SF11580A-1083HSLFAN AXIAL 80X38MM 115VAC WIRE |
0 | - |
|
数据表 |
SF | - | Obsolete | 115VAC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 0.75 lb (340.19 g) | Tubeaxial | - | 38.00mm | 35.0dB(A) | 12.00W | CSA, UL | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
