交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9AD0901H1H1FAN 92X38MM 90/264VAC RBLS LSS |
0 | - |
|
数据表 |
San Ace 92AD | Box | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.7 Pa) | Ball | 0.551 lb (249.93 g) | Tubeaxial | - | 38.00mm | 40.0dB(A) | 4.50W | CE, CSA, PSE, TUV, UL | 3850 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Position Rectangular Connector | - |
|
|
9AD0901M1HFAN 92X38MM 90/264VAC LSS |
0 | - |
|
数据表 |
San Ace 92AD | Box | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 41.7 CFM (1.17m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.551 lb (249.93 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 33.0dB(A) | 3.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Position Rectangular Connector | - |
|
8556VWFAN AXIAL 80X38MM 230VAC WIRE |
1 | - |
|
数据表 |
8000V | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | - | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 35.0dB(A) | 11.00W | CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
OA172SAP-11-1WB1855FAN AXIAL 172X51MM 115VAC WIRE |
0 | - |
|
数据表 |
OA172SAP | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 210.0 CFM (5.88m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 51.00mm | 58.0dB | 42.00W | cURus | 3100 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
OA172LFGH111TXCFAN AXIAL 207X112.3MM 120VAC |
0 | - |
|
数据表 |
OA172LFGH XC | Box | Active | 120VAC | Square - 207mm L x 207mm H | 300.0 CFM (8.40m³/min) | 0.780 in H2O (194.3 Pa) | Ball | - | Tubeaxial | Capacitor, Kit | 112.3mm | 61.0dB | 50.0W | cURus, TUV | 3300 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals or 2 Wire Leads | - |
|
UF22F23-BTHRFAN AXIAL 223X60MM BALL 230VAC |
0 | - |
|
数据表 |
UF22F | Bulk | Active | 230VAC | - | - | - | Ball | - | - | - | - | - | - | CE | - | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|

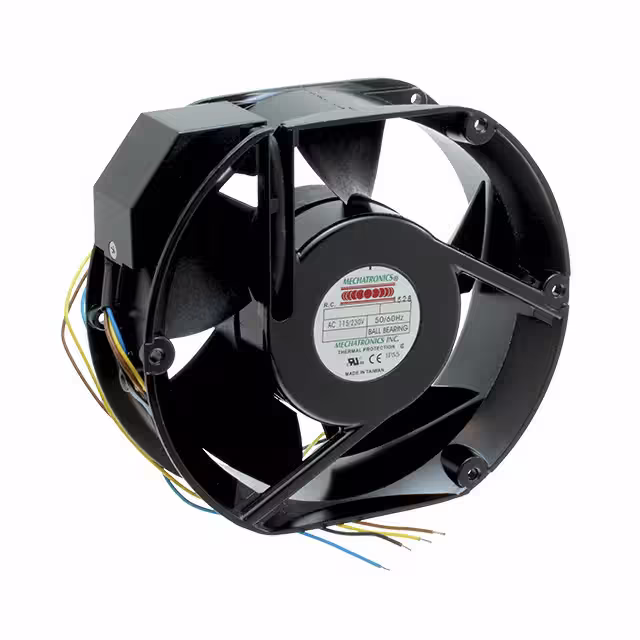

UF15KC12/23-BWHNSR-L36FAN AXIAL 172X55MM 115/230VAC |
0 | - |
|
数据表 |
UF15KC | Bulk | Active | 115/230VAC | Rectangular/Rounded - 172mm L x 150mm H | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Dual Voltage, Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 55.00mm | 60.0dB(A) | 38.00W | CE, cUL, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
APA23-H1C4A.JPG)
|
UF180(55)APA23-H1C4AFAN IMP MTRZD 182X55MM 230VAC |
0 | - |
|
数据表 |
UF180(55)APA | Bulk | Active | 230VAC | Round - 182mm Dia | 264.6 CFM (7.41m³/min) | 1.400 in H2O (348.7 Pa) | Ball | 2.6 lbs (1.2 kg) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.00mm | 67.0dB(A) | 78.0W | CE, cETL, ETL, TUV | 2800 RPM | -40 ~ 122°F (-40 ~ 50°C) | 4 Wire Leads | - |
|

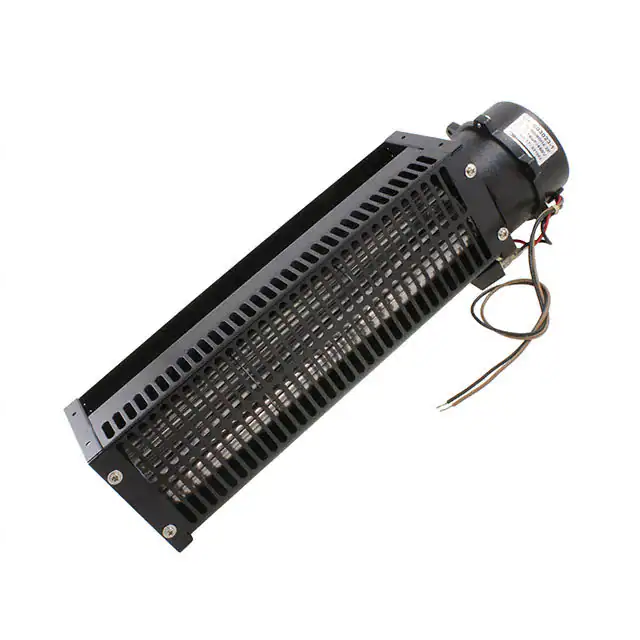

UF6030CBA23H-LFAN BLWR CF 230VAC 402X98X90MM |
1 | - |
|
数据表 |
UF6030 | Bulk | Active | 230VAC | Rectangular - 402mm L x 90mm H | 195.0 CFM (5.46m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 4.3 lbs (2 kg) | Blower, Cross Flow | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 98.00mm | 53.0dB(A) | 37.00W | CE, TUV | 3000 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
UF160DPB23-H1S2AFAN BLOWER 220X220MM 230VAC WIRE |
0 | - |
|
数据表 |
UF160DPB | Bulk | Active | 230VAC | Square - 220mm L x 220mm H | 126.0 CFM (3.53m³/min) | 1.800 in H2O (448.4 Pa) | Ball | 3.9 lbs (1.8 kg) | Blower | Thermal Overload Protector (TOP) | 56.20mm | 65.0dB(A) | 53.0W | - | 2900 RPM | - | 2 Wire Leads | - |
APA23-H1S2A.JPG)
|
UF133(72)APA23-H1S2AFAN IMP MTRZD 133X72.5MM 230VAC |
1 | - |
|
数据表 |
UF133(72) | Bulk | Active | 230VAC | Round - 133mm Dia | 188.0 CFM (5.26m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 1.3 lbs (589.7 g) | Motorized Impellers | - | 72.50mm | 50.0dB(A) | 40.00W | CE, cUL, TUV, UL | 2780 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
|
UF15KC12/23-BWHNSR-L24FAN AXIAL 172X55MM 115/230VAC |
0 | - |
|
数据表 |
UF15KC | Bulk | Active | 115/230VAC | Rectangular/Rounded - 172mm L x 150mm H | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Dual Voltage, Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 55.00mm | 60.0dB(A) | 38.00W | CE, cUL, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
FKA2-25489NBHW3FFAN AXIAL 254X89MM 115VAC WIRE |
0 | - |
|
数据表 |
FKA2-25489 | Bulk | Active | 115VAC | Round - 254mm Dia | 630.0 CFM (17.64m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | - | 89.00mm | 62.0dB(A) | 67.8W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OA180AP-22-1WB1869KAC FAN, IP69K, 176X176X89MM, 230 |
1 | - |
|
数据表 |
OA180AP-IP69K | Box | Active | 230VAC | Square - 176mm L x 176mm H | 380.0 CFM (10.64m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 4.1 lbs (1.9 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 89.00mm | 63.0dB | 80.0W | CE, cURus, TUV, UR | 3250 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|

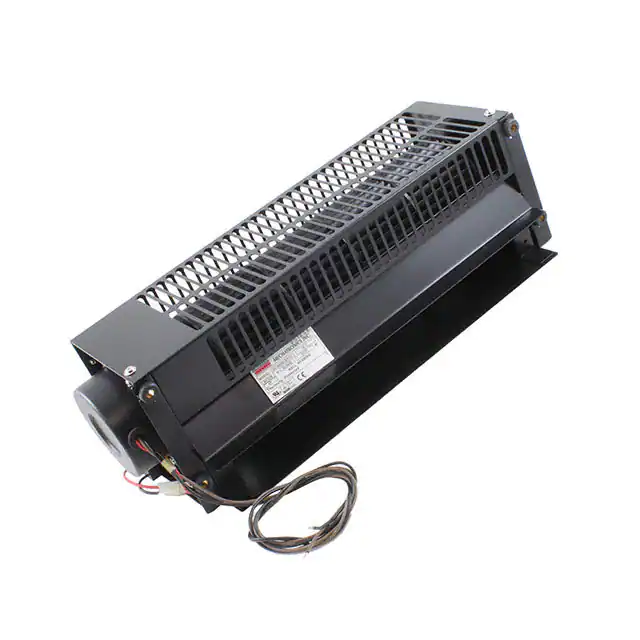

UF9029CBP23H-LFAN BLWR CF 230VAC 420X150X130MM |
0 | - |
|
数据表 |
UF9029 | Bulk | Active | 230VAC | Rectangular - 420mm L x 130mm H | 177.1 CFM (4.96m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 6.6 lbs (3 kg) | Blower, Cross Flow | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 125.0mm | 46.0dB(A) | 31.00W | CE, cUL, TUV, UL | 1560 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
OA180AN-22-1TB1856FAN AXIAL 176X89MM 230VAC TERM |
0 | - |
|
数据表 |
OA180AN | Box | Active | 230VAC | Square - 176mm L x 176mm H | 380.0 CFM (10.64m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 4.1 lbs (1.9 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 89.00mm | 63.0dB | 80.0W | cURus, TUV | 3250 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP56 - Dust Protected, Water Resistant |
|

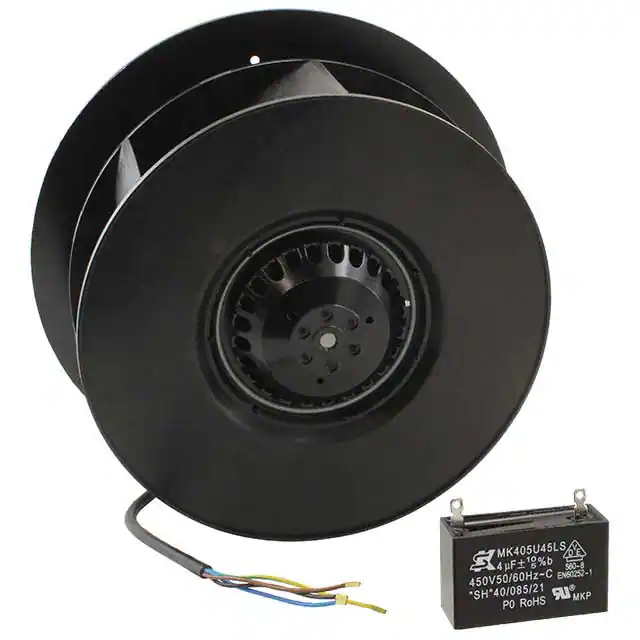

UF190APA23-H1C2FIMPELLER 190X70MM 230VAC RING |
0 | - |
|
数据表 |
UF190APA | Bulk | Active | 230VAC | Round - 190mm Dia | 247.0 CFM (6.92m³/min) | 1.500 in H2O (373.6 Pa) | Ball | 3.2 lbs (1.5 kg) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70.00mm | 63.0dB(A) | 72.0W | CE, cUL, TUV, UL | 2700 RPM | -40 ~ 122°F (-40 ~ 50°C) | 4 Wire Leads | - |
|
UF18JC20-BTHRFAN AXIAL 180X90MM 200VAC TERM |
0 | - |
|
数据表 |
UF18JC-4 | Bulk | Active | - | Square - 180mm L x 180mm H | - | - | Ball | 4.8 lbs (2.2 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 90.00mm | - | - | CE, cUL, TUV, UL | - | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
OA180AP-22-1TB1868FAN 230AC 176X176X89MM IP68 TERM |
0 | - |
|
数据表 |
OA180AP | Box | Active | 230VAC | Square - 176mm L x 176mm H | 380.0 CFM (10.64m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 4.1 lbs (1.9 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 89.00mm | 63.0dB | 80.0W | CE, cURus, TUV, UR | 3250 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
OA225AP-22-1WB1868FAN 230AC 225X240X80MM IP68 WIRE |
1 | - |
|
数据表 |
OA225AP | Box | Active | 230VAC | Square - 225mm L x 225mm H | 620.0 CFM (17.36m³/min) | 0.740 in H2O (184.3 Pa) | Ball | 4.8 lbs (2.2 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 80.00mm | 66.0dB | 80.0W | CE, cURus, TUV, UR | 3100 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
