交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W4D350-CA06-14FAN AXIAL 460X80MM BALL 230VAC ebm-papst Inc. |
25 | - |
|
数据表 |
W4D350 | Box | Active | 230VAC | Round - 460mm Dia | 1705.0 CFM (47.74m³/min) | 0.603 in H2O (150.2 Pa) | Ball | 13 lbs (5.9 kg) | Tubeaxial | - | 80.00mm | 69.0dB(A) | 190W | CE, UL | 1620 RPM | -13 ~ 122°F (-25 ~ 50°C) | Terminal Block | IP44 |
|
G2E160-AY47-01BLOWER ALUMINUM 230VAC ebm-papst Inc. |
10 | - |
|
数据表 |
G2E160 | Bulk | Active | 230VAC | Rectangular/Rounded - 261mm L x 227mm H | - | 0.200 in H2O (49.8 Pa) | Ball | 8.8 lbs (4 kg) | Blower | Capacitor, Thermal Overload Protection (TOP) | 130.0mm | - | 280W | CCC, CE | 2100 RPM | -13 ~ 86°F (-25 ~ 30°C) | 4 Wire Leads | IP44 |
|
K3G190-RD45-03EC CENTRIFUGAL MODULE - RADICAL ebm-papst Inc. |
13 | - |
|
数据表 |
Green Tech RadiCal® K3G190 | Bulk | Active | 230VAC | Square - 266mm L x 266mm H | - | 1.830 in H2O (455.0 Pa) | Ball | - | Tubeaxial | Capacitor, Electronic Commutation (EC), PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 102.0mm | - | 169W | CCC, CSA, EAC, UL | 4120 RPM | -13 ~ 140°F (-25 ~ 60°C) | 7 Wire Leads | IP54 - Dust Protected, Water Resistant |
|

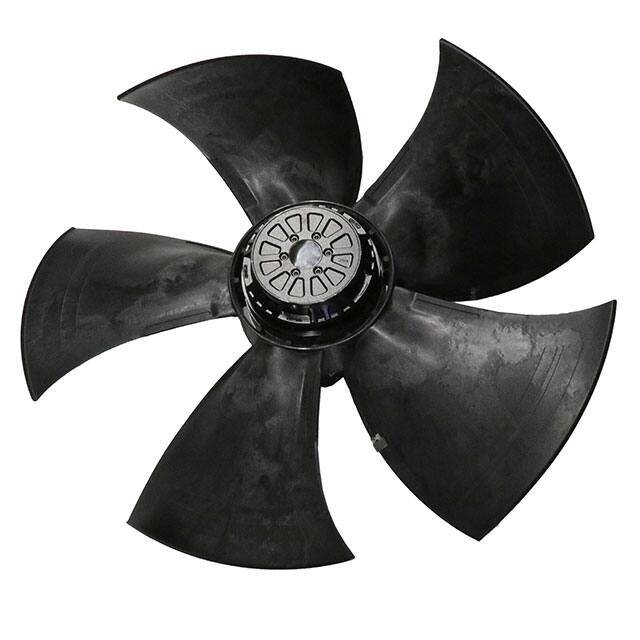

A6D630-AN01-01AC AXIAL FAN ebm-papst Inc. |
23 | - |
|
数据表 |
A6D630 | Bulk | Active | 480VAC | Round - 630mm Dia | 4426.3 CFM (123.94m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial, 3 Phase | Thermal Overload Protector (TOP) | 209.5mm | - | 550W | CCC, CE, EAC, VDE | 1010 RPM | -40 ~ 131°F (-40 ~ 55°C) | Terminal Block | IP54 - Dust Protected, Water Resistant |
|
D2E146-CD51-23BLOWER ebm-papst Inc. |
12 | - |
|
数据表 |
D2E146 | Bulk | Active | 230VAC | Rectangular/Rounded - 226mm L x 241mm H | - | 1.204 in H2O (299.9 Pa) | Ball | - | Blower | Capacitor, Thermal Overload Protector (TOP) | 176.0mm | - | 250W | CE | 2100 RPM | 86°F (30°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
W4D400-DP12-40FAN AXIAL ebm-papst Inc. |
7 | - |
|
数据表 |
W4D400 | Bulk | Active | 230VAC | Square - 540mm L x 540mm H | 1528.5 CFM (42.80m³/min) | 0.502 in H2O (125.0 Pa) | Ball | - | Tubeaxial, 3 Phase | Dual Voltage, Thermal Overload Protector (TOP) | 152.0mm | - | 225W | CCC, CE, CSA, UL | 1640 RPM | -40 ~ 140°F (-40 ~ 60°C) | 9 Wire Leads with Splice Terminals | IP44 |
|
D2D133-AB02-07BLOWER ebm-papst Inc. |
4 | - |
|
数据表 |
D2D133 | Bulk | Active | 400VAC | Rectangular/Rounded - 180mm L x 173.5mm H | - | 1.000 in H2O (249.1 Pa) | Ball | - | Blower, Centrifugal | - | 215.0mm | - | 215W | CE | 2640 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads with QC Receptacles | IP44 |
|
D2E160-AH02-15BLOWER ebm-papst Inc. |
2 | - |
|
数据表 |
D2E160 | Bulk | Active | 230VAC | Rectangular/Rounded - 225mm L x 241mm H | - | 1.564 in H2O (389.6 Pa) | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | 276.0mm | - | 730W | CCC, EAC | 2400 RPM | -13 ~ 122°F (-25 ~ 50°C) | Terminal Block | - |
|
3650FAN AXIAL 92X38MM 230VAC WIRE ebm-papst Inc. |
49 | - |
|
数据表 |
3000 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 44.1 CFM (1.23m³/min) | - | Sintec | 0.926 lb (420.03 g) | Tubeaxial | - | 38.00mm | 36.0dB(A) | 12.00W | CE, CSA, UL, VDE | 2650 RPM | 14 ~ 131°F (-10 ~ 55°C) | 2 Wire Leads | - |
|
4850NFAN AXIAL 119X38MM 230VAC TERM ebm-papst Inc. |
43 | - |
|
数据表 |
4000N | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 58.8 CFM (1.64m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 32.0dB(A) | 10.00W | CE, CSA, UL, VDE | 1800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
