交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G3G120-BB03-16MOTORIZED IMPELLER ebm-papst Inc. |
0 | - |
|
数据表 |
G3G120 | Bulk | Obsolete | 230VAC | Rectangular/Rounded - 178mm L x 193.5mm H | - | - | Ball | - | Blower, Centrifugal | Electronic Commutation (EC), PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 229.0mm | - | 41.00W | CSA, EAC, UL | 2200 RPM | -13 ~ 140°F (-25 ~ 60°C) | 3 Wire Leads, 4 Wire Leads | IP44 |
|
FE1Q-115-060-01BLOWER ebm-papst Inc. |
1 | - |
|
数据表 |
FE1Q060 | Bulk | Obsolete | 115VAC | Rectangular - 500mm L x 163mm H | 215.0 CFM (6.02m³/min) | - | Ball | - | Blower, Cross Flow | Capacitor | 88.00mm | 55.0dB(A) | 32.00W | CE, UL | - | 140°F (60°C) | Terminal Block | - |
|
|
D4D225-CC01-23BLOWER ebm-papst Inc. |
82 | - |
|
数据表 |
D4D225 | Bulk | Active | 230/400VAC | Rectangular/Rounded - 328mm L x 371mm H | 886.4 CFM (24.82m³/min) | 0.803 in H2O (200.0 Pa) | Ball | - | Blower, Centrifugal | Dual Voltage, Thermal Overload Protector (TOP) | 341.0mm | - | 650W | CE | 1170 RPM | -13 ~ 140°F (-25 ~ 60°C) | 9 Wire Leads | IP22 |
|

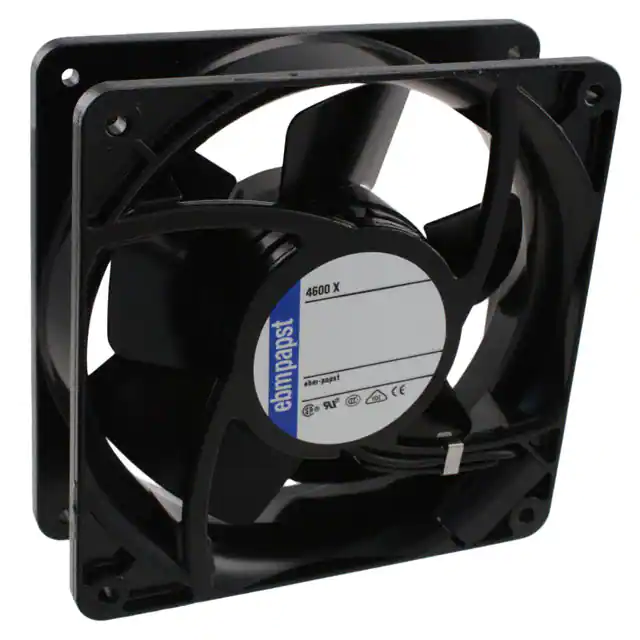

4600XFAN AXIAL 119X38MM 115VAC TERM ebm-papst Inc. |
94 | - |
|
数据表 |
4600X | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 106.0 CFM (2.97m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 50.0dB(A) | 18.00W | - | - | - | 2 Terminals | - |
|
4800ZFAN AXIAL 119X38MM 115VAC TERM ebm-papst Inc. |
76 | - |
|
数据表 |
4000Z | Box | Active | 115VAC | Square - 119mm L x 119mm H | 61.7 CFM (1.73m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 28.0dB(A) | 12.00W | CE, CSA, UL, VDE | 1800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
W2S130-AA03-44FAN AXIAL 150X55MM 230VAC TERM ebm-papst Inc. |
19 | - |
|
数据表 |
W2S130 | Box | Active | 230VAC | Round - 150mm Dia | 223.6 CFM (6.26m³/min) | - | Ball | 2.4 lbs (1.1 kg) | Tubeaxial | - | 55.00mm | 53.0dB(A) | 38.00W | CE, CSA, UL, VDE | - | -40 ~ 176°F (-40 ~ 80°C) | 2 Terminals | - |
|
W1G130-AA25-01FAN 220VAC 220CFM 130MM ebm-papst Inc. |
23 | - |
|
数据表 |
W1G130 | Box | Active | 230VAC | Round - 151mm Dia | - | 0.363 in H2O (90.5 Pa) | Ball | 1.7 lbs (771.1 g) | Tubeaxial | - | 58.00mm | - | 24.00W | CCC, CSA, EAC, UL, VDE | 3200 RPM | -22 ~ 158°F (-30 ~ 70°C) | - | IP54 - Dust Protected, Water Resistant |
|
W2S130-AA03-87FAN AXIAL 172X55MM 230VAC WIRE ebm-papst Inc. |
18 | - |
|
数据表 |
W2S130 | Bulk | Active | 230VAC | Round - 150mm Dia | 223.6 CFM (6.26m³/min) | 0.482 in H2O (120.0 Pa) | Ball | 2.4 lbs (1.1 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | 53.0dB(A) | 39.00W | CCC, CE, CSA, UL | 3250 RPM | -40 ~ 176°F (-40 ~ 80°C) | 5 Wire Leads | IP20 |
|
R2E225-RA92-09MOTORIZED IMPELLER ebm-papst Inc. |
14 | - |
|
数据表 |
RadiCal® R2E225RA | Bulk | Active | 230VAC | Round - 225mm Dia | 415.2 CFM (11.63m³/min) | - | Ball | - | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | 99.00mm | - | 210W | CCC, CE, EAC | 2600 RPM | -13 ~ 149°F (-25 ~ 65°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
R2E225-RA92-20225 MM AC CENTRIFUGAL FAN ebm-papst Inc. |
8 | - |
|
数据表 |
RadiCal® R2E225RA | Bulk | Active | 230VAC | Round - 225mm Dia | 765.2 CFM (21.43m³/min) | - | Ball | 5 lbs (2.3 kg) | Motorized Impellers | - | 99.00mm | 76.0dB(A) | 225W | UL | 2600 RPM | -13 ~ 113°F (-25 ~ 45°C) | 4 Wire Leads | IP44 |
