交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA2543AP-22-1TB1868FAN 230AC 254X254X89MM IP68 TERM |
0 | - |
|
数据表 |
OA2543AP | Box | Active | 230VAC | Round - 254mm Dia | 930.0 CFM (26.04m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 5.2 lbs (2.4 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 89.00mm | 67.0dB | 105W | CE, cURus, TUV, UR | 3300 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
R2D180-AL10-18MOTORIZED IMPELLER |
0 | - |
|
数据表 |
R2D180 | Bulk | Active | 400VAC | Round - 180mm Dia | - | - | Ball | - | Motorized Impellers | - | 86.50mm | - | 105W | CCC | 2650 RPM | -13 ~ 104°F (-25 ~ 40°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
W4D350-CA04-52FAN AXIAL |
0 | - |
|
数据表 |
W4D350 | Bulk | Active | 460VAC | Round - 460mm Dia | - | 0.542 in H2O (135.0 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 109.0mm | - | 220W | CE | 1650 RPM | -13 ~ 86°F (-25 ~ 30°C) | 9 Wire Leads with Splice Terminals | IP44 |
|
3115FS-12W-B20-A00FAN AXIAL 80X38MM 115VAC WIRE |
0 | - |
|
数据表 |
FS | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 27.0 CFM (0.756m³/min) | 0.130 in H2O (32.5 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | - | 38.00mm | 40.0dB | 7.00W | CE, CSA, TUV, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
08038FB-B3L-EA-00FAN 80MM X 38MM 230VAC TERMINAL |
1 | - |
|
数据表 |
08038FB | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 44.0dB | 8.00W | - | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11925PB-A1K-EA-00FAN 119MM X 25MM 115VAC TERMINAL |
0 | - |
|
数据表 |
11925PB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 53.0 CFM (1.48m³/min) | 0.080 in H2O (19.9 Pa) | Ball | - | Tubeaxial | - | 25.50mm | 30.0dB | 7.00W | - | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

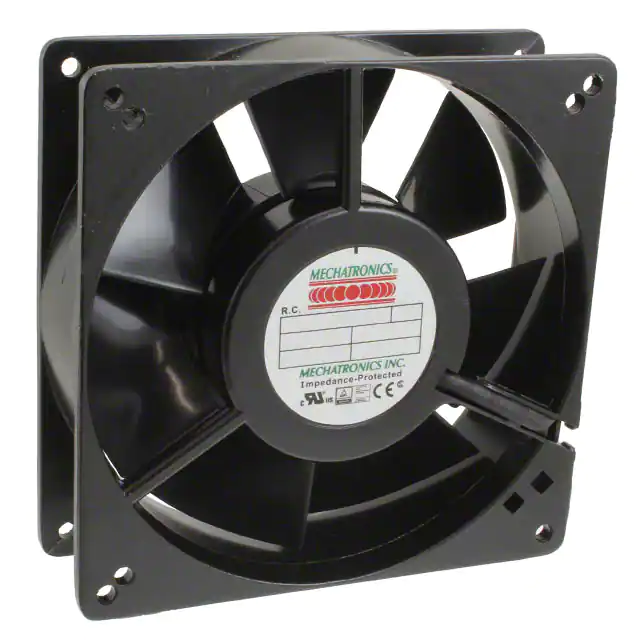

UF13A23-BTHRFAN AXIAL 127X38MM 230VAC |
4 | - |
|
数据表 |
UF13A | Bulk | Active | 230VAC | Square - 127mm L x 127mm H | 120.0 CFM (3.36m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 50.0dB(A) | 15.00W | CE, cUL, TUV, UL | 3000 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
OAB800AN-22-1WBFAN BLOWER 125X39MM 230VAC WIRE |
0 | - |
|
数据表 |
OAB800AN | Box | Active | 230VAC | Rectangular/Rounded - 125mm L x 126mm H | 30.0 CFM (0.840m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 1.2 lbs (544.3 g) | Blower | - | 39.00mm | 48.0dB | 18.00W | cURus, TUV | 2800 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
OA938AP-11-1WB1855FAN AXIAL 92X38MM 115VAC WIRE |
0 | - |
|
数据表 |
OA938 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 55.0 CFM (1.54m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 40.0dB | 15.00W | cURus, TUV | 3150 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
15038PB-B3L-EP-S0FAN 150MM X 172MM X 38MM 230VAC |
0 | - |
|
数据表 |
15038PB | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 56.0dB | 35.00W | - | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Terminals | - |
|
|
15038PB-B3K-EA-00FAN 150MM X 172MM X 38MM 230VAC |
1 | - |
|
数据表 |
15038PB | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 166.0 CFM (4.65m³/min) | 0.472 in H2O (117.6 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 50.0dB | 26.00W | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
UF15KM23-BWHR-F-L24FAN AXIAL 172X55MM 230VAC WIRE |
0 | - |
|
数据表 |
UF15KM | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 2.5 lbs (1.1 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | 53.0dB(A) | 42.00W | CE, cUL, TUV, UL | 3250 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Wire Leads | - |
|
15038PB-A1L-GP-00FAN 150MM X 172MM X 38MM 115VAC |
0 | - |
|
数据表 |
15038PB | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 56.0dB | 32.00W | - | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Terminals | - |
|
109-043ULFAN 80X42MM 115VAC |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 35.3 CFM (0.988m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | - | 42.00mm | 44.0dB(A) | 9.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
|
11938MB-A0N-EA-00FAN 119MM X 38MM 100VAC TERMINAL |
0 | - |
|
数据表 |
11938MB | Bulk | Active | 100VAC | Square - 119mm L x 119mm H | 102.4 CFM (2.87m³/min) | 0.310 in H2O (77.2 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 41.0dB | 14.00W | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
4656ZHFAN AXIAL 119X38MM 230VAC |
0 | - |
|
数据表 |
4000Z | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 94.1 CFM (2.63m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 40.0dB(A) | 19.00W | - | 2650 RPM | -40 ~ 167°F (-40 ~ 75°C) | 2 Terminals | IP54/IP65 - Dust Protected, Water Resistant, Dust Tight, Water Resistant |
|
UF15KC23-BWHR-B1FAN AXIAL 172X150X55MM 230VAC TA |
1 | - |
|
数据表 |
UF15KC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 55.00mm | 60.0dB(A) | 38.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 5 Wire Leads | - |
|

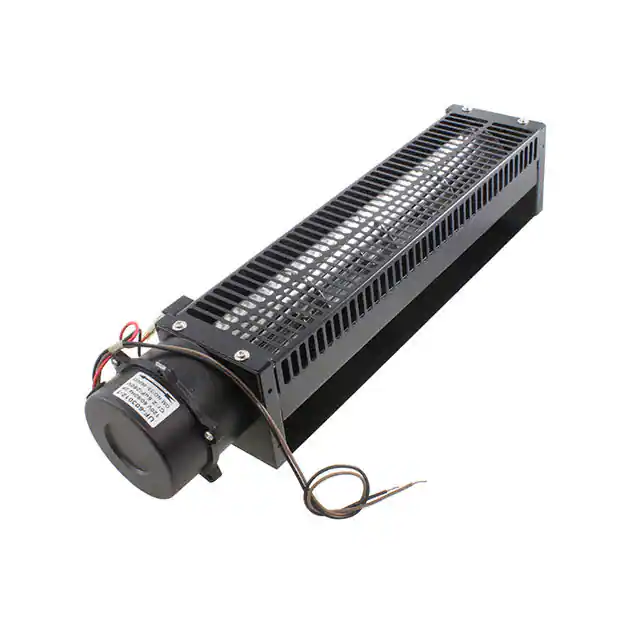

UF6036CBA12H-LFAN BLWR CF 120VAC 462X98X90MM |
0 | - |
|
数据表 |
UF6036 | Bulk | Active | 120VAC | Rectangular - 462mm L x 90mm H | 212.0 CFM (5.94m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 4.6 lbs (2.1 kg) | Blower, Cross Flow | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 98.00mm | 53.0dB(A) | 37.00W | CE, TUV | 2800 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
UF25GC12/23-BWHRFAN AXIAL 254X89MM 115/230VAC |
0 | - |
|
数据表 |
UF25GC | Bulk | Active | 115/230VAC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 4.1 lbs (1.9 kg) | Tubeaxial | Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 89.00mm | 55.0dB(A) | 33.00W | CE, cUL, TUV, UL | 1650 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
55462.19490HOT AIR FANS / BLOWERS |
0 | - |
|
数据表 |
55462 | Bulk | Active | - | Round - 152mm Dia | - | - | Sleeve | - | Blower | - | 153.0mm | - | - | - | - | - | - | - |
