交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11938MB-B3N-EA-00FAN 119MM X 38MM 230VAC TERMINAL |
0 | - |
|
数据表 |
11938MB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 41.0dB | 14.00W | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11938MB-A1J-EA-00FAN 119MM X 38MM 115VAC TERMINAL |
0 | - |
|
数据表 |
11938MB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 49.4 CFM (1.38m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 28.0dB | 5.50W | - | 1450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
OA109AP-22-1TBFAN AXIAL 120X38MM 230VAC TERM |
0 | - |
|
数据表 |
OA109 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 42.0dB | 15.00W | CE, cURus, TUV, UR | 3000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
|
SF23080A-2083HBL.GNFAN AXIAL 80X38MM 220/240VAC |
1 | - |
|
数据表 |
SF | Bulk | Active | 240VAC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.75 lb (340.19 g) | Tubeaxial | - | 38.00mm | 36.5dB(A) | 13.50W | CE, CUR, TUV, UL | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
LPH12A99-BWER5-PC-EXEC FAN AXIAL 120X120X38 100-240V |
0 | - |
|
数据表 |
LPH12A99-5 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.470 in H2O (117.1 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC), Parylene Coating | 38.00mm | 47.0dB(A) | 15.00W | ATEX | 3500 RPM | - | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
UF15PC12-BTHRFAN AXIAL 172X150X51MM 115VAC |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|

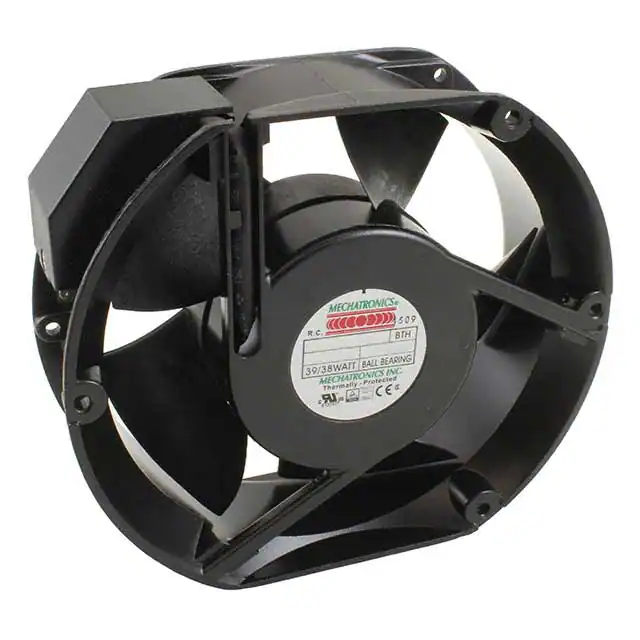

UF15KC12-BTHRFAN AXIAL 172X150X55MM 115VAC |
0 | - |
|
数据表 |
UF15KC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.00mm | 60.0dB(A) | 38.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 3 Terminals | - |
|
4606NFAN AXIAL 119X38MM 115VAC TERM |
0 | - |
|
数据表 |
4000N | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 106.0 CFM (2.97m³/min) | - | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 51.0dB(A) | 18.00W | CE, CSA, UL, VDE | 3100 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Terminals | - |
|
4600ZFAN AXIAL 119X38MM 115VAC TERM |
0 | - |
|
数据表 |
4000Z | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 106.0 CFM (2.97m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 18.00W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
UF15PC12-BWHR/CC-SFAN AXIAL 172X51MM 115VAC WIRE |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
UF15AC23-BTHR-B1FAN AXIAL 172X150X38MM 230VAC TA |
0 | - |
|
数据表 |
UF15AC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 212.0 CFM (5.94m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 58.0dB(A) | 26.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 3 Terminals | - |
|
UF160DPB12-H1S2AFAN BLOWER 220X220MM 115VAC WIRE |
1 | - |
|
数据表 |
UF160DPB | Bulk | Active | 115VAC | Square - 220mm L x 220mm H | 126.0 CFM (3.53m³/min) | 1.800 in H2O (448.4 Pa) | Ball | 3.9 lbs (1.8 kg) | Blower | Thermal Overload Protector (TOP) | 56.20mm | 65.0dB(A) | 52.0W | - | 2900 RPM | - | 2 Wire Leads | - |
|
5606SFAN AXIAL 135X38MM 115VAC TERM |
0 | - |
|
数据表 |
5600 | Box | Active | 115VAC | Square - 135mm L x 135mm H | 159.0 CFM (4.45m³/min) | - | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 38.00mm | 50.0dB(A) | 26.00W | CE, CSA, UL, VDE | 3100 RPM | -31 ~ 176°F (-35 ~ 80°C) | 2 Terminals | - |
|
UF25HC12-BTHRFAN AXIAL 254X107MM 115VAC |
0 | - |
|
数据表 |
UF25HC | Bulk | Active | 115VAC | Round - 254mm Dia | 850.0 CFM (23.80m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 5.5 lbs (2.5 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 107.0mm | 65.0dB(A) | 125W | CE, cUL, TUV, UL | 2750 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
W2S130-AA03-49FAN AXIAL 150X55MM 115/230VAC |
0 | - |
|
数据表 |
W2S130 | Bulk | Active | 115/230VAC | Round - 150mm Dia | 223.6 CFM (6.26m³/min) | 0.301 in H2O (75.0 Pa) | Ball | 2.4 lbs (1.1 kg) | Tubeaxial | Dual Voltage, Thermal Overload Protector (TOP) | 55.00mm | 53.0dB(A) | 38.00W | CSA, UL, VDE | 3200 RPM | -13 ~ 158°F (-25 ~ 70°C) | 6 Wire Leads | IP20 |
|
W2E142-BB05-01FAN AXIAL 172X38MM 115VAC TERM |
0 | - |
|
数据表 |
W2E142 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 230.0 CFM (6.44m³/min) | - | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 38.00mm | 57.0dB(A) | 28.00W | CCC, CE, CSA, GOST, UL, VDE | 3350 RPM | -40 ~ 176°F (-40 ~ 80°C) | 2 Terminals | - |
|

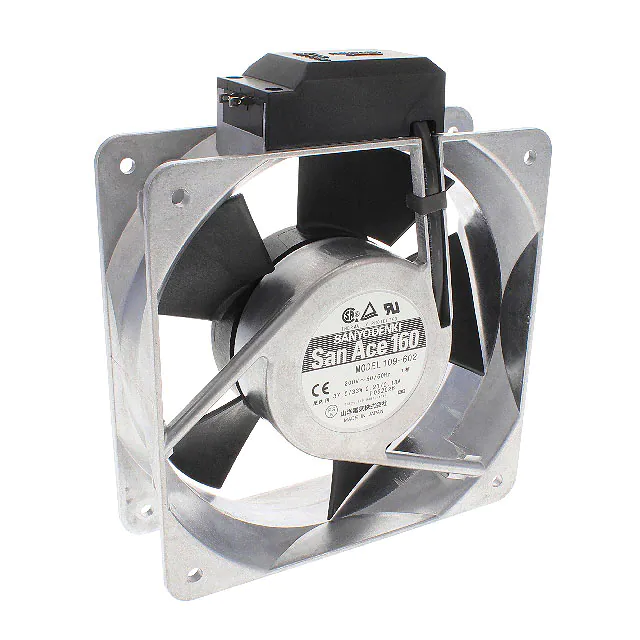

109-602FAN 160X51MM 200VAC |
0 | - |
|
数据表 |
San Ace 160 | Box | Active | 200VAC | Square - 160mm L x 160mm H | 300.4 CFM (8.41m³/min) | 0.669 in H2O (166.6 Pa) | Ball | 2.4 lbs (1.1 kg) | Tubeaxial | - | 51.00mm | 60.0dB(A) | 33.00W | CE, CSA, PSE, TUV, UL | 3350 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
UF250BMB12-H2C2AFAN AXIAL 280X80MM 115VAC WIRE |
0 | - |
|
数据表 |
UF250BMB-H1 | Bulk | Active | 115VAC | Square - 280mm L x 280mm H | - | - | Ball | 6.2 lbs (2.8 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 80.00mm | - | - | CE, cUL, TUV, UL | - | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
R2E140-AS77-05AC BACKWARD-CURVED MOTORIZED IMP |
0 | - |
|
数据表 |
R2E140 | Bulk | Active | 230VAC | Round - 140mm Dia | - | - | Ball | 2.4 lbs (1.1 kg) | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | 72.00mm | - | 110W | CCC, CE | 1400 RPM | -13 ~ 86°F (-25 ~ 30°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
UF250BMB12-H1C2A-B1FAN AXIAL 280X80MM 115VAC TACH |
0 | - |
|
数据表 |
UF250BMB-H1 | Bulk | Active | 115VAC | Square - 280mm L x 280mm H | 1130.0 CFM (31.64m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 6.1 lbs (2.8 kg) | Tubeaxial | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 80.00mm | 70.0dB(A) | 148W | CE, cUL, TUV, UL | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Terminals | - |
