交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W4D400-CP12-30FAN AXIAL |
3 | - |
|
数据表 |
W4D400 | Bulk | Active | 230/400VAC | Round - 528mm Dia | 1528.5 CFM (42.80m³/min) | 0.482 in H2O (120.0 Pa) | Ball | - | Tubeaxial, 3 Phase | Dual Voltage | 131.0mm | - | 185W | CCC, CE | 1690 RPM | -13 ~ 104°F (-25 ~ 40°C) | 7 Wire Leads with Splice Terminals | IP44 |
|
R2D250-AF10-12MOTORIZED IMPELLER |
12 | - |
|
数据表 |
R2D250 | Bulk | Active | 400VAC | Round - 250mm Dia | - | - | Ball | - | Motorized Impellers, 3 Phase | Thermal Overload Protector (TOP) | 99.00mm | - | 160W | CE | 2600 RPM | 158°F (70°C) | 6 Wire Leads with Splice Terminals | IP44 |
|
R3G250-RE21-08250 MM EC CENTRIFUGAL FAN |
19 | - |
|
数据表 |
Green Tech RadiCal® R3G250RE | Bulk | Active | 115VAC | Round - 255mm Dia | 885.8 CFM (24.80m³/min) | - | Ball | 3.9 lbs (1.8 kg) | Motorized Impellers | Electronic Commutation (EC) | 99.00mm | 76.0dB(A) | 170W | CSA, UL, VDE | 2510 RPM | -13 ~ 140°F (-25 ~ 60°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
S4D450-AP03-10FAN AXIAL |
11 | - |
|
数据表 |
S4D450 | Bulk | Active | 460VAC | Round - 522mm Dia | - | 0.301 in H2O (75.0 Pa) | Ball | - | Tubeaxial, 3 Phase | - | 200.5mm | - | 380W | - | 1460 RPM | -13 ~ 131°F (-25 ~ 55°C) | Terminal Block | IP44 |
|
D4E225-CC01-30FAN BLWR CENT 370X341MM 230VAC |
19 | - |
|
数据表 |
D4E225 | Bulk | Active | 230VAC | Rectangular/Rounded - 370mm L x 327mm H | 1156.6 CFM (32.38m³/min) | 0.401 in H2O (100.0 Pa) | Ball | - | Blower, Centrifugal | Capacitor, Thermal Overload Protection (TOP) | 341.0mm | - | 650W | CCC, CE | 1150 RPM | -13 ~ 86°F (-25 ~ 30°C) | 6 Wire Leads | IP22 |
|
FAA1-12038NBKW31-AFAN AXIAL 119.5X38.5MM 115VAC |
32 | - |
|
数据表 |
FAA1-12038-A | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 107.0 CFM (3.00m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 48.1dB(A) | 19.20W | CE, cURus, TUV | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

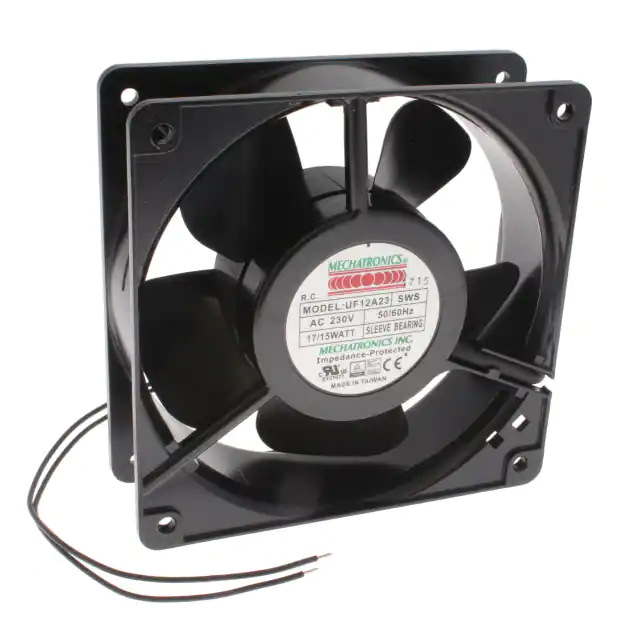

UF12A23-SWSRFAN AXIAL 120X38MM 230VAC WIRE |
39 | - |
|
数据表 |
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 64.0 CFM (1.79m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | 1.168 lbs (530 g) | Tubeaxial | - | 38.00mm | 37.0dB(A) | 8.00W | CE, cUL, TUV, UL | 2100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
3115FS-23W-B20-A00FAN AXIAL 80X38MM 230VAC WIRE |
12 | - |
|
数据表 |
FS | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 28.0 CFM (0.784m³/min) | 0.130 in H2O (32.5 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | - | 38.00mm | 40.0dB | 7.50W | CE, CSA, TUV, UL, VDE | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAA1-08038NBHT31FAN AXIAL 80X38MM 115VAC TERM |
98 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 29.6 CFM (0.829m³/min) | 0.166 in H2O (41.3 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 31.6dB(A) | 8.50W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-08025QBMT31FAN AXIAL 80X25MM 230VAC TERM |
57 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 19.0 CFM (0.532m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 24.0dB(A) | 11.00W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
11938MB-A1J-AA-00FAN 119MM X 38MM 115VAC WIRE |
11 | - |
|
数据表 |
11938MB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 49.4 CFM (1.38m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 28.0dB | 5.50W | - | 1450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11938MB-B3M-EA-00FAN 119MM X 38MM 230VAC TERMINAL |
39 | - |
|
数据表 |
11938MB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 95.0 CFM (2.66m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 39.0dB | 13.00W | - | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11938MB-B3N-AA-00FAN 119MM X 38MM 230VAC WIRE |
36 | - |
|
数据表 |
11938MB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 41.0dB | 14.00W | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
4715FS-23T-B40-D00FAN AXIAL 119X38MM 230VAC TERM |
11 | - |
|
数据表 |
FS | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 42.0dB | 14.00W | CE, CSA, TUV, UL | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
08025MB-B3L-AA-00FAN 80MM X 25MM 230VAC WIRE |
21 | - |
|
数据表 |
08025MB | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | - | 25.30mm | 31.0dB | 6.50W | - | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
09225PB-A1K-EA-00FAN 92MM X 25MM 115VAC TERMINAL |
30 | - |
|
数据表 |
09225PB | Bulk | Active | 115VAC | Square - 92.5mm L x 92.5mm H | 28.0 CFM (0.784m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 35.0dB | 6.00W | - | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
09225PB-B3L-AA-00FAN 92MM X 25MM 230VAC WIRE |
12 | - |
|
数据表 |
09225PB | Bulk | Active | 230VAC | Square - 92.5mm L x 92.5mm H | 34.5 CFM (0.966m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 39.0dB | 10.00W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
OA109AP-11/22-2WBFAN AC 120X38 110/220V |
8 | - |
|
数据表 |
OA109 | Bulk | Active | 115 ~ 230VAC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Dual Voltage | 38.50mm | - | - | CE, cURus, TUV, UR | - | -4 ~ 167°F (-20 ~ 75°C) | 4 Wire Leads | - |
|
FAA1-12038QBHT31-AFAN AXIAL 119.5X38.5MM 230VAC |
86 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 97.0 CFM (2.72m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 44.5dB(A) | 14.80W | CE, cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-08038QBMW31FAN AXIAL 80X38MM 230VAC WIRE |
25 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 26.2dB(A) | 5.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
