交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

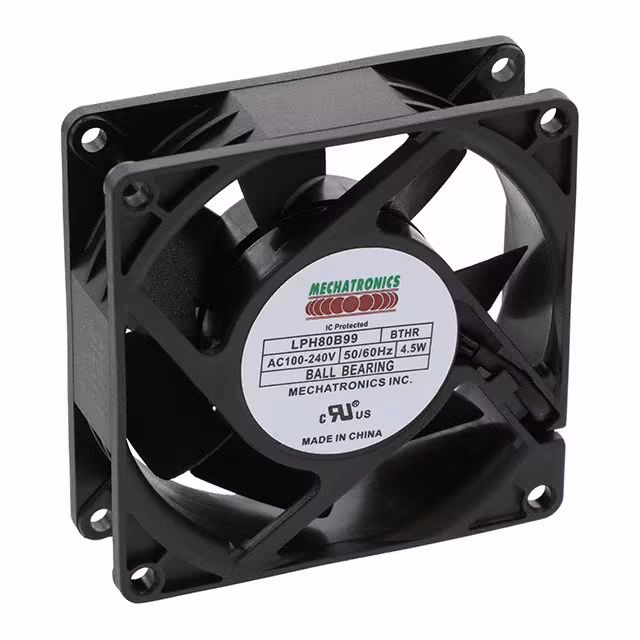

LPH80B99-BTHRFAN AXIAL 80X25.5MM 100-240VAC |
245 | - |
|
数据表 |
LPH80B99 | Bulk | Active | 100 ~ 240VAC | Square - 80mm L x 80mm H | 39.0 CFM (1.09m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.209 lb (94.89 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 25.50mm | 31.0dB(A) | 4.50W | CE, cUL, TUV, UL | 3500 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
OA60AP-11-1WBFAN AXIAL 60X30MM 115VAC WIRE |
779 | - |
|
数据表 |
OA60 | Box | Active | 115VAC | Square - 60mm L x 60mm H | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.325 lb (147.42 g) | Tubeaxial | - | 30.00mm | 28.0dB | 4.00W | cURus, TUV | 3100 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
|
OA60AP-22-1WBFAN AXIAL 60X30MM 230VAC WIRE |
726 | - |
|
数据表 |
OA60 | Box | Active | 230VAC | Square - 60mm L x 60mm H | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.325 lb (147.42 g) | Tubeaxial | - | 30.00mm | 28.0dB | 4.00W | cURus, TUV | 3100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|

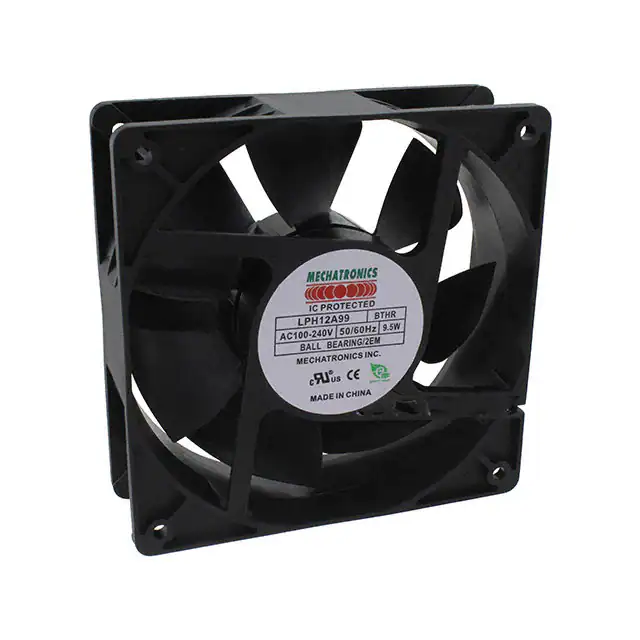

LPH12A99-BTHR-2EMEC FAN AXIAL 120X120X38MM 100-24 |
182 | - |
|
数据表 |
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | 0.631 lb (286.20 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 38.50mm | 49.0dB(A) | 9.50W | - | 3500 RPM | - | 2 Terminals | IP68 - Dust Tight, Waterproof |
|

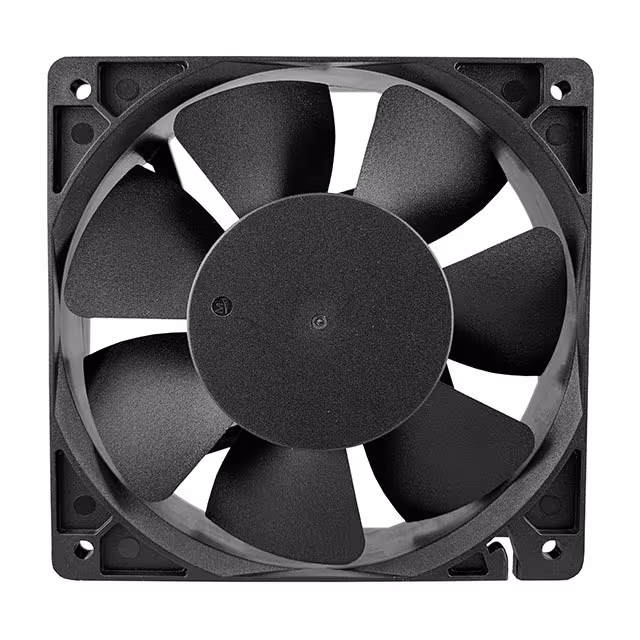

FMA1-12025WBHW12EC FAN, 120X120X25MM, 2-BALL BEA |
286 | - |
|
数据表 |
FMA1-12025 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 79.4 CFM (2.22m³/min) | 0.175 in H2O (43.7 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 25.00mm | 44.8dB(A) | 6.00W | CE, cURus | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
LPH12A99-BTHRFAN AXIAL 120X38.5MM 100-240VAC |
1,354 | - |
|
数据表 |
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | 0.631 lb (286.20 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 38.50mm | 49.0dB(A) | 9.50W | - | 3500 RPM | - | 2 Terminals | - |
|
DP200A-2123XBT.GNFAN AXIAL 120X38MM 220/240VAC |
5,399 | - |
|
数据表 |
DP | Box | Active | 220 ~ 240VAC | Square - 120mm L x 120mm H | 117.0 CFM (3.28m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 1.2 lbs (550 g) | Tubeaxial | - | 38.00mm | 50.0dB(A) | 21.00W | CE, CSA, TUV, UL | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

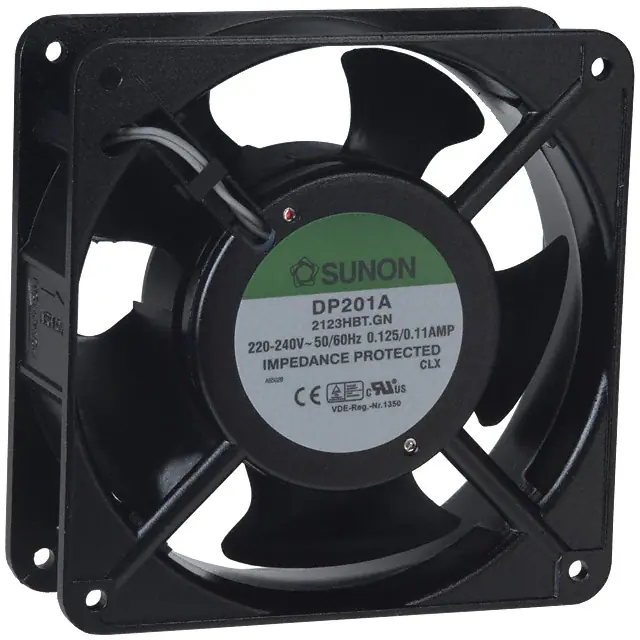

DP201A-2123HBT.GNFAN AXIAL 120X38MM 220/240VAC |
2,392 | - |
|
数据表 |
DP | Box | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 107.0 CFM (3.00m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 1.2 lbs (550 g) | Tubeaxial | - | 38.50mm | 50.0dB(A) | 19.00W | CE, CUR, TUV, UL | 3050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
SP101A-1123HBT.GNFAN AXIAL 120X38MM 115VAC TERM |
971 | - |
|
数据表 |
SP | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 107.0 CFM (3.00m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 50.0dB(A) | 18.00W | CE, CUR, TUV, UL | 3050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
SF11580A-1083HBL.GNFAN AXIAL 80X38MM 115VAC WIRE |
647 | - |
|
数据表 |
SF | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.75 lb (340.19 g) | Tubeaxial | - | 38.00mm | 36.5dB(A) | 12.00W | CE, CUR, TUV, UL | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

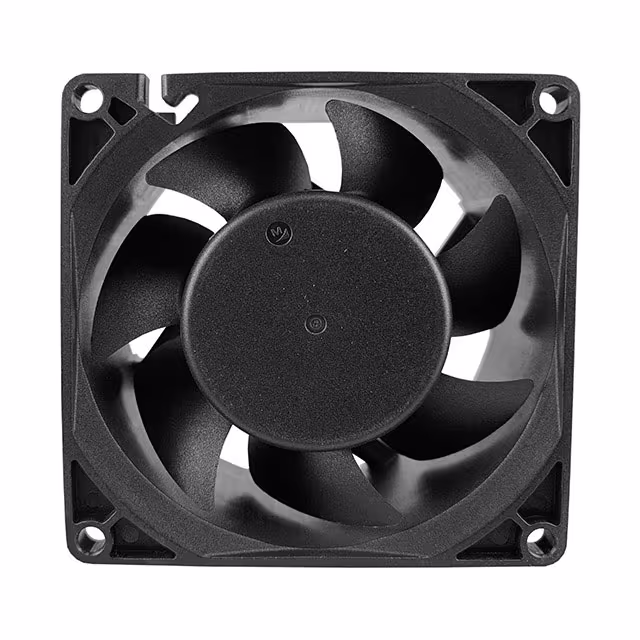

FMA1-08038WBHT12EC FAN, 80X80X38MM, 2-BALL BEARI |
167 | - |
|
数据表 |
FMA1-08038 | Bulk | Active | 100 ~ 240VAC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.283 in H2O (70.5 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 38.00mm | 31.0dB(A) | 5.50W | CE, cURus | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP54 - Dust Protected, Water Resistant |
|

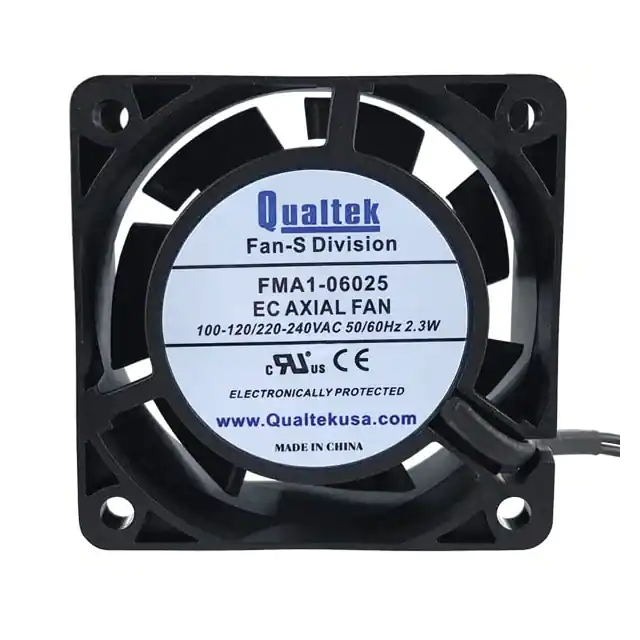

FMA1-06025WBHW12EC FAN, 60X60X25MM, 2-BALL BEARI |
356 | - |
|
数据表 |
FMA1-06025 | Bulk | Active | 100 ~ 240VAC | Square - 60mm L x 60mm H | 16.8 CFM (0.470m³/min) | 0.239 in H2O (59.6 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 25.00mm | 35.3dB(A) | 2.30W | CE, cURus | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|

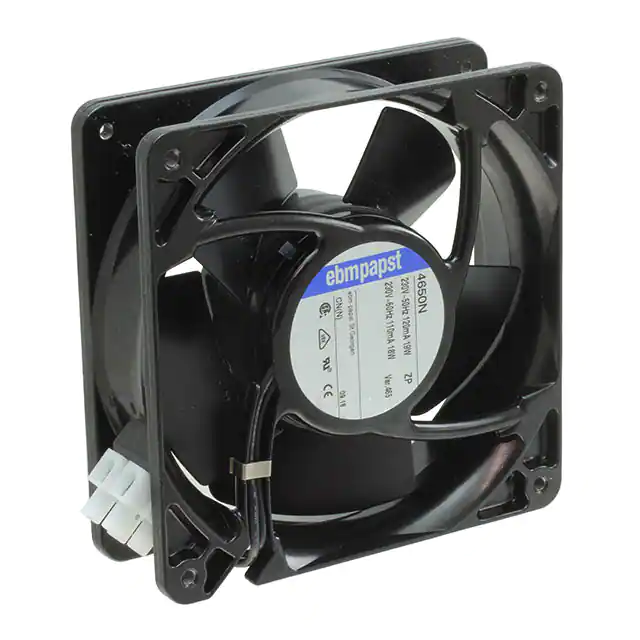

4650N-465FAN AXIAL 119X38MM 230VAC |
229 | - |
|
数据表 |
4000N | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 94.1 CFM (2.63m³/min) | - | Sintec | - | Tubeaxial | - | 38.00mm | 46.0dB(A) | 19.00W | CE, CSA, UL, VDE | 2650 RPM | 14 ~ 131°F (-10 ~ 55°C) | 2 Terminals | IP54/IP65 - Dust Protected, Water Resistant, Dust Tight, Water Resistant |
|
OA109AP-11-1TBXCFAN AXIAL 120X38MM 120VAC TERM |
2,110 | - |
|
数据表 |
OA109XC | Box | Active | 120VAC | Square - 120mm L x 120mm H | 131.0 CFM (3.67m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 47.0dB | 22.00W | cURus, TUV | 3300 RPM | 14 ~ 149°F (-10 ~ 65°C) | 2 Terminals | - |
|
OA109AP-22-1TBXCFAN AXIAL 120X38MM 230VAC TERM |
1,863 | - |
|
数据表 |
OA109XC | Box | Active | 230VAC | Square - 120mm L x 120mm H | 131.0 CFM (3.67m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 47.0dB | 22.00W | cURus, TUV | 3300 RPM | 14 ~ 149°F (-10 ~ 65°C) | 2 Terminals | - |
|
OA80EC-UR-1WBXCEC FAN 80X38MM 85-265VAC 60CFM |
101 | - |
|
数据表 |
OA80EC XC | Box | Active | 110/220VAC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 38.00mm | 50.0dB | 6.30W | CE, cURus, TUV, UR | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FMA1-08038WBHW12EC FAN, 80X80X38MM, 2-BALL BEARI |
418 | - |
|
数据表 |
FMA1-08038 | Bulk | Active | 100 ~ 240VAC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.283 in H2O (70.5 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 38.00mm | 31.0dB(A) | 5.50W | CE, cURus | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
BXC.jpg)
|
OA109EC-UR-1TBXCEC FAN 120X38MM 85-265VAC TERM |
119 | - |
|
数据表 |
OA109EC XC | Box | Active | 110/220VAC | Square - 120mm L x 120mm H | 133.8 CFM (3.79m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.683 lb (309.8 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 38.00mm | 47.0dB | 6.50W | CE, cURus, TUV, UR | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

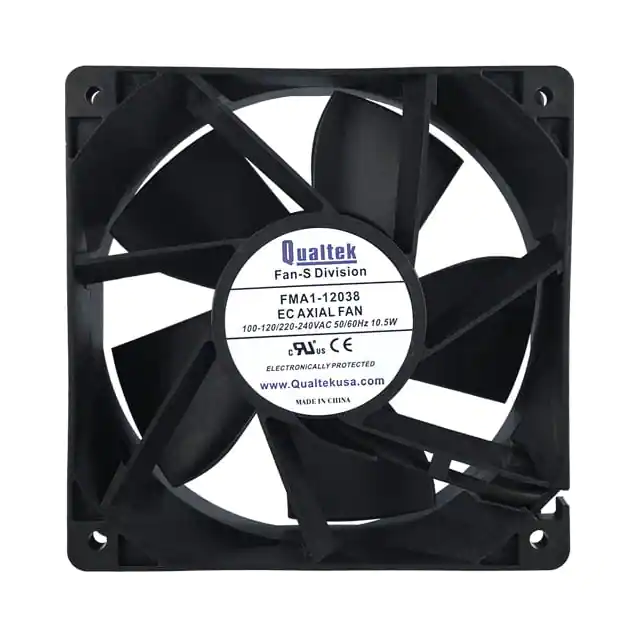

FMA1-12038WBJT12-AEC FAN, 120X120X38MM, 2-BALL BEA |
538 | - |
|
数据表 |
FMA1-12038-A | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 137.6 CFM (3.85m³/min) | 0.445 in H2O (110.8 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 38.00mm | 51.5dB(A) | 15.00W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP54 - Dust Protected, Water Resistant |
|

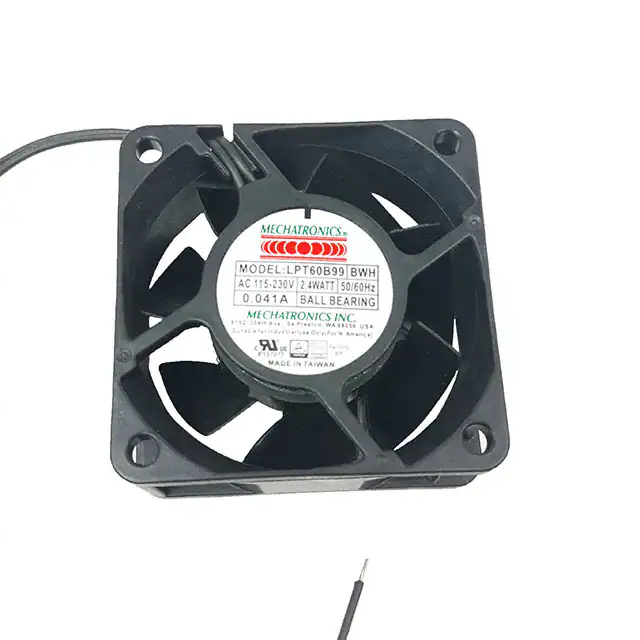

LPT60B99-BWHREC FAN AXIAL 60 X 60 X 25MM 100- |
125 | - |
|
数据表 |
LPT60B99 | Bulk | Active | 115/230VAC | Square - 60mm L x 60mm H | 19.1 ~ 19.4 CFM (0.535 ~ 0.543m³/min) | 0.170/0.180 in H2O (42.3/44.8 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Dual Speed, Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 25.00mm | 31.0dB(A) | 2.00W, 2.40W | - | 3850/3950 RPM | - | 2 Wire Leads | - |
