交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA60EC-UR-1WBIP68AFAN EC 60X25MM 95-264VAC IP68 AT |
725 | - |
|
数据表 |
OA60EC | Box | Active | 95 ~ 264VAC | Square - 60mm L x 60mm H | 19.5 CFM (0.546m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Electronic Commutation (EC), Thermal Overload Protector (TOP) | 25.00mm | 31.0dB | 2.40W | ATEX, CE, cURus, UR | 3950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

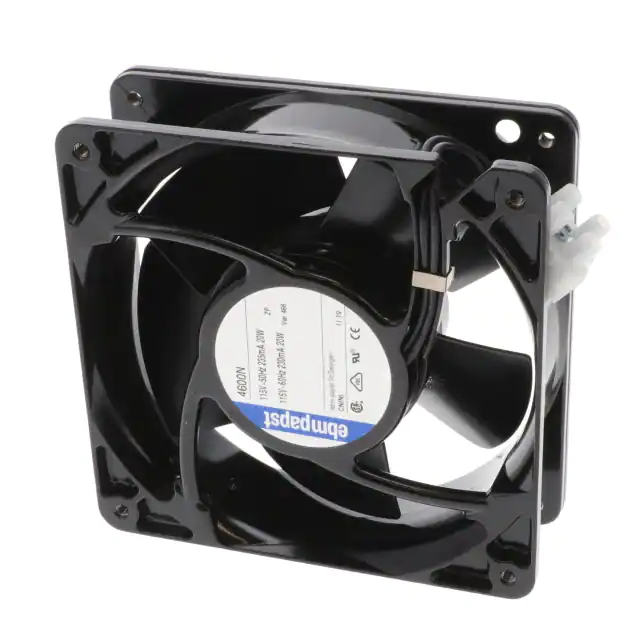

4600N-466FAN AXIAL 119X38MM 115VAC |
118 | - |
|
数据表 |
4000N | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 106.0 CFM (2.97m³/min) | - | Sintec | - | Tubeaxial | - | 38.00mm | 50.0dB(A) | 18.00W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|

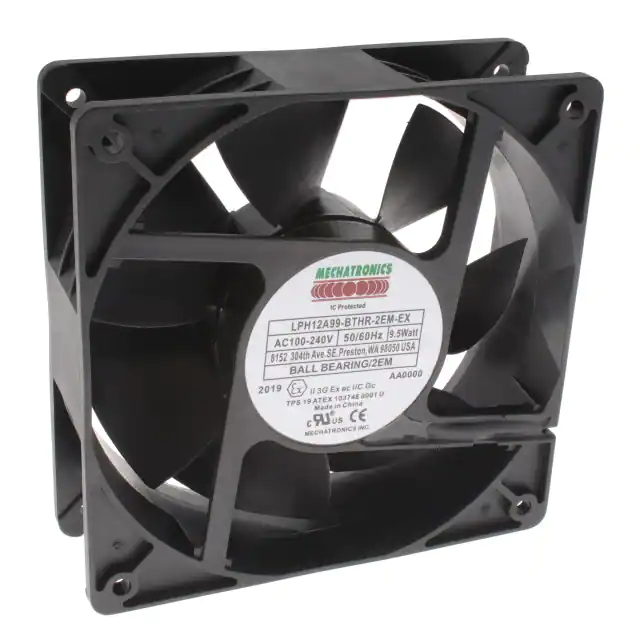

LPH12A99-BTHR-2EM-EXEC FAN AXIAL 120X120X38MM 100-24 |
139 | - |
|
数据表 |
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | 0.631 lb (286.20 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 38.50mm | 49.0dB(A) | 9.50W | ATEX | 3500 RPM | - | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
CF4113HBL-1000U-A99EC FAN 120X120X38MM 100-240V N.G |
266 | - |
|
数据表 |
CF | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 109.0 CFM (3.05m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Dual Voltage, Locked Rotor Protection, Electronic Commutation (EC) | 38.00mm | 44.9dB(A) | 5.10W | CE, cURus, TUV | 3600 RPM | -13 ~ 158°F (-25 ~ 70°C) | 2 Wire Leads | - |
|

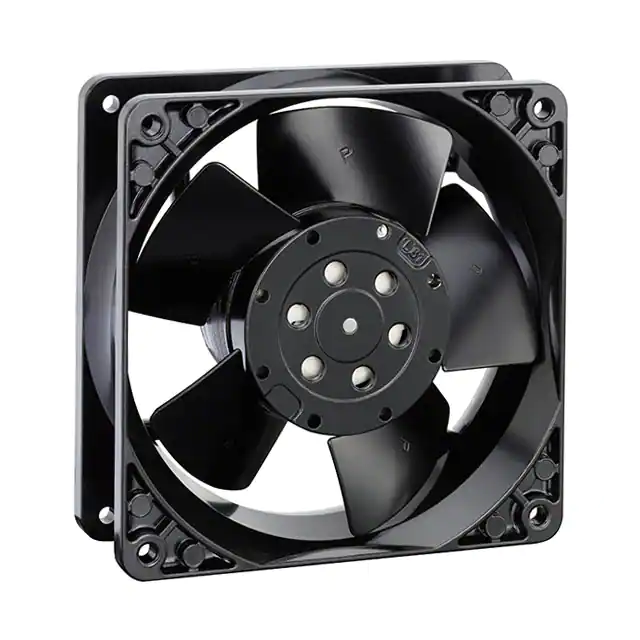

4650NFAN AXIAL 119X38MM 230VAC TERM |
354 | - |
|
数据表 |
4000N | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 94.1 CFM (2.63m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 19.00W | CE, CSA, UL, VDE | 2650 RPM | 14 ~ 131°F (-10 ~ 55°C) | 2 Terminals | - |
|
|
4600NFAN AXIAL 119X38MM 115VAC TERM |
122 | - |
|
数据表 |
4000N | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 106.0 CFM (2.97m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 50.0dB(A) | 18.00W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
|
4656NFAN AXIAL 119X38MM 230VAC TERM |
498 | - |
|
数据表 |
4000N | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 94.1 CFM (2.63m³/min) | - | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 47.0dB(A) | 19.00W | CE, CSA, UL, VDE | 2650 RPM | -40 ~ 185°F (-40 ~ 85°C) | 2 Terminals | - |
|

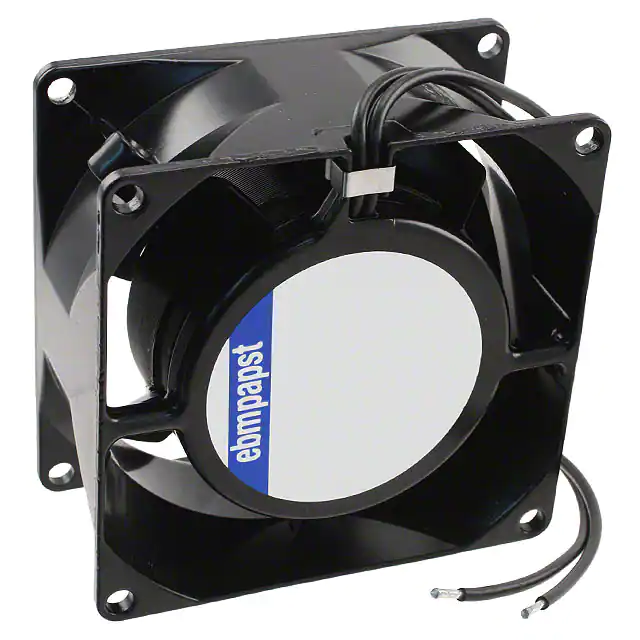

8500NFAN AXIAL 80X38MM 115VAC WIRE |
1,039 | - |
|
数据表 |
8000N | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 35.9 CFM (1.01m³/min) | - | Sintec | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 34.0dB(A) | 11.00W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 167°F (-10 ~ 75°C) | 2 Wire Leads | - |
|
4656ZFAN AXIAL 119X38MM 230VAC TERM |
230 | - |
|
数据表 |
4000Z | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 94.1 CFM (2.63m³/min) | - | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 40.0dB(A) | 19.00W | CE, CSA, UL, VDE | 2650 RPM | -40 ~ 167°F (-40 ~ 75°C) | 2 Terminals | - |
|

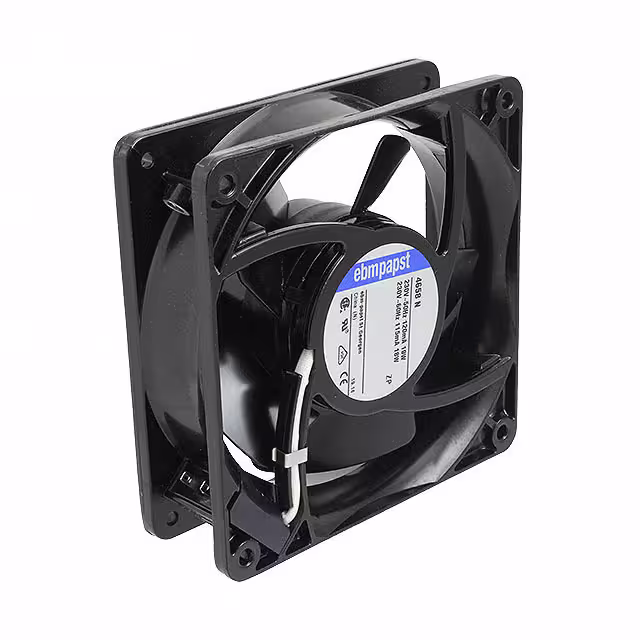

4658NAC TUBEAXIAL FAN |
475 | - |
|
数据表 |
- | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 99.9 CFM (2.80m³/min) | 0.363 in H2O (90.5 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 48.0dB(A) | 18.00W | CCC, CE, CSA, UL, VDE | 2950 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Terminals | - |
|

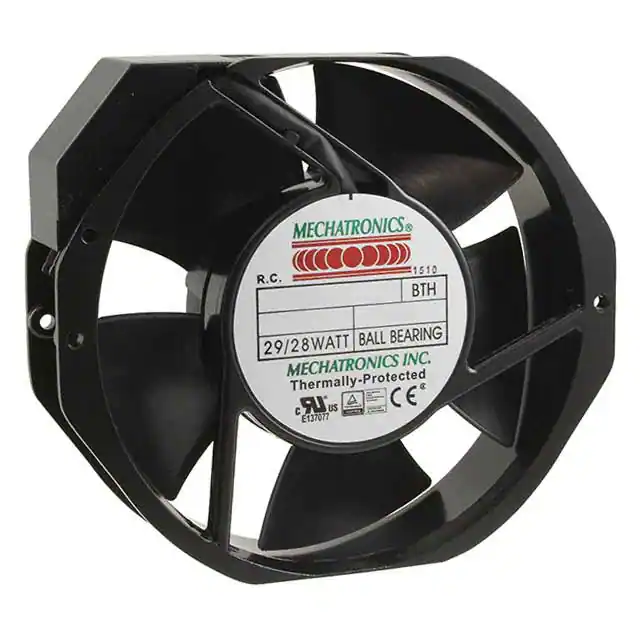

UF15AC12-BTHRFAN AXIAL 172X150X38MM 115VAC |
225 | - |
|
数据表 |
UF15AC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 212.0 CFM (5.94m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 38.00mm | 58.0dB(A) | 28.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|

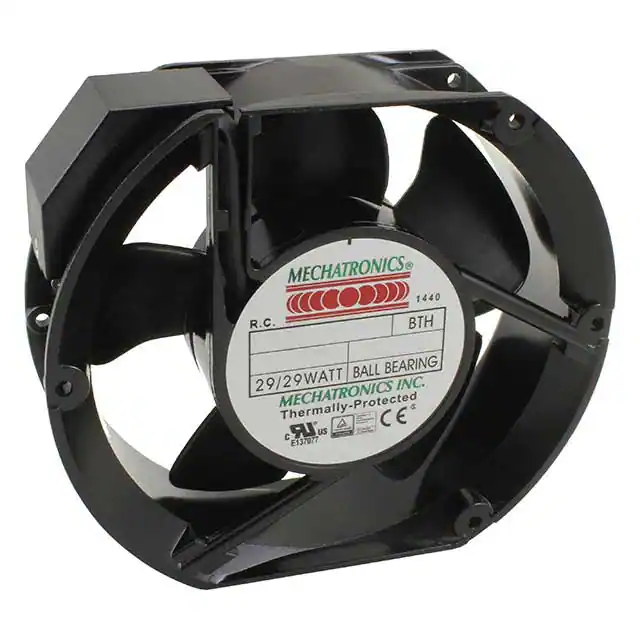

UF15PC23-BTHRFAN AXIAL 172X150X51MM 230VAC |
114 | - |
|
数据表 |
UF15PC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|

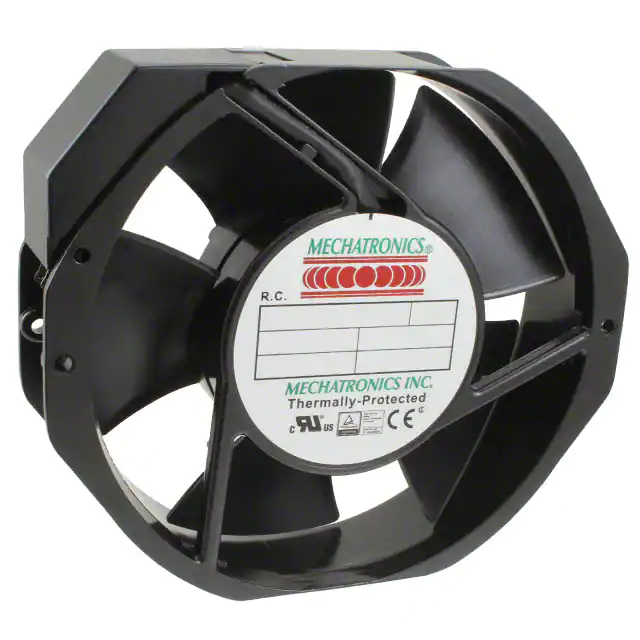

UF15AC23-BTHRFAN AXIAL 172X150X38MM 230VAC |
111 | - |
|
数据表 |
UF15AC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 212.0 CFM (5.94m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 38.00mm | 58.0dB(A) | 26.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
4624NFAN AXIAL 119X38MM 24VAC TERM |
456 | - |
|
数据表 |
4000N | Box | Active | 24VAC | Square - 119mm L x 119mm H | 93.0 CFM (2.60m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 47.0dB(A) | 18.00W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
4606ZWFAN AXIAL 119X38MM 115VAC WIRE |
633 | - |
|
数据表 |
4000Z | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 105.9 CFM (2.97m³/min) | - | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 18.00W | - | 3100 RPM | - | 2 Wire Leads | - |
|
8830NFAN AXIAL 80X38MM 115VAC WIRE |
944 | - |
|
数据表 |
8000N | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 21.2 CFM (0.594m³/min) | - | Sintec | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 21.0dB(A) | 8.00W | CE, CSA, UL, VDE | 1950 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Wire Leads | - |
|
OA172SAP-22-1TBXCFAN AXIAL 172X50.8MM 230VAC TERM |
1,362 | - |
|
数据表 |
OA172XC | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 2.2 lbs (997.9 g) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 61.0dB | 50.0W | cURus, TUV | 3300 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
OA172SAP-11-1TBXCFAN AXIAL 172X50.8MM 115VAC TERM |
348 | - |
|
数据表 |
OA172XC | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 2.2 lbs (997.9 g) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 61.0dB | 50.0W | cURus, TUV | 3300 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|

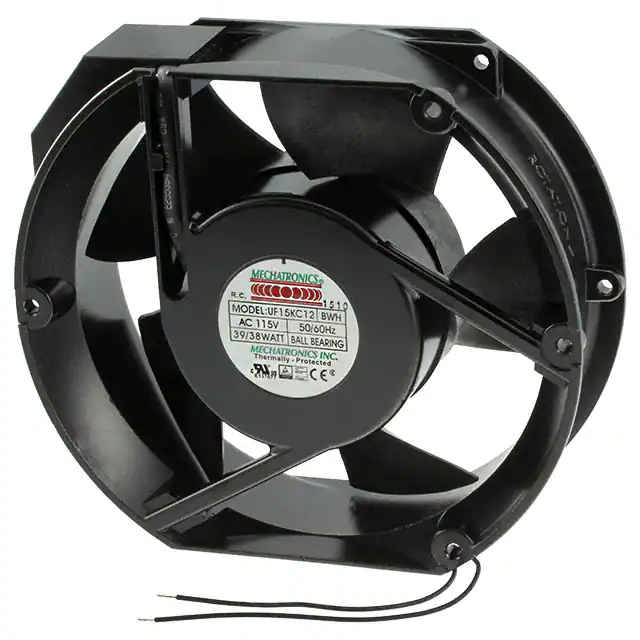

UF15KC12-BWHRFAN AXIAL 172X150X55MM 115VAC |
738 | - |
|
数据表 |
UF15KC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.00mm | 60.0dB(A) | 38.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 3 Wire Leads | - |
|
|
15038PB-B3L-EP-00FAN 150MM X 172MM X 38MM 230VAC |
374 | - |
|
数据表 |
15038PB | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 38.00mm | 56.0dB | 35.00W | - | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Terminals | - |
