交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA4715-23TBFAN AXIAL 120X38MM 230VAC TERM |
772 | - |
|
数据表 |
OA4715 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 44.0dB | 24.00W | cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
FAA1-12038NBHW31-AFAN AXIAL 119.5X38.5MM 115VAC |
389 | - |
|
数据表 |
FAA1-12038 | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 97.0 CFM (2.72m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 44.5dB(A) | 14.00W | CE, cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
UF12A12-STHRFAN AXIAL 120X38MM 115VAC |
1,394 | - |
|
数据表 |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 12.00W | CE, cUL, TUV, UL | 3100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
UF12A23-STHRFAN AXIAL 120X38MM 230VAC |
414 | - |
|
数据表 |
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 15.00W | CE, cUL, TUV, UL | 3100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
08038PB-A1L-EA-00FAN 80MM X 38MM 115VAC TERMINAL |
805 | - |
|
数据表 |
08038PB | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | 0.200 in H2O (49.8 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 38.0dB | 7.00W | - | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
3115FS-23W-B30-A00FAN AXIAL 80X38MM 230VAC WIRE |
643 | - |
|
数据表 |
FS | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.74 lb (335.66 g) | Tubeaxial | - | 38.00mm | 44.0dB | 8.00W | CE, CSA, TUV, UL, VDE | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06030PB-A1L-AA-00FAN 60MM X 30MM 115VAC WIRE |
118 | - |
|
数据表 |
06030PB | Bulk | Active | 115VAC | Square - 60mm L x 60mm H | 9.1 CFM (0.255m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | - | 30.00mm | 29.0dB | 4.00W | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
11938FB-A1N-EA-00FAN 119MM X 38MM 115VAC TERMINAL |
1,442 | - |
|
数据表 |
11938FB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 110.0 CFM (3.08m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 45.0dB | 14.40W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11938MB-A1N-EA-00FAN 119MM X 38MM 115VAC TERMINAL |
447 | - |
|
数据表 |
11938MB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.310 in H2O (77.2 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 41.0dB | 14.50W | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
MZB1001T02FAN AIR PUMP 20X1.85MM |
608 | - |
|
数据表 |
MZB1001 | Tray | Active | 10 ~ 20Vp-p | Square - 20mm L x 20mm H | - | 8.029 in H2O (2.0kPa) | - | 0.003 lb (1.36 g) | Air Pump | - | 4.05mm | - | 0.18W | - | - | 32 ~ 158°F (0 ~ 70°C) | - | - |
|
|
08025MB-A1L-AA-00FAN 80MM X 25MM 115VAC WIRE |
539 | - |
|
数据表 |
08025MB | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | - | 25.30mm | 31.0dB | 6.50W | - | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09225PB-A1L-EA-00FAN 92MM X 25MM 115VAC TERMINAL |
139 | - |
|
数据表 |
09225PB | Bulk | Active | 115VAC | Square - 92.5mm L x 92.5mm H | 34.5 CFM (0.966m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 38.0dB | 9.00W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
OA4715-12TBFAN AXIAL 120X38MM 120VAC TERM |
1,166 | - |
|
数据表 |
OA4715 | Box | Active | 120VAC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 44.0dB | 24.00W | cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

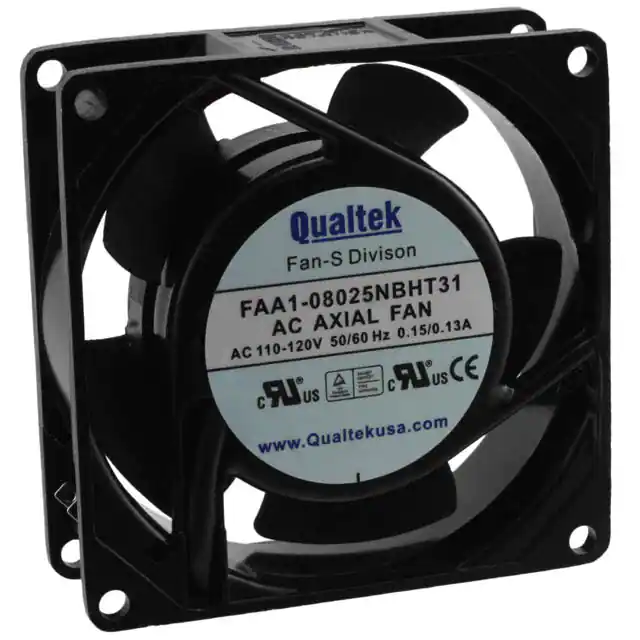

FAA1-08025NBHT31FAN AXIAL 80X25MM 115VAC TERM |
1,375 | - |
|
数据表 |
FAA1-08025 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | - | 25.00mm | 27.8dB(A) | 7.00W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

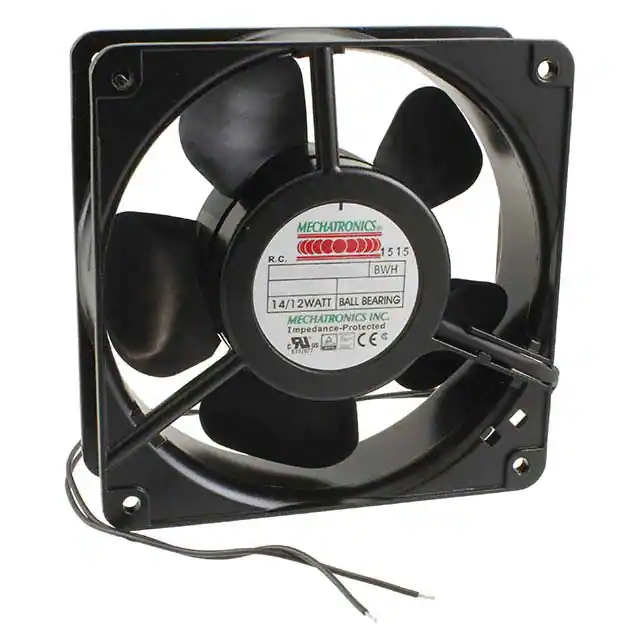

UF12A12-BWHRFAN AXIAL 120X38MM 115VAC |
979 | - |
|
数据表 |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 12.00W | CE, cUL, TUV, UL | 3100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|

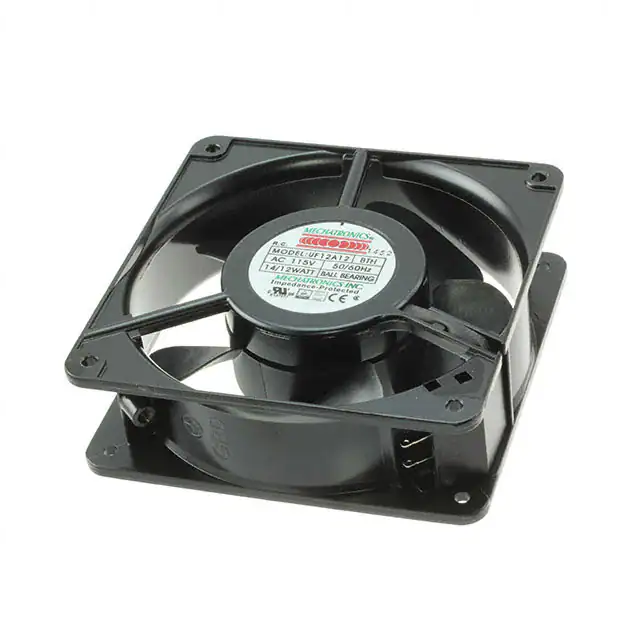

UF12A12-BTHRFAN AXIAL 120X38MM 115VAC |
490 | - |
|
数据表 |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 12.00W | CE, cUL, TUV, UL | 3100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|

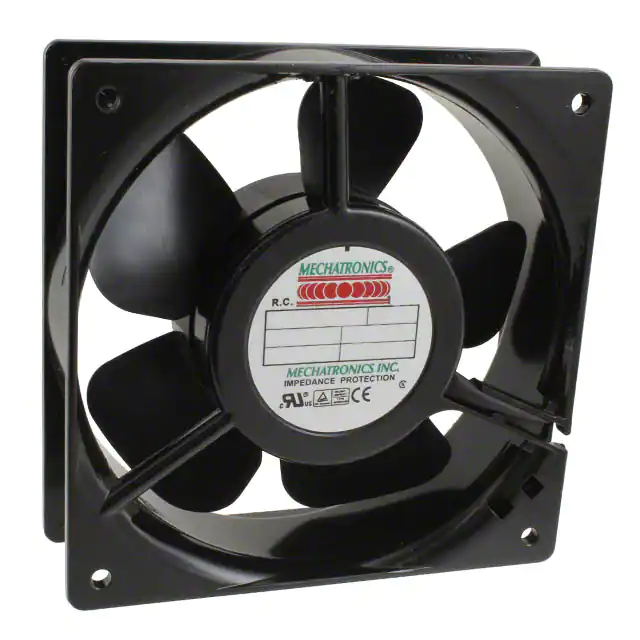

UF12A23-BTHRFAN AXIAL 120X38MM 230VAC |
257 | - |
|
数据表 |
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 15.00W | CE, cUL, TUV, UL | 3100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|

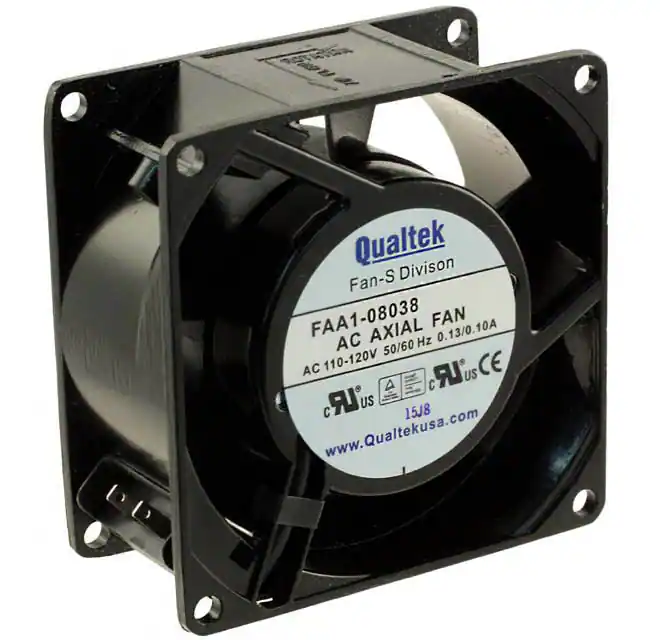

FAA1-08038NBMT31FAN AXIAL 80X38MM 115VAC TERM |
1,438 | - |
|
数据表 |
FAA1-08038 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | - | 38.00mm | 26.2dB(A) | 4.00W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
OA109AP-11-1TBFAN AXIAL 120X38MM 115VAC TERM |
16,146 | - |
|
数据表 |
OA109 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.50mm | 42.0dB | 15.00W | CE, cURus, TUV, UR | 3000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
|
OA125AP-11-1TBFAN AXIAL 119.5X26.2MM 115VAC |
697 | - |
|
数据表 |
OA125 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.73 lb (331.12 g) | Tubeaxial | - | 25.00mm | 42.0dB | 11.00W | cURus, TUV | 2900 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
