交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

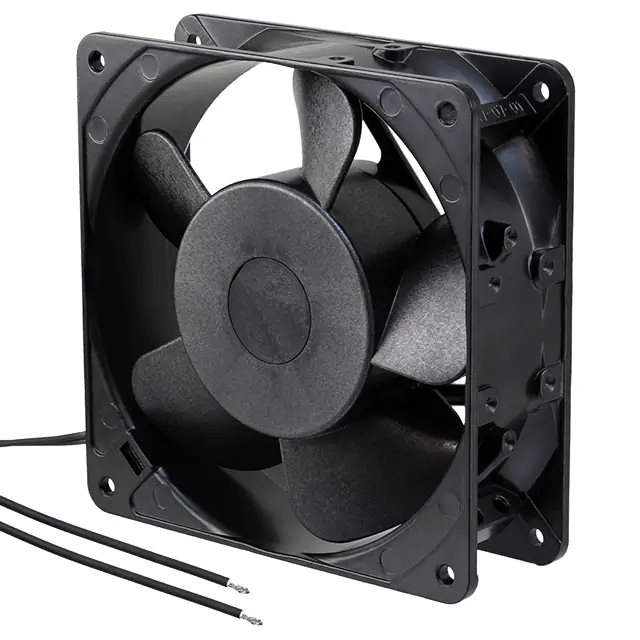

4715MS-12W-B10-A00FAN AXIAL 119X38MM 115VAC WIRE |
0 | - |
|
数据表 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 49.4 CFM (1.38m³/min) | 0.066 in H2O (16.6 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 28.0dB | 5.50W | CE, CSA, TUV, UL, VDE | 1450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
4715MS-12W-B20-A00FAN AXIAL 119X38MM 115VAC WIRE |
0 | - |
|
数据表 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 67.0 CFM (1.88m³/min) | 0.098 in H2O (24.5 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 30.0dB | 7.00W | CE, CSA, TUV, UL, VDE | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715MS-12W-B30-A00FAN AXIAL 119X38MM 115VAC WIRE |
0 | - |
|
数据表 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 88.2 CFM (2.47m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 37.0dB | 10.00W | CE, CSA, TUV, UL, VDE | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715MS-12W-B40-A00FAN AXIAL 119X38MM 115VAC WIRE |
0 | - |
|
数据表 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 95.0 CFM (2.66m³/min) | 0.259 in H2O (64.6 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 39.0dB | 13.00W | CE, CSA, TUV, UL, VDE | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715MS-12W-B50-A00FAN AXIAL 119X38MM 115VAC WIRE |
0 | - |
|
数据表 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.306 in H2O (76.4 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 41.0dB | 14.50W | CE, CSA, TUV, UL, VDE | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715MS-23T-B1A-A00FAN AXIAL 119X38MM 230VAC TERM |
0 | - |
|
数据表 |
MS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 49.4 CFM (1.38m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 28.0dB | 6.00W | CE, CSA, TUV, UL, VDE | 1450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715MS-23T-B2A-A00FAN AXIAL 119X38MM 230VAC TERM |
0 | - |
|
数据表 |
MS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 67.0 CFM (1.88m³/min) | 0.860 in H2O (214.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 30.0dB | 7.50W | CE, CSA, TUV, UL, VDE | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715MS-23T-B3A-A00FAN AXIAL 119X38MM 230VAC TERM |
0 | - |
|
数据表 |
MS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 88.2 CFM (2.47m³/min) | 0.208 in H2O (51.9 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 37.0dB | 11.00W | CE, CSA, TUV, UL, VDE | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715MS-23T-B4A-A00FAN AXIAL 119X38MM 230VAC TERM |
0 | - |
|
数据表 |
MS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 95.0 CFM (2.66m³/min) | 0.255 in H2O (63.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 39.0dB | 13.00W | CE, CSA, TUV, UL, VDE | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715MS-23T-B5A-A00FAN AXIAL 119X38MM 230VAC TERM |
0 | - |
|
数据表 |
MS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 41.0dB | 14.00W | CE, CSA, TUV, UL, VDE | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715MS-23W-B10-A00FAN AXIAL 119X38MM 230VAC WIRE |
0 | - |
|
数据表 |
MS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 49.4 CFM (1.38m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 28.0dB | 6.00W | CE, CSA, TUV, UL, VDE | 1450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715MS-23W-B20-A00FAN AXIAL 119X38MM 230VAC WIRE |
0 | - |
|
数据表 |
MS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 67.0 CFM (1.88m³/min) | 0.860 in H2O (214.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 30.0dB | 7.50W | CE, CSA, TUV, UL, VDE | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715MS-23W-B30-A00FAN AXIAL 119X38MM 230VAC WIRE |
0 | - |
|
数据表 |
MS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 88.2 CFM (2.47m³/min) | 0.208 in H2O (51.9 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 37.0dB | 11.00W | CE, CSA, TUV, UL, VDE | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715MS-23W-B40-A00FAN AXIAL 119X38MM 230VAC WIRE |
0 | - |
|
数据表 |
MS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 95.0 CFM (2.66m³/min) | 0.255 in H2O (63.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 39.0dB | 13.00W | CE, CSA, TUV, UL, VDE | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FDA2-22580NBHK4FFAN AXIAL 225X80MM BALL 115VAC |
0 | - |
|
数据表 |
HPLC, FDA2-22580 | Bulk | Active | 115VAC | Square - 260mm L x 260mm H | 670.0 CFM (18.76m³/min) | 0.807 in H2O (201.0 Pa) | Ball | 6.1 lbs (2.8 kg) | Tubeaxial | - | 80.00mm | 71.0dB(A) | 68.0W | CE, cURus, TUV | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | Terminal Block | - |
|
|
3115PS-10W-B10-B00FAN 100VAC 80X38MM WR |
0 | - |
|
数据表 |
PB | Box | Obsolete | 100VAC | Square - 80mm L x 80mm H | - | - | Ball | 0.604 lb (273.97 g) | Tubeaxial | - | 38.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3115PS-10W-B20-B00FAN 100VAC 80X38MM WR |
0 | - |
|
数据表 |
PB | Box | Obsolete | 100VAC | Square - 80mm L x 80mm H | - | - | Ball | 0.604 lb (273.97 g) | Tubeaxial | - | 38.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3115PS-10W-B30-B00FAN 100VAC 80X38MM WR |
0 | - |
|
数据表 |
PB | Box | Obsolete | 100VAC | Square - 80mm L x 80mm H | 32.1 CFM (0.899m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.604 lb (273.97 g) | Tubeaxial | - | 38.00mm | 38.0dB(A) | 7.00W | - | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3115PS-20W-B10-B00FAN 200VAC 80X38MM WR |
0 | - |
|
数据表 |
PB | Box | Obsolete | 200VAC | Square - 80mm L x 80mm H | - | - | Ball | 0.604 lb (273.97 g) | Tubeaxial | - | 38.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3115PS-20W-B20-B00FAN 200VAC 80X38MM WR |
0 | - |
|
数据表 |
PB | Box | Obsolete | 200VAC | Square - 80mm L x 80mm H | - | - | Ball | 0.604 lb (273.97 g) | Tubeaxial | - | 38.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
