交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4710PS-24T-B20-A00FAN AXIAL 119X25.5MM 240VAC TERM |
0 | - |
|
数据表 |
PS | Bulk | Obsolete | 240VAC | Square - 119mm L x 119mm H | 53.0 CFM (1.48m³/min) | 0.086 in H2O (21.5 Pa) | Ball | 0.8 lb (362.87 g) | Tubeaxial | - | 25.50mm | 30.0dB | 8.00W | CE, CSA, UL, VDE | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
5915PC-10T-B10-B00FAN AXIAL 172X38MM 100VAC TERM |
0 | - |
|
数据表 |
PC | Bulk | Obsolete | 100VAC | Rectangular/Rounded - 172mm L x 150mm H | 102.3 CFM (2.86m³/min) | 0.243 in H2O (60.7 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 38.00mm | 38.0dB | 18.00W | CE, CSA, UL, VDE | 1650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4710PS-24T-B30-A00FAN AXIAL 119X25.5MM 240VAC TERM |
0 | - |
|
数据表 |
PS | Bulk | Obsolete | 240VAC | Square - 119mm L x 119mm H | 70.6 CFM (1.98m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 0.8 lb (362.87 g) | Tubeaxial | - | 25.50mm | 38.0dB | 13.00W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715MS-20T-B50-BE0FAN AXIAL 119X38MM 200VAC TERM |
0 | - |
|
数据表 |
MS | Bulk | Active | 200VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.306 in H2O (76.4 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 41.0dB | 13.00W | CE, CSA, TUV, UL, VDE | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715TS-10T-B50-BM0FAN AXIAL 119X38MM 100VAC TERM |
0 | - |
|
数据表 |
TS | Bulk | Obsolete | 100VAC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 1.4 lbs (635 g) | Tubeaxial | - | 38.00mm | 50.0dB | 17.00W | CE, UL, VDE | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
|
5915PC-20T-B10-B00FAN AXIAL 172X38MM 200VAC TERM |
0 | - |
|
数据表 |
PC | Bulk | Obsolete | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 102.3 CFM (2.86m³/min) | 0.243 in H2O (60.7 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 38.00mm | 38.0dB | 18.00W | CE, CSA, UL, VDE | 1650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715TS-10T-B5A-B00FAN AXIAL 119X38MM 100VAC TERM |
0 | - |
|
数据表 |
TS | Bulk | Obsolete | 100VAC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 38.00mm | 50.0dB | 17.00W | CE, UL, VDE | 3100 RPM | 14 ~ 149°F (-10 ~ 65°C) | 2 Terminals | - |
|
|
4715TS-20T-B50-BM0FAN AXIAL 119X38MM 200VAC TERM |
0 | - |
|
数据表 |
TS | Bulk | Obsolete | 200VAC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 1.4 lbs (635 g) | Tubeaxial | - | 38.00mm | 50.0dB | 17.00W | CE, UL, VDE | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Terminals | - |
|
|
4715TS-20T-B5A-B00FAN AXIAL 119X38MM 200VAC TERM |
0 | - |
|
数据表 |
TS | Bulk | Obsolete | 200VAC | Square - 119mm L x 119mm H | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 38.00mm | 50.0dB | 17.00W | CE, UL, VDE | 3100 RPM | 14 ~ 149°F (-10 ~ 65°C) | 2 Terminals | - |
|
|
5915PC-10T-B30-S00FAN AXIAL 172X38MM 100VAC TERM |
0 | - |
|
数据表 |
PC | Bulk | Obsolete | 100VAC | Rectangular/Rounded - 172mm L x 150mm H | 187.1 CFM (5.24m³/min) | 0.655 in H2O (163.2 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 38.00mm | 53.0dB | 40.00W | CE, CSA, UL, VDE | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
5915PC-20T-B30-S00FAN AXIAL 172X38MM 200VAC TERM |
0 | - |
|
数据表 |
PC | Bulk | Obsolete | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 187.1 CFM (5.24m³/min) | 0.655 in H2O (163.2 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 38.00mm | 53.0dB | 40.00W | CE, CSA, UL, VDE | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715MS-20T-B50-B00FAN AXIAL 119X38MM 200VAC TERM |
0 | - |
|
数据表 |
MS | Bulk | Obsolete | 200VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.306 in H2O (76.4 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 41.0dB | 13.00W | CE, CSA, TUV, UL, VDE | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
5915PC-22T-B30-S00FAN AXIAL 172X38MM 220VAC TERM |
0 | - |
|
数据表 |
PC | Bulk | Obsolete | 220VAC | Rectangular/Rounded - 172mm L x 150mm H | 187.1 CFM (5.24m³/min) | 0.655 in H2O (163.2 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 38.00mm | 53.0dB | 40.00W | CE, CSA, UL, VDE | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

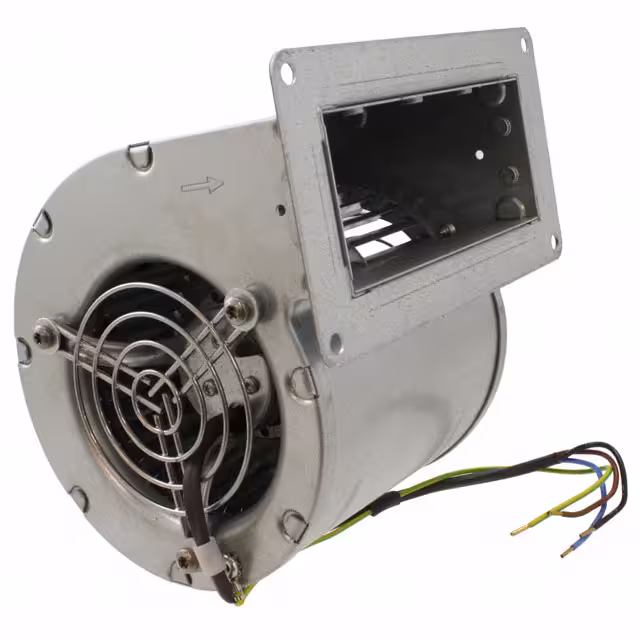

D2E097-CB01-48FAN BLWR CENT 144X140MM 230VAC |
0 | - |
|
数据表 |
D2E097 | Bulk | Obsolete | 230VAC | Rectangular - 144mm L x 137mm H (97mm Dia) | 106.0 CFM (2.97m³/min) | - | Ball | 2.9 lbs (1.3 kg) | Blower, Centrifugal | - | 140.0mm | 47.0dB(A) | 42.00W | UL | 1650 RPM | - | 4 Wire Leads | - |
|
|
4710PS-23T-B3A-A00FAN AXIAL 119X25.5MM 230VAC TERM |
0 | - |
|
数据表 |
PS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 70.6 CFM (1.98m³/min) | 0.160 in H2O (40.0 Pa) | Ball | 0.8 lb (362.87 g) | Tubeaxial | - | 25.50mm | 38.0dB | 11.00W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715FS-23T-B5A-D00FAN AXIAL 119X38MM 230VAC TERM |
0 | - |
|
数据表 |
FS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 110.0 CFM (3.08m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 45.0dB | 14.00W | CE, CSA, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715FS-23W-B50-D00FAN AXIAL 119X38MM 230VAC WIRE |
0 | - |
|
数据表 |
FS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 110.0 CFM (3.08m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 45.0dB | 14.00W | CE, CSA, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715MS-12T-B3A-A00FAN AXIAL 119X38MM 115VAC TERM |
0 | - |
|
数据表 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 88.2 CFM (2.47m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 37.0dB | 10.00W | CE, CSA, TUV, UL, VDE | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715MS-12T-B4A-A00FAN AXIAL 119X38MM 115VAC TERM |
0 | - |
|
数据表 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 95.0 CFM (2.66m³/min) | 0.259 in H2O (64.6 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 39.0dB | 13.00W | CE, CSA, TUV, UL, VDE | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
4715MS-12T-B5A-A00FAN AXIAL 119X38MM 115VAC TERM |
0 | - |
|
数据表 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.306 in H2O (76.4 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 41.0dB | 14.50W | CE, CSA, TUV, UL, VDE | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
