交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

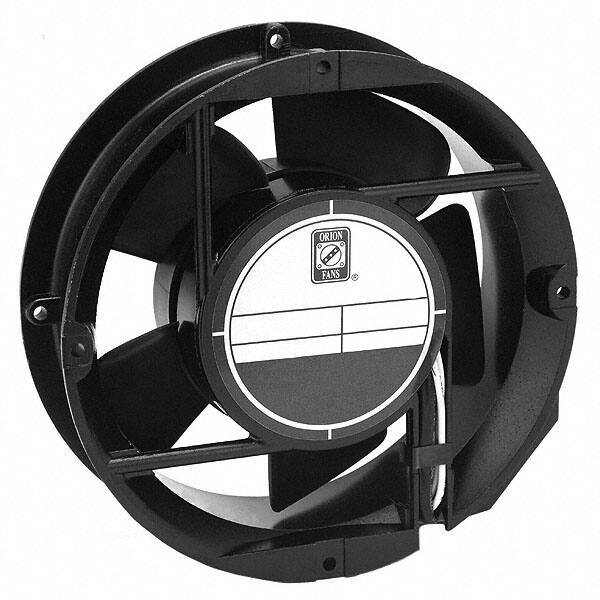

OA172AN-11-1TBFAN AXIAL 172X50.8MM 115VAC TERM Orion Fans |
5 | - |
|
数据表 |
OA172AN | Bulk | Active | 115VAC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | Capacitor | 50.80mm | 52.0dB | 35.00W | CE, cURus, TUV, UR | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
B.jpg)
|
OA109EC-UR-1WBFAN EC 120X38MM 90-265VAC Orion Fans |
23 | - |
|
数据表 |
OA109EC | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.64 lb (290.3 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 38.00mm | 43.0dB | 4.90W, 5.20W | CE, cURus, UR | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
OA172LFG221TFAN AXIAL 204X77.5MM 230VAC TERM Orion Fans |
5 | - |
|
数据表 |
OA172LFG | Box | Active | 230VAC | Square - 204mm L x 204mm H | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Capacitor, Kit | 77.50mm | 52.0dB | 35.00W | cURus, TUV | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
B.jpg)
|
OA172EC-UR-1WBEC FAN 172X152X51.6MM 90-265VAC Orion Fans |
2 | - |
|
数据表 |
OA172EC | Box | Active | 110/220VAC | Rectangular/Rounded - 172mm L x 152mm H | 220.0 CFM (6.16m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 1.5 lbs (680.4 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 51.60mm | 55.0dB | 12.50W | CE, cURus, TUV, UR | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OA172LFG111TFAN AXIAL 204X77.5MM 115VAC TERM Orion Fans |
4 | - |
|
数据表 |
OA172LFG | Box | Active | 115VAC | Square - 204mm L x 204mm H | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Capacitor, Kit | 77.50mm | 52.0dB | 35.00W | cURus, TUV | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
OA180APL-11-3TBFAN AC 180X65 115V BALL Orion Fans |
19 | - |
|
数据表 |
OA180APL | Bulk | Active | 115VAC | Square - 180mm L x 180mm H | 210.0 CFM (5.88m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | - | 65.00mm | 40.0dB(A) | 38.00W | CE, cURus, TUV, UR | 1650 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|
|
OA180APL-11-3WBFAN AC 180X65 115V BALL Orion Fans |
0 | - |
|
数据表 |
OA180APL | Bulk | Active | 115VAC | Square - 180mm L x 180mm H | 210.0 CFM (5.88m³/min) | 0.430 in H2O (107.0 Pa) | Ball | - | Tubeaxial | - | 65.00mm | 40.0dB(A) | 38.00W | CE, cURus, TUV, UR | 1650 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
OA180APL-11-1WBFAN AXIAL 180X65MM 115VAC WIRE Orion Fans |
11 | - |
|
数据表 |
OA180APL | Box | Active | 115VAC | Square - 180mm L x 180mm H | 405.0 CFM (11.34m³/min) | 0.830 in H2O (206.7 Pa) | Ball | 4 lbs (1.8 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 65.00mm | 60.0dB | 70.0W | cURus, TUV | 3300 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
OAB13372-22-1WBFAN IMP MTRZD 133X72MM 230VAC W/ Orion Fans |
20 | - |
|
数据表 |
OAB13372 | Box | Active | 230VAC | Round - 133mm Dia | 188.0 CFM (5.26m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 2 lbs (907.2 g) | Motorized Impellers | Thermal Overload Protector (TOP) | 72.50mm | 60.0dB | 39.00W | - | 3200 RPM | -40 ~ 140°F (-40 ~ 60°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
OA254AN-11-3TBFAN AXIAL 254X89MM 115VAC TERM Orion Fans |
3 | - |
|
数据表 |
OA254AN | Box | Active | 115VAC | Round - 254mm Dia | 320.0 CFM (8.96m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 5.4 lbs (2.4 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 89.00mm | 48.0dB | 32.00W | CE, cURus, TUV, UR | 1100 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
