交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

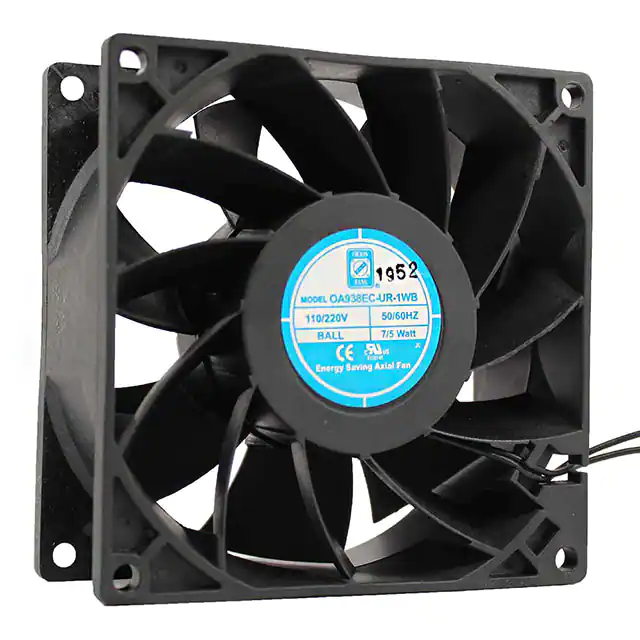

OA938EC-UR-1WBEC FAN 92X38MM 85-265VAC 60CFM Orion Fans |
35 | - |
|
数据表 |
OA938EC | Box | Active | 110/220VAC | Square - 92mm L x 92mm H | 60.0 CFM (1.68m³/min) | 0.270 in H2O (67.2 Pa) | Ball | 0.420 lb (190.51 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 38.00mm | 43.0dB | 2.20W | CE, cURus, TUV, UR | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

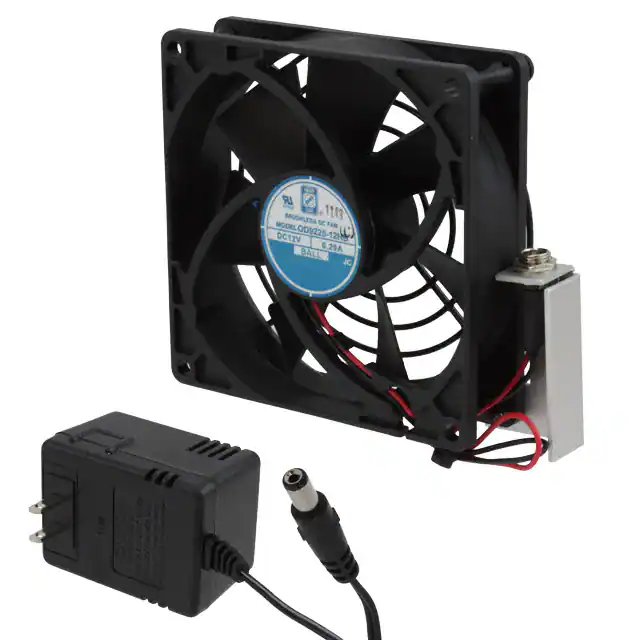

OD9225-SPOTFAN AXIAL 92.5X25MM 120VAC Orion Fans |
12 | - |
|
数据表 |
OD9225 | Bulk | Active | 120VAC | Square - 92.5mm L x 92.5mm H | 50.0 CFM (1.40m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Kit, Thermal Overload Protector (TOP) | 25.00mm | 23~35dB | 19.00W | - | 1500 RPM | 14 ~ 158°F (-10 ~ 70°C) | Cord and Plug | - |
|
OA109AP-11-1TBXCIP55FAN AC 120X38 115V W/IP55 Orion Fans |
10 | - |
|
数据表 |
OA109 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 104.0 CFM (2.91m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 42.0dB(A) | 15.00W | CE, cURus, TUV, UR | 3000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
OA5920-23TBFAN AXIAL 172X50.8MM 230VAC TERM Orion Fans |
9 | - |
|
数据表 |
OA5920 | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 180.0 CFM (5.04m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | Thermal Overload Protector (TOP) | 50.80mm | 55.0dB | 41.00W | cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

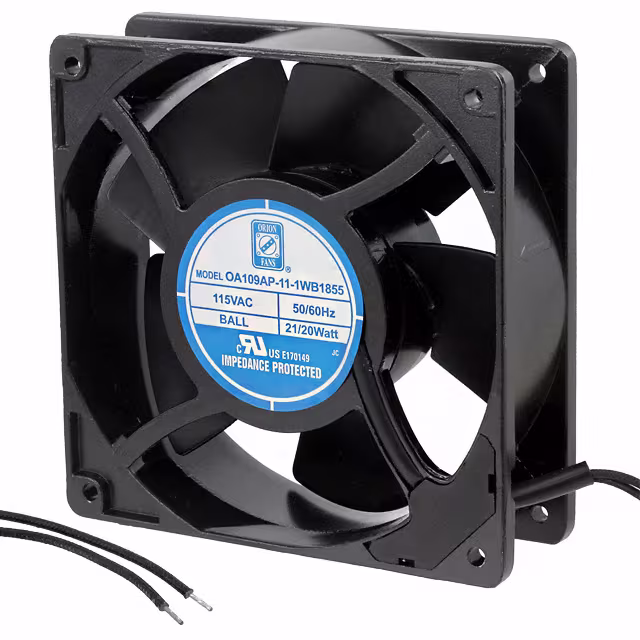

OA109AP-11-1WB1855FAN AXIAL 119.5X38.5MM 115VAC Orion Fans |
19 | - |
|
数据表 |
OA109 | Box | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 105.0 CFM (2.94m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 38.50mm | 48.0dB | 20.00W | cURus, TUV | 3100 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

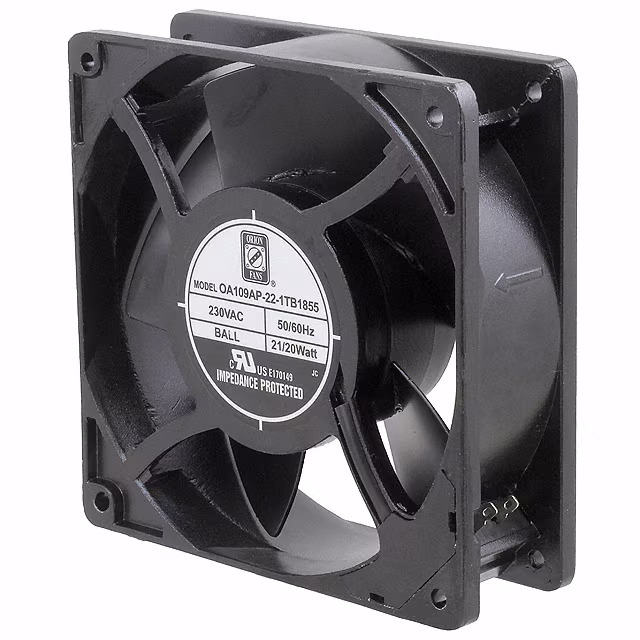

OA109AP-22-1TB1855FAN AXIAL 119.5X38.5MM 230VAC Orion Fans |
10 | - |
|
数据表 |
OA109 | Box | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 105.0 CFM (2.94m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 38.50mm | 48.0dB | 10.00W | cURus, TUV | 3100 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|

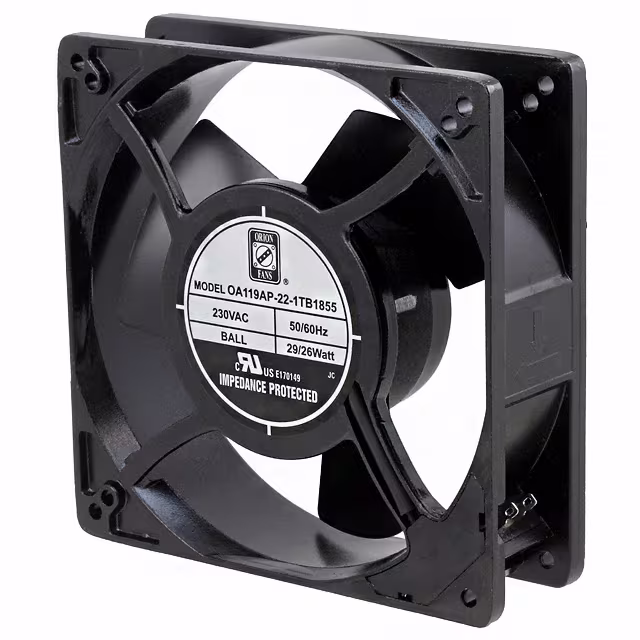

OA119AP-22-1TB1855FAN AXIAL 127X38.5MM 230VAC TERM Orion Fans |
19 | - |
|
数据表 |
OA119 | Box | Active | 230VAC | Square - 127mm L x 127mm H | 128.0 CFM (3.58m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 1.4 lbs (635 g) | Tubeaxial | - | 38.50mm | 48.0dB | 26.00W | cURus, TUV | 2950 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|

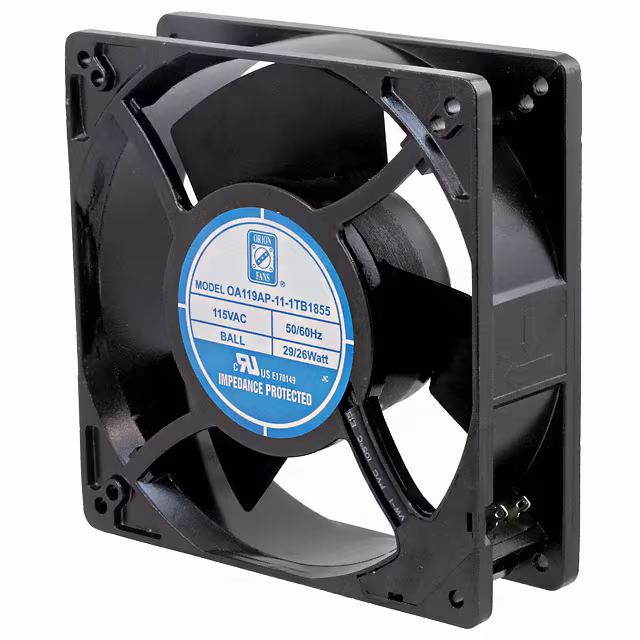

OA119AP-11-1TB1855FAN AXIAL 127X38.5MM 115VAC TERM Orion Fans |
14 | - |
|
数据表 |
OA119 | Box | Active | 115VAC | Square - 127mm L x 127mm H | 128.0 CFM (3.58m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 1.4 lbs (635 g) | Tubeaxial | - | 38.50mm | 48.0dB | 26.00W | cURus, TUV | 2950 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
OA172SAP-11-2WBAC FAN 172MM X 51MM Orion Fans |
5 | - |
|
数据表 |
OA172SA | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | - | Tubeaxial | - | 51.00mm | 39.8dB(A) | 20.00W | CE, cURus, TUV, UR | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
OA172SAP-11-1TBIP55FAN AXIAL 172X51MM 115VAC TERM Orion Fans |
24 | - |
|
数据表 |
OA172SAP | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 2.6 lbs (1.2 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB | 31.00W | cURus, TUV | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
