交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109S072ULFAN 120X38MM 230VAC |
251 | - |
|
数据表 |
San Ace 120 | Box | Active | 230VAC | Square - 119mm L x 119mm H | 102.5 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 16.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
19028421AFAN AXIAL 120X38MM 220VAC MX3B1 |
141 | - |
|
数据表 |
Muffin XL AC | Box | Active | 220VAC | Square - 120mm L x 120mm H | 100.0 CFM (2.80m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 1 lb (453.59 g) | Tubeaxial | - | 38.00mm | 51.0dB(A) | 18.00W | CE, cUL, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

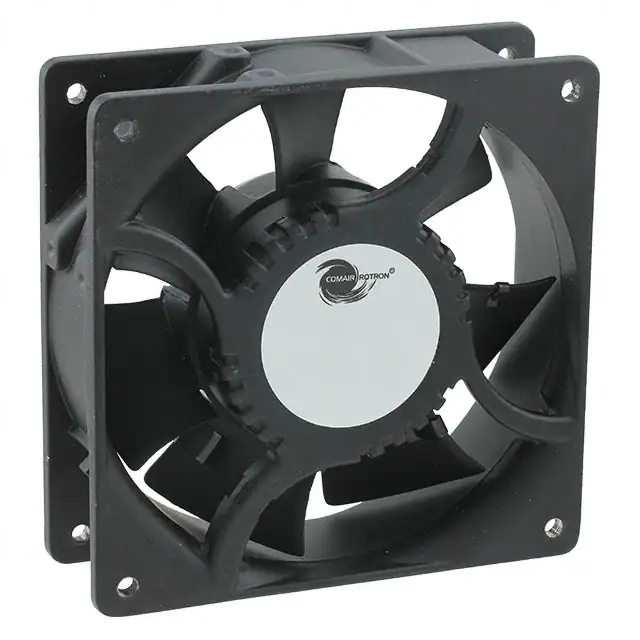

17000539AFAN AXIAL 120X38MM CR1238EC-4000 |
329 | - |
|
数据表 |
- | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.430 in H2O (107.0 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 38.00mm | 56.0dB(A) | 10.00W | CE, cUL, UL | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|

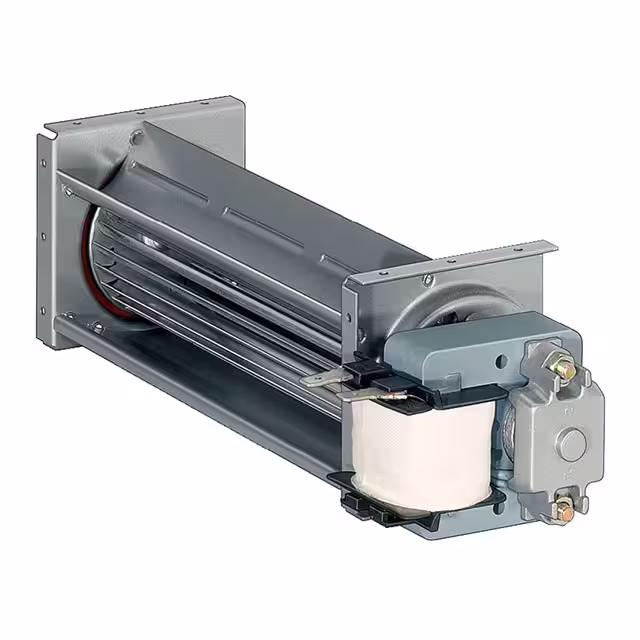

55444.50000FAN BLOWER CF 300X74MM 115VAC |
129 | - |
|
数据表 |
QL4 | Bulk | Active | 115VAC | Rectangular - 338mm L x 59mm H (40mm Dia) | 81.0 CFM (2.27m³/min) | 0.060 in H2O (15.0 Pa) | - | 1.8 lbs (816.5 g) | Blower, Cross Flow | - | 74.00mm | - | 18.00W | - | 2200 RPM | 32 ~ 140°F (0 ~ 60°C) | 2 Terminals | - |
|
15038PB-A1J-EA-00FAN 150MM X 172MM X 38MM 115VAC |
118 | - |
|
数据表 |
15038PB | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 102.3 CFM (2.86m³/min) | 0.243 in H2O (60.5 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 38.0dB | 18.00W | - | 1650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
15038PB-A1K-EA-00FAN 150MM X 172MM X 38MM 115VAC |
35 | - |
|
数据表 |
15038PB | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 166.0 CFM (4.65m³/min) | 0.472 in H2O (117.6 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 50.0dB | 22.00W | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
4580ZFAN AXIAL 119X38MM 230VAC TERM |
280 | - |
|
数据表 |
4000Z | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 67.6 CFM (1.89m³/min) | - | Sintec | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 30.0dB(A) | 13.00W | CE, CSA, UL, VDE | 1900 RPM | 14 ~ 149°F (-10 ~ 65°C) | 2 Terminals | - |
|
|
4624ZWFAN AXIAL 119X38MM 24VAC WIRE |
51 | - |
|
数据表 |
4000Z | Bulk | Active | 24VAC | Square - 119mm L x 119mm H | 105.9 CFM (2.97m³/min) | - | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 18.00W | - | 3100 RPM | - | 2 Wire Leads | - |
|
OD1232-SPOTFAN AXIAL 120X32MM BALL 120VAC |
63 | - |
|
数据表 |
OD1232 | Box | Active | 120VAC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Kit, Thermal Overload Protector (TOP) | 32.00mm | 20 ~ 47dB | 19.00W | - | 3750 RPM | 14 ~ 158°F (-10 ~ 70°C) | Cord and Plug | - |
|
4656TZFAN AXIAL 108X37MM 230VAC WIRE |
37 | - |
|
数据表 |
4600TZ | Bulk | Active | 230VAC | Round - 108mm Dia | 73.6 CFM (2.06m³/min) | - | Ball | 0.956 lb (433.63 g) | Tubeaxial | - | 37.00mm | 42.0dB(A) | 19.00W | CE, CSA, UL, VDE | 2600 RPM | -40 ~ 149°F (-40 ~ 65°C) | 2 Wire Leads | - |
|

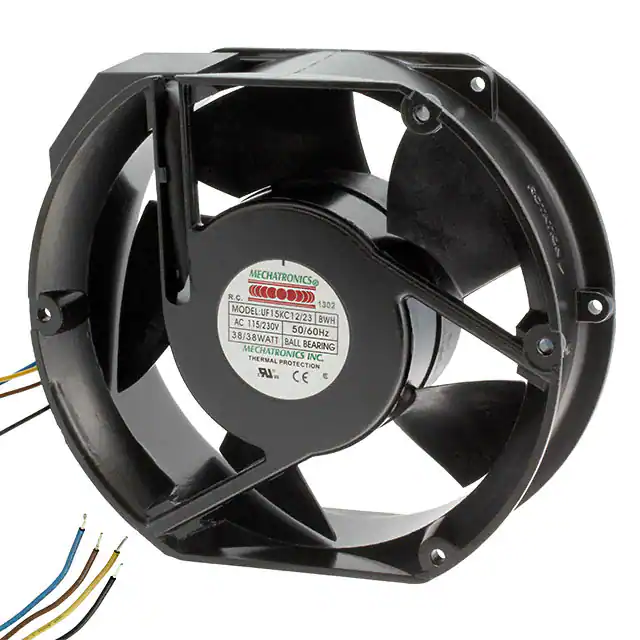

UF15KC12/23-BWHRFAN 172X150X55MM 115/230VAC |
60 | - |
|
数据表 |
UF15KC | Bulk | Active | 115/230VAC | Rectangular/Rounded - 172mm L x 150mm H | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.00mm | 60.0dB(A) | 38.00W | CE, cUL, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Wire Leads | - |
|
109-213FAN 80X20MM 115VAC |
53 | - |
|
数据表 |
San Ace 80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 18.7 CFM (0.524m³/min) | 0.126 in H2O (31.3 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | - | 20.00mm | 31.0dB(A) | 5.00W | CE, CSA, TUV, UL | 3000 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
|
109S092FAN 92X25MM 200VAC |
38 | - |
|
数据表 |
San Ace 92 | Box | Active | 200VAC | Square - 92mm L x 92mm H | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 25.00mm | 38.0dB(A) | 10.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|

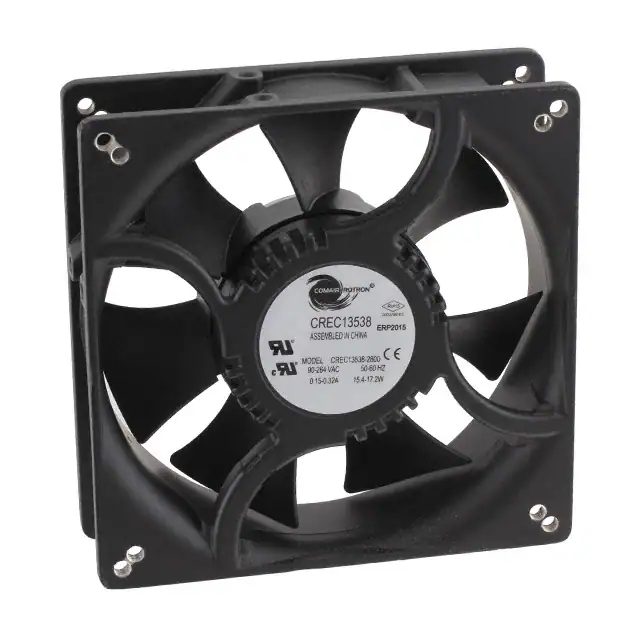

17000542AFAN AXL 135X38MM CR13538EC-2800 |
48 | - |
|
数据表 |
- | Box | Active | 100 ~ 240VAC | Square - 135mm L x 135mm H | 154.0 CFM (4.31m³/min) | 0.430 in H2O (107.0 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 38.00mm | 58.0dB(A) | 17.00W | CE, cUL, UL | 2800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|

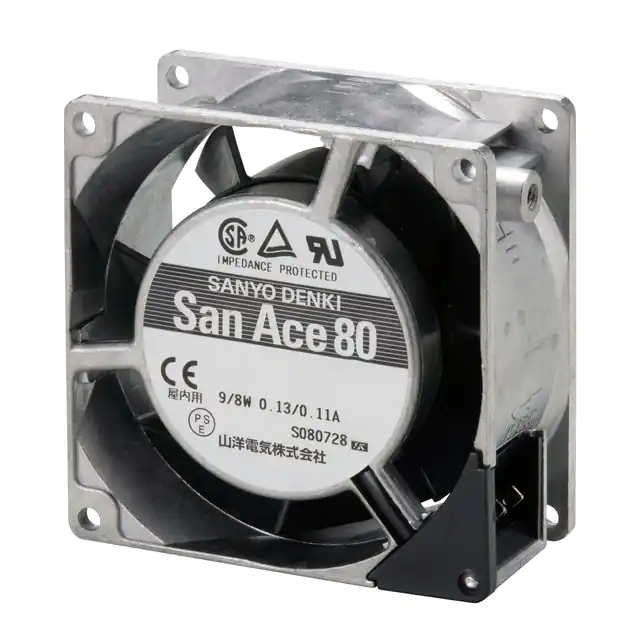

109-153FAN 80X38MM 115VAC |
79 | - |
|
数据表 |
San Ace 80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.177 in H2O (44.1 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.00mm | 39.0dB(A) | 8.00W | CE, CSA, PSE, TUV, UL | 3150 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
AFL12AUHE-00120X120X38MM 110 /230V AC FAN W/ |
88 | - |
|
数据表 |
AFL, EST | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 103.6 CFM (2.90m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC), Locked Rotor Protection | 38.00mm | 45.0dB(A) | 4.60W | - | 3200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | IP52 |
|
OA172AP-11-1WBFAN AXIAL 172X51MM 115VAC WIRE |
28 | - |
|
数据表 |
OA172AP | Box | Active | 115VAC | Round - 172mm Dia | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | - | 51.00mm | 52.0dB | 35.00W | cURus, TUV | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
OA172SAPL-11-1TBIP55FAN AXIAL 172X38MM 115VAC TERM |
40 | - |
|
数据表 |
OA172SAPL | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 228.0 CFM (6.38m³/min) | 0.870 in H2O (216.7 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 38.50mm | 58.0dB | 28.00W | cURus, TUV | 3400 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
OA172SAP-11-2TBFAN AXIAL 172X50.8MM 115VAC TERM |
33 | - |
|
数据表 |
OA172SAP | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 2.6 lbs (1.2 kg) | Tubeaxial | Capacitor | 51.00mm | 42.0dB | 20.00W | cURus, TUV | 2400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|

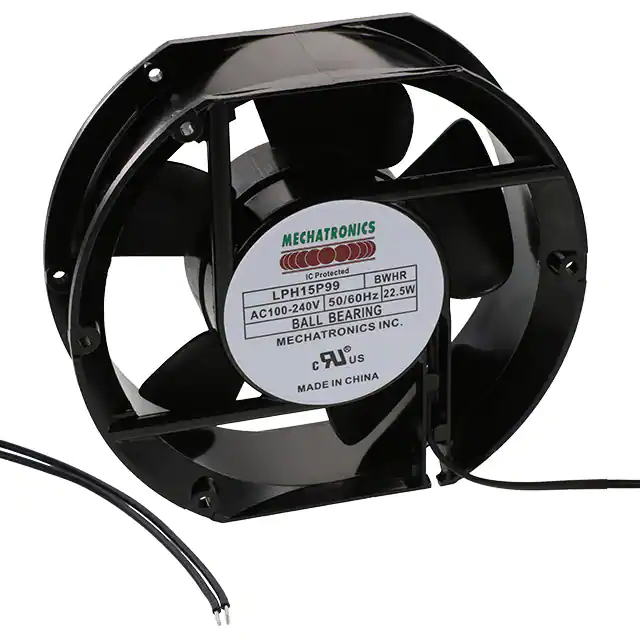

LPH15P99-BWHRFAN AXIAL 172X51.5MM 100-240VAC |
69 | - |
|
数据表 |
LPH15P99 | Bulk | Active | 100 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 228.0 CFM (6.38m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 51.50mm | 55.0dB(A) | 22.50W | CE, cUL, TUV, UL | 3200 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
