交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CF4113MBT-000U-A99FAN AXIAL 120X38MM 100-240V |
0 | - |
|
数据表 |
CF | Bulk | Obsolete | 110/230VAC | Square - 120mm L x 120mm H | 90.1 CFM (2.52m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 0.595 lb (269.89 g) | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 38.00mm | 40.2dB(A) | 3.40W | CE, CUR, TUV, UL | 3000 RPM | -13 ~ 158°F (-25 ~ 70°C) | 2 Terminals | - |
|
109S096FAN 92X25MM 100VAC |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 23.0 CFM (0.644m³/min) | 0.065 in H2O (16.2 Pa) | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 25.00mm | 27.0dB(A) | 6.00W | CE, CSA, PSE, TUV, UL | 1700 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
109S095FAN AXIAL 92X25MM 100VAC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 34.7 CFM (0.972m³/min) | 0.161 in H2O (40.2 Pa) | - | 0.644 lb (292.11 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 35.0dB(A) | 7.00W | CE, CSA, PSE, TUV, UL | 2800 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
|
|
109S192FAN AXIAL 92X25MM 200VAC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 200VAC | Square - 92mm L x 92mm H | 23.0 CFM (0.644m³/min) | 0.065 in H2O (16.2 Pa) | - | 0.644 lb (292.11 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 27.0dB(A) | 7.00W | CE, CSA, PSE, TUV, UL | 1700 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
|
|
109S193FAN AXIAL 92X25MM 115VAC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 23.0 CFM (0.644m³/min) | 0.065 in H2O (16.2 Pa) | - | 0.644 lb (292.11 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 27.0dB(A) | 6.00W | CE, CSA, PSE, TUV, UL | 1700 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
|
|
109S194FAN AXIAL 92X25MM 230VAC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 23.0 CFM (0.644m³/min) | 0.065 in H2O (16.2 Pa) | - | 0.644 lb (292.11 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 27.0dB(A) | 7.00W | CE, CSA, PSE, TUV, UL | 1700 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
|
UF15AC12-BTHR-CCFAN AXIAL 172X150X38MM 115VAC |
0 | - |
|
数据表 |
UF15AC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 212.0 CFM (5.94m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 38.00mm | 58.0dB(A) | 28.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
UF15PC12-BTHR-CCFAN AXIAL 172X150X51MM 115VAC |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
_Series.jpg)
|
8880TAFAN AXIAL 76X37MM 230VAC WIRE |
0 | - |
|
数据表 |
8000TA | Bulk | Active | 230VAC | Round - 76mm Dia | 13.5 CFM (0.378m³/min) | - | Sintec | 0.816 lb (370.13 g) | Tubeaxial | - | 37.00mm | 15.0dB(A) | 9.00W | CE, CSA, UL, VDE | 1650 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Wire Leads | - |
|
|
8880TVFAN AXIAL 76X37MM 230VAC WIRE |
0 | - |
|
数据表 |
8000TV | Bulk | Active | 230VAC | Round - 76mm Dia | 14.1 CFM (0.395m³/min) | - | Sintec | 0.816 lb (370.13 g) | Tubeaxial | - | 37.00mm | 15.0dB(A) | 9.00W | CE, CSA, UL, VDE | 1650 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Wire Leads | - |
|
3950FAN AXIAL 92X25MM 230VAC TERM |
0 | - |
|
数据表 |
3900 | Bulk | Obsolete | 230VAC | Square - 92mm L x 92mm H | 34.7 CFM (0.972m³/min) | - | Sintec | 0.617 lb (279.87 g) | Tubeaxial | - | 25.00mm | 35.0dB(A) | 11.00W | CE, CSA, UL, VDE | 2650 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|
|
8500TVFAN AXIAL 76X37MM 115VAC WIRE |
0 | - |
|
数据表 |
8000TV | Bulk | Obsolete | 115VAC | Round - 76mm Dia | 27.7 CFM (0.776m³/min) | - | Sintec | 0.816 lb (370.13 g) | Tubeaxial | - | 37.00mm | 32.0dB(A) | 11.00W | CE, CSA, UL, VDE | 3150 RPM | 14 ~ 167°F (-10 ~ 75°C) | 2 Wire Leads | - |
|
|
109S081FAN AXIAL 120X25MM 100VAC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 100VAC | Square - 120mm L x 120mm H | 63.6 CFM (1.78m³/min) | 0.106 in H2O (26.4 Pa) | - | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 35.0dB(A) | 8.50W | CE, CSA, PSE, TUV, UL | 2350 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
|
|
109S083FAN AXIAL 120X25MM 115VAC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 63.6 CFM (1.78m³/min) | 0.106 in H2O (26.4 Pa) | - | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 35.0dB(A) | 8.50W | CE, CSA, PSE, TUV, UL | 2350 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
|
|
109S089FAN AXIAL 120X25MM 230VAC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 63.6 CFM (1.78m³/min) | 0.106 in H2O (26.4 Pa) | - | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 35.0dB(A) | 8.50W | CE, CSA, PSE, TUV, UL | 2350 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
|
55442.60082FAN BLOWER CF 240X79MM 115VAC |
0 | - |
|
数据表 |
QLK45 | Bulk | Obsolete | 115VAC | Rectangular - 331mm L x 71mm H (45mm Dia) | 107.0 CFM (3.00m³/min) | 0.333 in H2O (83.0 Pa) | Sleeve | 2.4 lbs (1.1 kg) | Blower, Cross Flow | - | 79.00mm | - | 41.00W | - | 2100 RPM | - | Terminal Block | - |
|
109-151FAN 80X38MM 200VAC |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 200VAC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.177 in H2O (44.1 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.00mm | 39.0dB(A) | 8.00W | CE, CSA, PSE, TUV, UL | 3150 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
UF15KCR23-BWHRFAN AXIAL 172X150X55MM 230VAC |
0 | - |
|
数据表 |
UF15KCR | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 241.0 CFM (6.75m³/min) | 0.730 in H2O (181.8 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Reverse Air Flow, Thermal Overload Protector (TOP) | 55.00mm | 66.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|

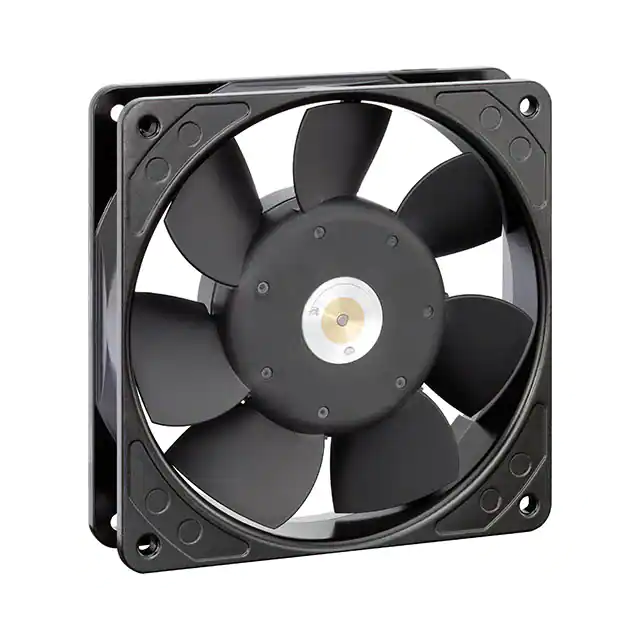

9906FAN AXIAL 119X25MM 115VAC TERM |
0 | - |
|
数据表 |
9900 | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 79.5 CFM (2.23m³/min) | - | Ball | 0.716 lb (324.77 g) | Tubeaxial | - | 25.00mm | 42.0dB(A) | 12.00W | CE, CSA, UL, VDE | 2850 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
8800TAFAN AXIAL 76X37MM 115VAC WIRE |
0 | - |
|
数据表 |
8000TA | Bulk | Active | 115VAC | Round - 76mm Dia | 20.0 CFM (0.560m³/min) | - | Sintec | 0.816 lb (370.13 g) | Tubeaxial | - | 37.00mm | 23.0dB(A) | 11.00W | CE, CSA, UL, VDE | 2450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
