交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA172AP-22-3WB230VAC 172X172X51MM |
0 | - |
|
数据表 |
OA172AP | Bulk | Active | 230VAC | Round - 172mm Dia | 135.0 CFM (3.78m³/min) | 0.430 in H2O (107.0 Pa) | Ball | - | Tubeaxial | - | 51.00mm | 33.0dB(A) | 16.00W | cURus, TUV | 1800 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
OA172AP-11-2WBFAN AXIAL 172X50.8MM 115VAC WIRE |
0 | - |
|
数据表 |
OA172AP | Bulk | Active | 115VAC | Round - 172mm Dia | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | - | 51.00mm | 42.0dB | 20.00W | cURus, TUV | 2400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|

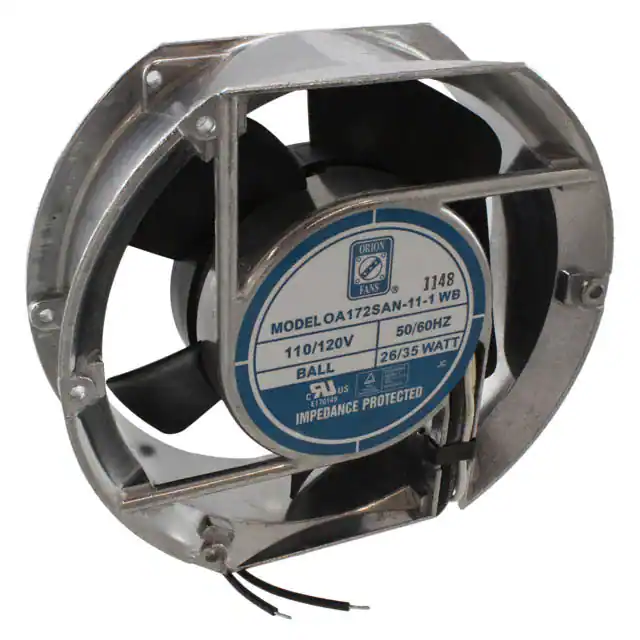

OA172SAN-11-2WBFAN AXIAL 172X50.8MM 115VAC WIRE |
0 | - |
|
数据表 |
OA172SAN | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 42.0dB | 20.00W | cURus | 2400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
4606TZFAN AXIAL 108X37MM 115VAC WIRE |
0 | - |
|
数据表 |
4600TZ | Bulk | Obsolete | 115VAC | Round - 108mm Dia | 82.4 CFM (2.31m³/min) | - | Ball | 0.948 lb (430.01 g) | Tubeaxial | - | 37.00mm | 45.0dB(A) | 18.00W | CE, CSA, UL, VDE | 2950 RPM | -40 ~ 167°F (-40 ~ 75°C) | 2 Wire Leads | - |
_Series.jpg)
|
8830TVFAN AXIAL 76X37MM 115VAC WIRE |
0 | - |
|
数据表 |
8000TV | Bulk | Active | 115VAC | Round - 76mm Dia | 15.9 CFM (0.445m³/min) | - | Sintec | 0.816 lb (370.13 g) | Tubeaxial | - | 37.00mm | 18.0dB(A) | 8.00W | CE, CSA, UL, VDE | 1850 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Wire Leads | - |
|
UF15AC12-BTLRFAN AXIAL 172X150X38MM 115VAC |
0 | - |
|
数据表 |
UF15AC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 103.0 CFM (2.88m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 38.00mm | 44.0dB(A) | 28.00W | CE, cUL, TUV, UL | 1700 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
UF15AC12-BTMRFAN AXIAL 172X150X38MM 115VAC |
0 | - |
|
数据表 |
UF15AC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | - | - | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 38.00mm | - | - | CE, cUL, TUV, UL | - | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
UF15AC23-BTLRFAN AXIAL 172X150X38MM 230VAC |
0 | - |
|
数据表 |
UF15AC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 103.0 CFM (2.88m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 38.00mm | 44.0dB(A) | 26.00W | CE, cUL, TUV, UL | 1700 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
UF15AC23-BTMRFAN AXIAL 172X150X38MM 230VAC |
0 | - |
|
数据表 |
UF15AC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | - | - | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 38.00mm | - | - | CE, cUL, TUV, UL | - | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
UF15PC12-BTLRFAN AXIAL 172X150X51MM 115VAC |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 106.0 CFM (2.97m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 37.0dB(A) | 31.00W | CE, cUL, TUV, UL | 1700 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
UF15PC12-BTMRFAN AXIAL 172X150X51MM 115VAC |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | - | - | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | - | - | CE, cUL, TUV, UL | - | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
UF15PC23-BTLRFAN AXIAL 172X150X51MM 230VAC |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 37.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
UF15PC23-BWHRFAN AXIAL 172X150X51MM 230VAC |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
|
UF17PC12-BTHRFAN AXIAL 172X51MM 115VAC TERM |
0 | - |
|
数据表 |
UF17PC | Bulk | Active | 115VAC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 55.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
UF17PC12-BTLRFAN AXIAL 172X51MM 115VAC TERM |
0 | - |
|
数据表 |
UF17PC | Bulk | Active | 115VAC | Round - 172mm Dia | 106.0 CFM (2.97m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 37.0dB(A) | 31.00W | CE, cUL, TUV, UL | 1700 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
UF17PC23-BTHRFAN AXIAL 172X51MM 230VAC TERM |
0 | - |
|
数据表 |
UF17PC | Bulk | Active | 230VAC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 55.0dB(A) | 29.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
UF17PC23-BTLRFAN AXIAL 172X51MM 230VAC TERM |
0 | - |
|
数据表 |
UF17PC | Bulk | Active | 230VAC | Round - 172mm Dia | 106.0 CFM (2.97m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 37.0dB(A) | 29.00W | CE, cUL, TUV, UL | 1700 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
UF17PC23-BWHRFAN AXIAL 172X51MM 230VAC WIRE |
0 | - |
|
数据表 |
UF17PC | Bulk | Active | 230VAC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 55.0dB(A) | 29.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
|
OA172SAPL-11-3WBIP55115VAC 150X172X38MM IP55 |
0 | - |
|
数据表 |
OA172SAPL | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 103.0 CFM (2.88m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 38.50mm | 44.0dB(A) | 26.00W | cURus, TUV | 1700 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
3906FAN AXIAL 92X25MM 115VAC TERM |
0 | - |
|
数据表 |
3900 | Bulk | Obsolete | 115VAC | Square - 92mm L x 92mm H | 41.2 CFM (1.15m³/min) | - | Ball | 0.617 lb (279.87 g) | Tubeaxial | - | 25.00mm | 40.0dB(A) | 9.00W | CE, CSA, UL, VDE | 3150 RPM | -40 ~ 176°F (-40 ~ 80°C) | 2 Terminals | - |
