共模扼流圈
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 封装/外壳 | 滤波器类型 | 行数 | 电流额定值（最大值） | 直流电阻 (DCR)（最大值） | 电压额定值 - 直流 | 电压额定值 - 交流 | 工作温度 | 阻抗 @ 频率 | 额定值 | 认证机构 | 特性 | 高度（最大值） | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST-202CMC 1A 2LN 600 OHM TH |
3,493 | - |
|
数据表 |
Vertical, No Base, 4 PC Pin | - | 2 | - | 1A | 40mOhm | 50V | - | 600 Ohms @ 100 MHz | -20°C ~ 75°C | - | - | - | - | - |
|
FE2X07-5-2NLCMC 2A 2LN TH |
3,682 | - |
|
数据表 |
Vertical, 4 PC Pin | - | 2 | - | 2A | 170mOhm | - | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82724J8302N040CMC 15MH 3A 2LN TH |
4,352 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 15 mH @ 10 kHz | 3A | 90mOhm (Typ) | 800V | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|

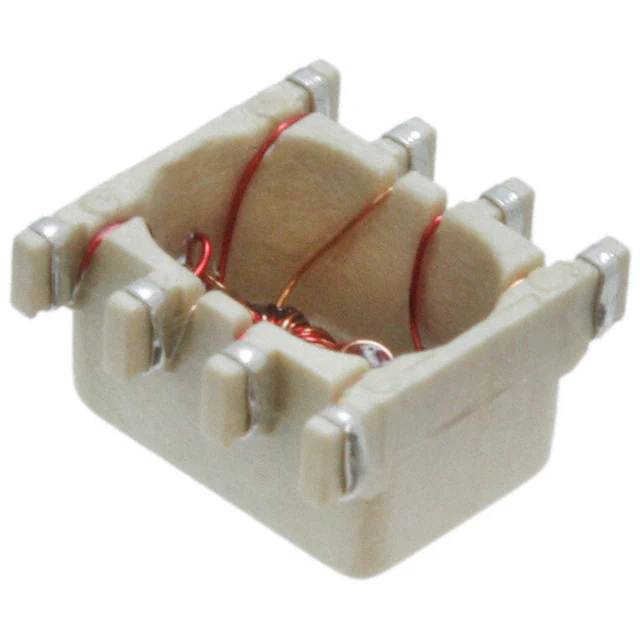

PE-68627NLCMC 4LN SMD |
2,215 | - |
|
数据表 |
Vertical, 8 Flat Lead | Signal Line | 4 | - | - | 250mOhm | - | - | - | - | - | - | - | - | - |
|
SC22-05-70JHCMC 7MH 5A 2LN TH |
4,189 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | 7 mH @ 10 kHz | 5A | - | 250V | 250V | - | -40°C ~ 120°C | - | - | - | - | - |
|
ST-202ACMC 1A 2LN 600 OHM TH |
1,464 | - |
|
数据表 |
Vertical, 4 PC Pin | - | 2 | - | 1A | 50mOhm | 50V | - | 600 Ohms @ 100 MHz | -20°C ~ 65°C | - | - | - | - | - |
|
PAC6034.305NLTCMC 950MA 2LN 26K OHM SMD |
1,757 | - |
|
数据表 |
Vertical, 4 Gull Wing | - | 2 | - | 950mA | 369mOhm (Typ) | - | - | 26 kOhms @ 1.4 MHz | -40°C ~ 125°C | - | - | - | - | - |
|
744861250CMC 25MH 250MA 2LN TH |
3,390 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | 25 mH @ 10 kHz | 250mA | 3.6Ohm | - | 400V | - | -40°C ~ 125°C | - | - | - | - | - |
|
ET2835-041CMC 8MH 2.5A 2LN TH ESD |
1,592 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 8 mH @ 10 kHz | 2.5A | 190mOhm | - | 250V | - | -20°C ~ 105°C | - | CSA, IEC, UL | - | - | - |
|
B82791H2302N010CMC 3A 2LN TH |
2,683 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | - | 3A | - | - | 250V | - | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
750311896CMC 10MH 370MA 2LN TH |
2,243 | - |
|
数据表 |
Vertical, 4 PC Pin | - | 2 | 10 mH @ 10 kHz | 370mA | 2.5Ohm | - | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-02-20JCMC 2MH 2A 2LN TH |
2,168 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 2 mH @ 100 kHz | 2A | 110mOhm | 250V | 250V | - | -40°C ~ 120°C | - | - | - | - | - |
|
SC-01-E50GCMC 5MH 1A 2LN TH |
3,111 | - |
|
数据表 |
Vertical, No Base, 4 PC Pin | Power Line | 2 | 5 mH @ 1 kHz | 1A | 150mOhm | 250V | 250V | - | -40°C ~ 120°C | - | - | - | - | - |
|
B82733V2192B001CMC 15MH 1.9A 2LN TH |
4,051 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 15 mH @ 10 kHz | 1.9A | 279mOhm (Typ) | - | 300V | - | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82733V2901B001CMC 68MH 900MA 2LN TH |
1,921 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 68 mH @ 10 kHz | 900mA | 1.1Ohm (Typ) | - | 300V | - | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
DFKF-28-0002CMC 1A 2LN TH |
4,455 | - |
|
数据表 |
Radial - 4 Leads | - | 2 | - | 1A | 360mOhm | - | 440V | - | -25°C ~ 100°C | - | - | - | - | - |
|
FE2X39-4-3NLCMC 500MA 2LN TH |
2,472 | - |
|
数据表 |
Horizontal, 4 PC Pin | - | 2 | - | 500mA | 1.5Ohm | - | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CMS2-6-RCMC 230UH 1.85A 2LN SMD |
3,511 | - |
|
数据表 |
Horizontal, 4 PC Pad | Power Line | 2 | 230 µH @ 100 kHz | 1.85A | 44mOhm (Typ) | - | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
DFKF-28-0004CMC 2A 2LN TH |
3,192 | - |
|
数据表 |
Radial - 4 Leads | - | 2 | - | 2A | 100mOhm | - | 440V | - | -25°C ~ 100°C | - | - | - | - | - |
|

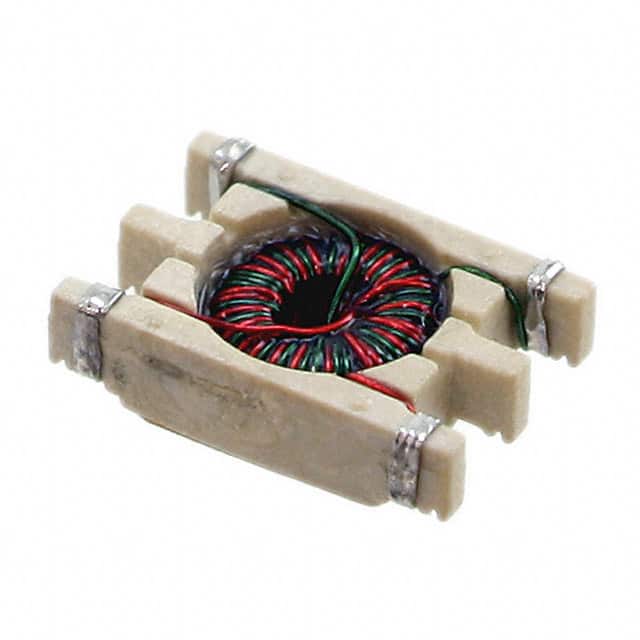

PE-68624NLTCMC 2LN SMD |
2,787 | - |
|
数据表 |
Vertical, 6 Flat Lead | Signal Line | 2 | - | - | 400mOhm | - | - | - | - | - | - | - | - | - |
