共模扼流圈
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 封装/外壳 | 滤波器类型 | 行数 | 电流额定值（最大值） | 直流电阻 (DCR)（最大值） | 电压额定值 - 直流 | 电压额定值 - 交流 | 工作温度 | 阻抗 @ 频率 | 额定值 | 认证机构 | 特性 | 高度（最大值） | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RT8532-12-3M6CMC 3.6MH 12A 3LN TH |
3,964 | - |
|
数据表 |
Vertical, 6 PC Pin | Power Line | 3 | 3.6 mH @ 100 kHz | 12A | 12mOhm (Typ) | - | 600V | - | -40°C ~ 100°C | - | - | - | - | - |
|
RT8132-12-3M6CMC 3.6MH 12A 3LN TH |
2,748 | - |
|
数据表 |
Horizontal, 6 PC Pin | Power Line | 3 | 3.6 mH @ 100 kHz | 12A | 12mOhm (Typ) | - | 600V | - | -40°C ~ 100°C | - | - | - | - | - |
|
744833027110CMC 2.7MH 11A 3LN TH |
2,243 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 3 | 2.7 mH @ 10 kHz | 11A | 18mOhm | - | 500V | - | -40°C ~ 125°C | - | - | - | - | - |
|

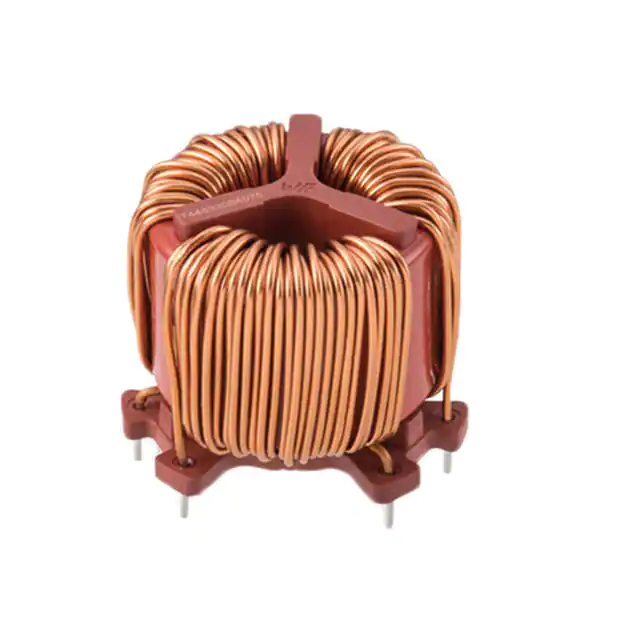

744833120060CMC 12MH 6A 3LN TH |
4,993 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 3 | 12 mH @ 10 kHz | 6A | 65mOhm | - | 500V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-12-100JHCMC 10MH 12A 2LN TH |
3,723 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | 10 mH @ 100 kHz | 12A | - | 250V | 250V | - | -40°C ~ 105°C | - | - | - | - | - |
|
DKIV-1-3253-322P-NKCMC 32A 2LN TH |
2,347 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | - | 32A | 2.6mOhm | 450V | 300/250V | - | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
SCF47B-400-1R8C040JCMC 4MH 40A 2LN TH |
2,633 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 4 mH @ 10 kHz | 40A | 2.1mOhm | 500V | 500V | - | -25°C ~ 120°C | - | - | - | - | - |
|
RD5122-6-9M6CMC 9.6MH 6A 2LN TH |
4,997 | - |
|
数据表 |
Horizontal, 4 PC Pin | Power Line | 2 | 9.6 mH @ 1 kHz | 6A (Typ) | 52.55mOhm (Typ) | 850V | 600V | - | -25°C ~ 110°C | - | - | - | - | - |
|
|
DKIV-1-3253-50D2CMC 50A 2LN TH |
4,088 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | - | 50A | 0.5mOhm | 450V | 300/250V | - | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
DKIH-3242-202M-NKCMC 20A 2LN TH |
4,451 | - |
|
数据表 |
Horizontal, 4 PC Pin | - | 2 | - | 20A | 2.5mOhm | - | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
DKIH-3452-40D7-NKCMC 40A 4LN TH |
4,990 | - |
|
数据表 |
Horizontal, 8 PC Pin | - | 4 | - | 40A | - | 500V | 500V | - | -40°C ~ 100°C | - | - | - | - | - |
|
744835021220CMC 2.1MH 22A 3LN TH |
2,596 | - |
|
数据表 |
Horizontal, 6 PC Pin | Power Line | 3 | 2.1 mH @ 10 kHz | 22A | 9mOhm | - | 760V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744837010290CMC 1MH 29A 3LN TH |
3,997 | - |
|
数据表 |
Horizontal, 6 PC Pin | Power Line | 3 | 1 mH @ 10 kHz | 29A | 5mOhm | - | 760V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744837006400CMC 600UH 40A 3LN TH |
2,844 | - |
|
数据表 |
Horizontal, 6 PC Pin | Power Line | 3 | 600 µH @ 10 kHz | 40A | 3.2mOhm | - | 760V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744839029220CMC 29MH 22A 3LN TH |
2,408 | - |
|
数据表 |
Horizontal, 6 PC Pin | Power Line | 3 | 29 mH @ 10 kHz | 22A | 9mOhm | - | 760V | - | -40°C ~ 125°C | - | - | - | - | - |
|
PHBC24W-2R1B0065VCMC 65UH 30A 2LN TH |
1,011 | - |
|
数据表 |
Vertical, No Base, 2 PC Pin | - | 2 | 65 µH @ 100 kHz | 30A | 6.2mOhm | - | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SRF2012A-201YACMC 300MA 2LN 200OHM SMD AECQ200 |
4,267 | - |
|
数据表 |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 300mA | 400mOhm | 50V | - | 200 Ohms @ 100 MHz | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS20H-R10100CMC 10MH 1A 2LN TH |
1,302 | - |
|
数据表 |
Vertical, 4 PC Pin | Power Line | 2 | 10 mH @ 1 kHz | 1A | 420mOhm | - | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
.jpg)
|
DLW21SN181XQ2LCMC 240MA 2LN 180 OHM SMD |
4,711 | - |
|
数据表 |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 240mA | 390mOhm | 20V | - | 180 Ohms @ 100 MHz | -40°C ~ 85°C | - | - | - | - | - |
|
748020024CMC 0.245NH 300MA 2LN 2 OHM SMD |
1,085 | - |
|
数据表 |
0504 (1210 Metric), 6 PC Pad | - | 2 | 0.245 nH @ 100 MHz | 300mA | 2.5Ohm | 5V | - | 2 Ohms @ 100 MHz | -40°C ~ 85°C | - | - | - | - | - |
