交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP-90KE BF90W / 12V ADAPTER - C6 - BARREL Delta Electronics |
72 | - |
|
数据表 |
Non-PD | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 7.5A | - | 90 W | 150mW | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C6 | Level VI, CoC Tier 2 | 5.43" L x 2.70" W x 1.00" H (138.0mm x 68.5mm x 25.4mm) | 47" (1.20m) | 0°C ~ 40°C | - | CCC, CE, cULus, PSE |
|
|
MEA-090A15C V-AAC/DC DESKTOP ADAPTER 15V 90W Delta Electronics |
16 | - |
|
数据表 |
MEA (90W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 15V | 6A | IP22 | 90 W | - | Cord (Sold Separately) | Positive Center | ITE (Commercial), Medical | IEC 320-C14 | Level VI | 2.44" L x 5.31" W x 1.26" H (62.0mm x 135.0mm x 32.0mm) | 47" (1.20m) | -10°C ~ 60°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CCC, CE, cURus, PSE, UKCA |
|
|
ADP-120XH BD120W / 24V ADAPTER - C6 - BARREL Delta Electronics |
48 | - |
|
数据表 |
Non-PD | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 5A | - | 120 W | 150mW | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C6 | Level VI, CoC Tier 2 | 5.43" L x 2.70" W x 0.96" H (138.0mm x 68.5mm x 24.5mm) | 70.8" (1.80m) | 0°C ~ 40°C | - | CCC, CE, cULus, PSE |
|
|
MEA-090A12C V-AAC/DC DESKTOP ADAPTER 12V 81W Delta Electronics |
10 | - |
|
数据表 |
MEA (90W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 6.75A | IP22 | 81 W | - | Cord (Sold Separately) | Positive Center | ITE (Commercial), Medical | IEC 320-C14 | Level VI | 2.44" L x 5.31" W x 1.26" H (62.0mm x 135.0mm x 32.0mm) | 47" (1.20m) | -10°C ~ 60°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CCC, CE, cURus, PSE, UKCA |
|
|
MEA-090A24C V-AAC/DC DESKTOP ADAPTER 24V 90W Delta Electronics |
7 | - |
|
数据表 |
MEA (90W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 3.75A | IP22 | 90 W | - | Cord (Sold Separately) | Positive Center | ITE (Commercial), Medical | IEC 320-C14 | Level VI | 2.44" L x 5.31" W x 1.26" H (62.0mm x 135.0mm x 32.0mm) | 47" (1.20m) | -10°C ~ 60°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CCC, CE, cURus, PSE, UKCA |
|
|
ADT-120A19AA M-AAC/DC DESKTOP ADAPTER 19V 120W Delta Electronics |
33 | - |
|
数据表 |
ADT (120W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 19.5V | 6.15A | - | 120 W | 150mW | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C6 | Level VI, CoC Tier 2 | 5.43" L x 2.70" W x 0.96" H (137.9mm x 68.6mm x 24.4mm) | 70.8" (1.80m) | -10°C ~ 60°C | Barrel Plug, 1.7mm I.D. x 5.5mm O.D. x 11.0mm | CB, CCC, CE, cULus, PSE, KC, TUV |
|
ADP-25FW BBAC/DC WALL MOUNT ADAPTER 12V 25W Delta Electronics |
83 | - |
|
数据表 |
ADP | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 2.1A | - | 25 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 4.02" L x 1.45" W x 1.93" H (102.0mm x 36.8mm x 49.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.5mm | - |
|

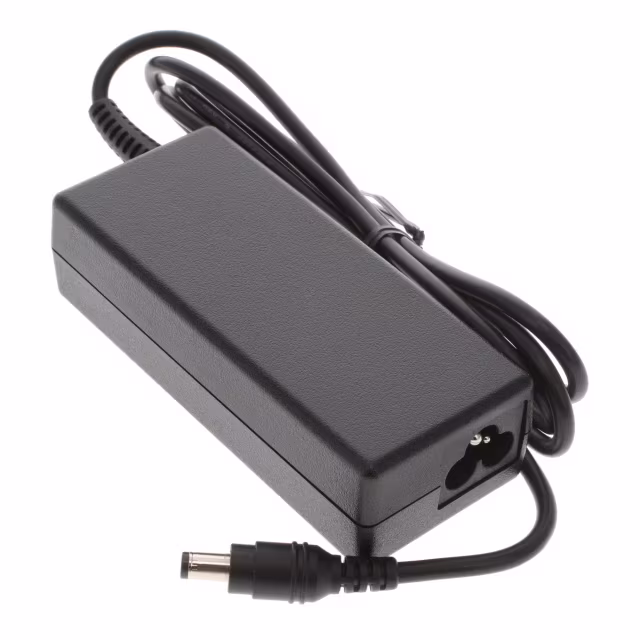

ADT-060A12AA B-AAC/DC DESKTOP ADAPTER 12V 60W Delta Electronics |
0 | - |
|
数据表 |
ADT (60W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 12V | 5A | - | 60 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C6 | Level VI | 4.25" L x 1.81" W x 1.16" H (108.0mm x 46.0mm x 29.5mm) | 47.2" (1.20m) | -10°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | BSMI, CB Scheme, CE, EN, KC, SIQ, UL |
|
|
MEA-065A24C A-AAC/DC DESKTOP ADAPTER 24V 65W Delta Electronics |
0 | - |
|
数据表 |
MEA-65A (65W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 2.71A | - | 65 W | - | Cord (Sold Separately) | Positive Center | ITE (Commercial), Medical | IEC 320-C14 | Level VI | 4.52" L x 1.97" W x 1.14" H (114.8mm x 50.0mm x 29.0mm) | 47" (1.20m) | -10°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | CB, CCC, CE, cURus, PSE, UKCA |
|
|
ADP-240KB BA240W / USB-C ADAPTER - C6 Delta Electronics |
0 | - |
|
数据表 |
ADP | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 5V, 9V, 15V, 20V, 28V, 36V, 48V | 3A, 3A, 3A, 5A, 5A, 5A, 5A | - | 240 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C6 | Level VI, CoC Tier 2 | 6.38" L x 2.83" W x 0.91" H (162.0mm x 72.0mm x 23.0mm) | 70.8" (1.80m) | 0°C ~ 35°C | USB C Power Delivery (PD) | CCC, CE, cULus, PSE |
