交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPS-90AB-3 LAC/DC DESKTOP ADAPTER 12V 90W Delta Electronics |
0 | - |
|
数据表 |
- | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 7.5A | - | 90 W | - | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 5.91" L x 2.36" W x 1.20" H (150.0mm x 60.0mm x 30.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, RCM |
|
DPS-120AB-3 BAC/DC DESKTOP ADAPTER 24V 120W Delta Electronics |
0 | - |
|
数据表 |
- | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 5A | - | 120 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 6.69" L x 3.35" W x 1.57" H (170.0mm x 85.0mm x 40.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Power DIN, 4 Pin | BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, RCM |
|
DPS-150AB-15 CAC/DC DESKTOP ADAPTER 12V 150W Delta Electronics |
0 | - |
|
数据表 |
- | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 12.5A | - | 150 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 6.69" L x 3.35" W x 1.57" H (170.0mm x 85.0mm x 40.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Power DIN, 4 Pin | BSMI, BSI, CB, CCC, CE, cULus, EAC, GS, KC, NOM, PSE, RCM |
|
DPS-180AB-21 DAC/DC DESKTOP ADAPTER 24V 180W Delta Electronics |
0 | - |
|
数据表 |
- | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 7.5A | - | 180 W | - | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 6.69" L x 3.35" W x 1.57" H (170.0mm x 85.0mm x 40.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Power DIN, 4 Pin | CB, CCC, CE, cULus, GS, KC PSE |
|
ADP-65TW AC65W / USB-C ADAPTER - WW PLUGS Delta Electronics |
0 | - |
|
数据表 |
PD | Box | Discontinued at Digi-Key | International | Wall Mount | 90 ~ 264 VAC | 5V, 9V, 15V, 20V | 3A, 3.25A | - | 65 W | 150mW | Multi-Blade (Included) | - | ITE (Commercial) | Multi-Blade (Included) | Level VI, CoC Tier 2 | 1.20" L x 1.20" W x 2.36" H (30.4mm x 30.4mm x 60.0mm) | - | 0°C ~ 35°C | USB C Power Delivery (PD) | CE, cULus, PSE |
|
MDS-005AAS05 BRAC/DC WALL MOUNT ADAPTER 5V 5W Delta Electronics |
3,401 | - |
|
数据表 |
MDS | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1A | - | 5 W | 300mW (Max) | Fixed Blade | - | ITE (Commercial), Medical | NEMA 1-15P | Level VI | 2.22" L x 1.10" W x 1.55" H (56.4mm x 28.0mm x 39.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | CB Scheme, CE, EN, UL |
|
MDS-030AAC12 ABAC/DC WALL MOUNT ADAPTER 12V 24W Delta Electronics |
5,118 | - |
|
数据表 |
MDS | Box | Active | North America | Wall Mount (Class II) | 85 ~ 264 VAC | 12V | 2A | - | 24 W | - | Fixed Blade, Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial), Medical | NEMA 1-15P, Multi-Blade (Sold Separately) | Level VI | 3.46" L x 1.06" W x 2.11" H (88.0mm x 27.5mm x 53.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | CB Scheme, CE, EN, UL |
|

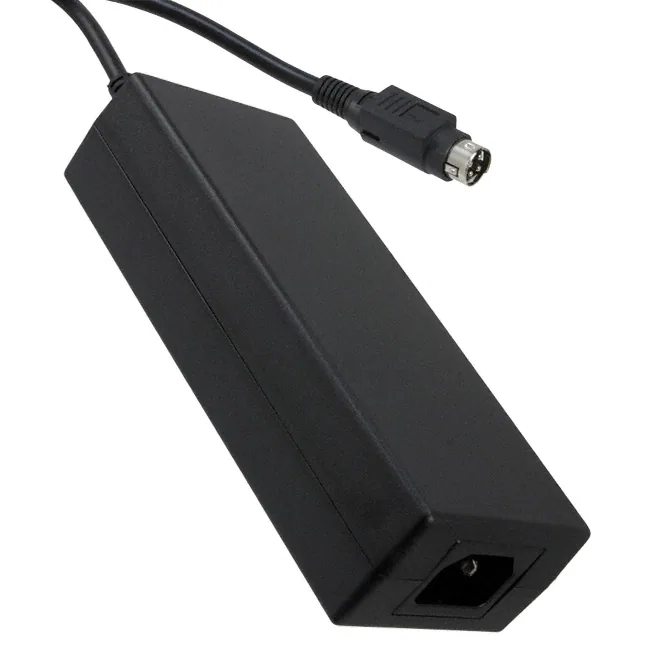

MDS-090AAS15 BAAC/DC DESKTOP ADAPTER 15V 90W Delta Electronics |
932 | - |
|
数据表 |
MDS | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 15V | 6A | - | 90 W | 500mW (Max) | Cord (Sold Separately) | - | ITE (Commercial), Medical | IEC 320-C14 | Level VI | 5.91" L x 2.36" W x 1.38" H (150.0mm x 60.0mm x 35.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Power DIN, 4 Pin | CB Scheme, CE, EN, UL |
|
|
MDS-090AAS24 BAAC/DC DESKTOP ADAPTER 24V 90W Delta Electronics |
904 | - |
|
数据表 |
MDS | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 24V | 3.75A | - | 90 W | 500mW (Max) | Cord (Sold Separately) | - | ITE (Commercial), Medical | IEC 320-C14 | Level V | 5.91" L x 2.36" W x 1.38" H (150.0mm x 60.0mm x 35.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Power DIN, 4 Pin | CB Scheme, CE, EN, UL |
|

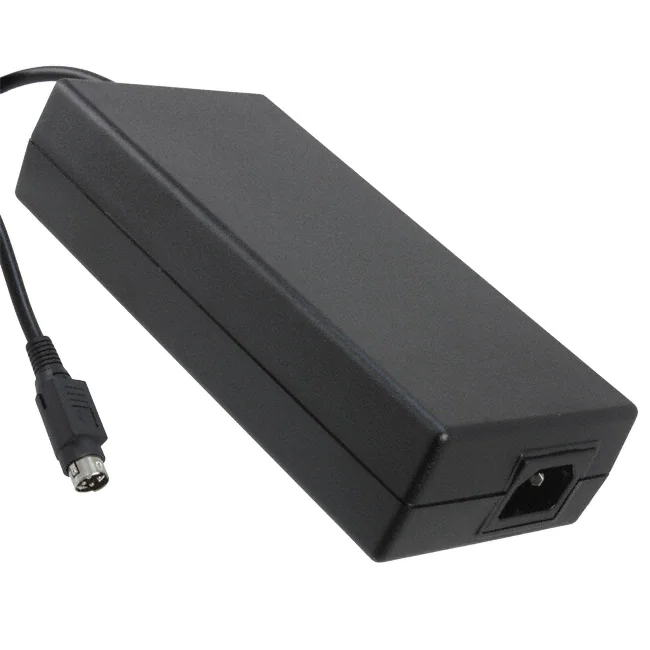

MDS-150AAS24 BAAC/DC DESKTOP ADAPTER 24V 150W Delta Electronics |
2,662 | - |
|
数据表 |
MDS | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 6.25A | - | 150 W | 500mW (Max) | Cord (Sold Separately) | - | ITE (Commercial), Medical | IEC 320-C14 | Level VI | 6.69" L x 3.35" W x 1.57" H (170.0mm x 85.0mm x 40.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Power DIN, 4 Pin | CB Scheme, CE, EN, UL |
