交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FWA120012A-12BAC/DC DESKTOP ADAPTER 12V 120W |
0 | - |
|
数据表 |
FWA120 (120W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 12V | 10A | - | 120 W | 500mW (Max) | Cord | - | ITE (Commercial) | IEC 320-C14 | Level V | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | 48" (1.22m) | 0°C ~ 60°C | DIN, 8 Pin | CB, CE, cTUVus | |
|
FWA120024A-12BAC/DC DESKTOP ADAPTER 24V 120W |
0 | - |
|
数据表 |
FWA120 (120W) | Bulk | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 24V | 5A | - | 120 W | 500mW (Max) | Cord | - | ITE (Commercial) | IEC 320-C14 | Level V | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | 72" (1.83m) | 0°C ~ 60°C | DIN, 8 Pin | CB, CE, cTUVus | |
|
FWA180012A-13BAC/DC DESKTOP ADAPTER 12V 180W |
0 | - |
|
数据表 |
FWA180 (180W) | Box | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 12V | 15A | - | 180 W | 500mW (Max) | Cord | - | ITE (Commercial) | IEC 320-C14 | Level V | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | 72" (1.83m) | 0°C ~ 60°C | Rectangular, 6 Position | CB, CE, cTUVus | |
|
FWA180024A-12BAC/DC DESKTOP ADAPTER 24V 180W |
0 | - |
|
数据表 |
FWA180 (180W) | Box | Obsolete | North America | Desktop (Class I) | 85 ~ 264 VAC | 24V | 7.5A | - | 180 W | 500mW (Max) | Cord | - | ITE (Commercial) | IEC 320-C14 | Level V | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | 72" (1.83m) | 0°C ~ 60°C | DIN, 8 Pin | CB, CE, cTUVus | |
|

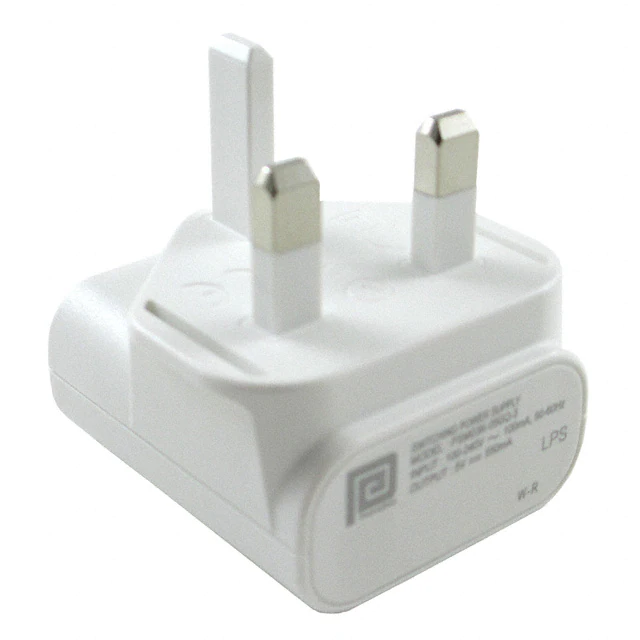

PSM03K-050Q-3W-RAC/DC WALL MOUNT ADAPTER 5V 2.8W |
0 | - |
|
数据表 |
PSM03 (2.75W) | Box | Obsolete | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 550mA | - | 2.8 W | 150mW (Max) | Fixed Blade | - | ITE (Commercial) | BS 1363 | Level VI | 1.93" L x 1.92" W x 0.87" H (49.0mm x 48.8mm x 21.0mm) | - | -10°C ~ 40°C | USB A Receptacle | IEC | |
|

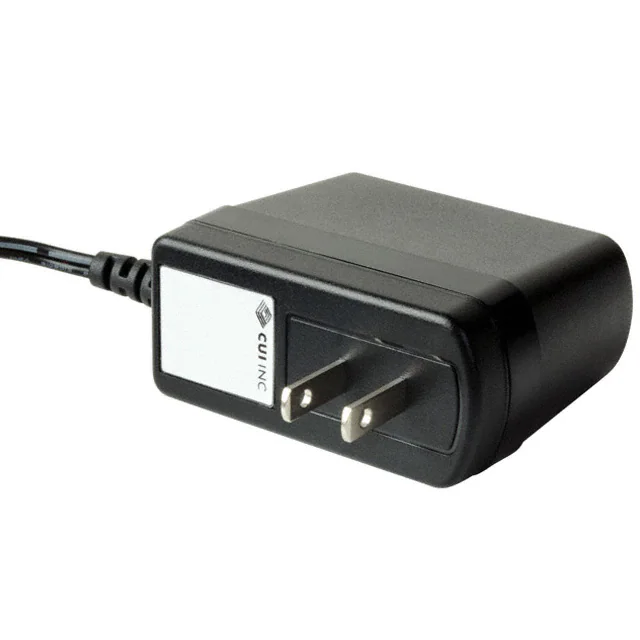

EPSA050120U-P5P-SZAC/DC WALL MOUNT ADAPTER 5V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1.2A | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|
|
EPSA120050U-P5P-SZAC/DC WALL MOUNT ADAPTER 12V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 500mA | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|
|
EPSA033180U-P6P-SZAC/DC WALL MOUNT ADAPTER 3.3V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 3.3V | 1.8A | - | 6 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | cULus, PSE | |
|
|
EPSA050120U-P6P-SZAC/DC WALL MOUNT ADAPTER 5V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1.2A | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|
|
EPSA120050U-P6P-SZAC/DC WALL MOUNT ADAPTER 12V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 500mA | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|
|
EPSA150040U-P6P-SZAC/DC WALL MOUNT ADAPTER 15V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 400mA | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|
|
EPSA240025U-P6P-SZAC/DC WALL MOUNT ADAPTER 24V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 250mA | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|
|
EPSA090067U-P5P-SZAC/DC WALL MOUNT ADAPTER 9V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 670mA | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|
|
EPSA060100U-P6P-SZAC/DC WALL MOUNT ADAPTER 6V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 6V | 1A | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|
|
EPSA240025U-P5P-SZAC/DC WALL MOUNT ADAPTER 24V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 250mA | - | 6 W | - | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, TUVgs | |
|
|
EPSA033180U-P5P-SZAC/DC WALL MOUNT ADAPTER 3.3V 6W |
0 | - |
|
数据表 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 3.3V | 1.8A | - | 6 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus, PSE | |
|
EPSA050100U-I38-EJAC/DC WALL MOUNT ADAPTER 5V 5W |
0 | - |
|
数据表 |
EPSA-USB (5W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1A | - | 5 W | - | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level V | 0.81" L x 1.18" W x 1.61" H (20.5mm x 30.0mm x 41.0mm) | - | 0°C ~ 40°C | USB A Receptacle | cULus, PSE | |
|
UAC-1BAC/DC WALL MOUNT ADAPTER 5V 5W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 5V | 1A | - | 5 W | - | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | - | - | - | - | USB A Receptacle | cULus | |
|
DA18-120AU-MAC/DC WALL MOUNT ADAPTER 12V 18W |
0 | - |
|
数据表 |
DA18-M (18W) | Bulk | Obsolete | Australia | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1.5A | - | 18 W | - | Fixed Blade | Positive Center | ITE (Commercial), Medical | AS 3112 | Level V | 2.36" L x 1.10" W x 2.14" H (60.0mm x 28.0mm x 54.3mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE | |
|
|
DA18-120EU-MAC/DC WALL MOUNT ADAPTER 12V 18W |
0 | - |
|
数据表 |
DA18-M (18W) | Bulk | Obsolete | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1.5A | - | 18 W | - | Fixed Blade | Positive Center | ITE (Commercial), Medical | CEE 7/16 | Level V | 2.36" L x 1.10" W x 1.99" H (60.0mm x 28.0mm x 50.6mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE |
