交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSAC60M-560-R-CNR5AC/DC DESKTOP ADAPTER 56V 60W |
0 | - |
|
数据表 |
PSAC60M (60W) | Bulk | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 56V | 1.08A | - | 60 W | 500mW (Max) | Cord (Sold Separately) | Negative Center | ITE (Commercial) | IEC 320-C6 | Level VI | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 0.7mm I.D. x 2.5mm O.D. x 10.0mm | cULus, IEC | |
|
|
PSAC60M-560-R-CR1AC/DC DESKTOP ADAPTER 56V 60W |
0 | - |
|
数据表 |
PSAC60M (60W) | Bulk | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 56V | 1.08A | - | 60 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C6 | Level VI | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | cULus, IEC | |
|
|
PSAC60M-560-R-CR2AC/DC DESKTOP ADAPTER 56V 60W |
0 | - |
|
数据表 |
PSAC60M (60W) | Bulk | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 56V | 1.08A | - | 60 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C6 | Level VI | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | cULus, IEC | |
|
|
PSAC60M-560-R-CR3AC/DC DESKTOP ADAPTER 56V 60W |
0 | - |
|
数据表 |
PSAC60M (60W) | Bulk | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 56V | 1.08A | - | 60 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C6 | Level VI | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 1.7mm I.D. x 4.0mm O.D. x 10.0mm | cULus, IEC | |
|
|
PSAC60M-560-R-CR4AC/DC DESKTOP ADAPTER 56V 60W |
0 | - |
|
数据表 |
PSAC60M (60W) | Bulk | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 56V | 1.08A | - | 60 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C6 | Level VI | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 1.35mm I.D. x 3.5mm O.D. x 10.0mm | cULus, IEC | |
|
|
PSAC60M-560-R-CR5AC/DC DESKTOP ADAPTER 56V 60W |
0 | - |
|
数据表 |
PSAC60M (60W) | Bulk | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 56V | 1.08A | - | 60 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C6 | Level VI | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug R/A, 0.7mm I.D. x 2.5mm O.D. x 10.0mm | cULus, IEC | |
|
ETMA135667UC-P51-WPAC/DC DESKTOP ADAPTER 13.5V 90W |
0 | - |
|
数据表 |
ETMA-U (110W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 13.5V | 6.67A | - | 90 W | 300mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm) | 41.34" (1.05m) | 0°C ~ 40°C | Power DIN, 4 Pin | TUV, UL | |
|
|
ETMA190580UC-P51-WPAC/DC DESKTOP ADAPTER 19V 110W |
0 | - |
|
数据表 |
ETMA-U (110W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 19V | 5.8A | - | 110 W | 300mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm) | 41.34" (1.05m) | 0°C ~ 40°C | Power DIN, 4 Pin | TUV, UL | |
|
|
ETMA200550UC-P51-WPAC/DC DESKTOP ADAPTER 20V 110W |
0 | - |
|
数据表 |
ETMA-U (110W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 20V | 5.5A | - | 110 W | 300mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm) | 41.34" (1.05m) | 0°C ~ 40°C | Power DIN, 4 Pin | TUV, UL | |
|
ETMA1601250UC-P51-WPAC/DC DESKTOP ADAPTER 16V 200W |
0 | - |
|
数据表 |
ETMA-U (200W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 16V | 12.5A | - | 200 W | 500mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 7.42" L x 4.11" W x 2.36" H (188.5mm x 104.5mm x 60.0mm) | 39.4" (1.00m) | 0°C ~ 50°C | Power DIN, 4 Pin | TUV, UL | |
|
|
ETMA1901053UC-P51-WPAC/DC DESKTOP ADAPTER 19V 200W |
0 | - |
|
数据表 |
ETMA-U (200W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 19V | 10.53A | - | 200 W | 500mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 7.42" L x 4.11" W x 2.36" H (188.5mm x 104.5mm x 60.0mm) | 39.4" (1.00m) | 0°C ~ 50°C | Power DIN, 4 Pin | TUV, UL | |
|
|
ETMA2001000UC-P51-WPAC/DC DESKTOP ADAPTER 20V 200W |
0 | - |
|
数据表 |
ETMA-U (200W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 20V | 10A | - | 200 W | 500mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 7.42" L x 4.11" W x 2.36" H (188.5mm x 104.5mm x 60.0mm) | 39.4" (1.00m) | 0°C ~ 50°C | Power DIN, 4 Pin | TUV, UL | |
|

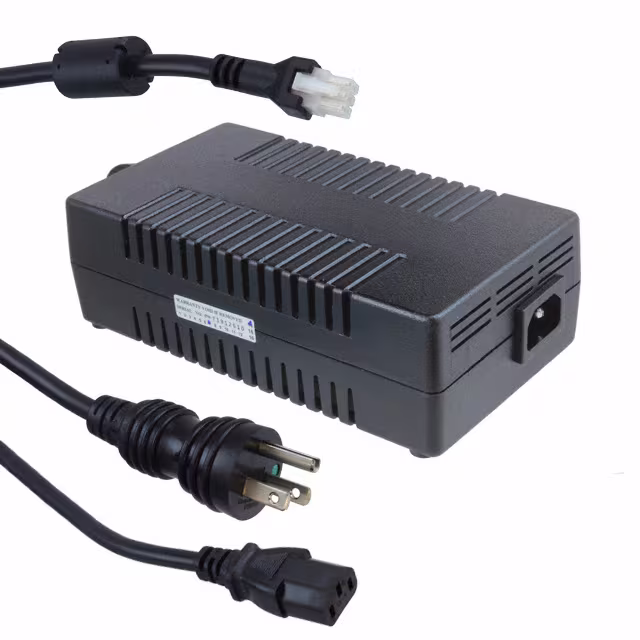

ETMA1202083UC-P68-WPAC/DC DESKTOP ADAPTER 12V 250W |
0 | - |
|
数据表 |
ETMA (250W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 12V | 20.83A | - | 250 W | 500mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 7.42" L x 4.11" W x 2.36" H (188.5mm x 104.5mm x 60.0mm) | 31.5" (0.8m) | 0°C ~ 50°C | Rectangular, 6 Position | TUV, UL | |
|
|
ETMA2401042UC-P68-WPAC/DC DESKTOP ADAPTER 24V 250W |
0 | - |
|
数据表 |
ETMA (250W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 24V | 10.42A | - | 250 W | 500mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 7.42" L x 4.11" W x 2.36" H (188.5mm x 104.5mm x 60.0mm) | 31.5" (0.8m) | 0°C ~ 50°C | Rectangular, 6 Position | TUV, UL | |
|
|
ETMA360694UC-P68-WPAC/DC DESKTOP ADAPTER 36V 250W |
0 | - |
|
数据表 |
ETMA (250W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 36V | 6.94A | - | 250 W | 500mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 7.42" L x 4.11" W x 2.36" H (188.5mm x 104.5mm x 60.0mm) | 31.5" (0.8m) | 0°C ~ 50°C | Rectangular, 6 Position | TUV, UL | |
|
|
ETMA480521UC-P68-WPAC/DC DESKTOP ADAPTER 48V 250W |
0 | - |
|
数据表 |
ETMA (250W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 48V | 5.21A | - | 250 W | 500mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 7.42" L x 4.11" W x 2.36" H (188.5mm x 104.5mm x 60.0mm) | 31.5" (0.8m) | 0°C ~ 50°C | Rectangular, 6 Position | TUV, UL | |
|
|
ETMA120750UC-P51-WPAC/DC DESKTOP ADAPTER 12V 90W |
0 | - |
|
数据表 |
ETMA-U (110W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 12V | 7.5A | - | 90 W | 300mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm) | 41.34" (1.05m) | 0°C ~ 40°C | Power DIN, 4 Pin | TUV, UL | |
|
|
ETMA150667UC-P51-WPAC/DC DESKTOP ADAPTER 15V 100W |
0 | - |
|
数据表 |
ETMA-U (110W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 15V | 6.67A | - | 100 W | 300mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm) | 41.34" (1.05m) | 0°C ~ 40°C | Power DIN, 4 Pin | TUV, UL | |
|
|
ETMA240460UC-P51-WPAC/DC DESKTOP ADAPTER 24V 110W |
0 | - |
|
数据表 |
ETMA-U (110W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 24V | 4.6A | - | 110 W | 300mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm) | 41.34" (1.05m) | 0°C ~ 40°C | Power DIN, 4 Pin | TUV, UL | |
|
|
ETMA480416UC-P51-WPAC/DC DESKTOP ADAPTER 48V 200W |
0 | - |
|
数据表 |
ETMA-U (200W) | Box | Obsolete | North America | Desktop (Class I) | 90 ~ 264 VAC | 48V | 4.16A | - | 200 W | 500mW (Max) | Cord | - | Medical | IEC 320-C14 | Level V | 7.42" L x 4.11" W x 2.36" H (188.5mm x 104.5mm x 60.0mm) | 39.4" (1.00m) | 0°C ~ 50°C | Power DIN, 4 Pin | TUV, UL |
