交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R200DM-190-C14AC/DC DESKTOP ADAPTER 19V 200W Tri-Mag, LLC |
15 | - |
|
数据表 |
Tri-Mag®, L6R200DM (200W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 19V | 10.5A | - | 200 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C14 | Level VI | 8.03" L x 3.19" W x 1.67" H (204.0mm x 81.0mm x 42.4mm) | 59" (1.50m) | 0°C ~ 40°C | Power DIN, 4 Pin | CE, cULus, EN, FCC, TUV |
|
L6R200DM-120-C14AC/DC DESKTOP ADAPTER 12V 192W Tri-Mag, LLC |
6 | - |
|
数据表 |
Tri-Mag®, L6R200DM (200W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 16A | - | 192 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C14 | Level VI | 8.03" L x 3.19" W x 1.67" H (204.0mm x 81.0mm x 42.4mm) | 47.2" (1.20m) | 0°C ~ 40°C | Power DIN, 4 Pin | CE, cULus, EN, FCC, TUV |
|
L6R200DM-240-C14AC/DC DESKTOP ADAPTER 24V 199W Tri-Mag, LLC |
6 | - |
|
数据表 |
Tri-Mag®, L6R200DM (200W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 8.3A | - | 200 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C14 | Level VI | 8.03" L x 3.19" W x 1.67" H (204.0mm x 81.0mm x 42.4mm) | 59" (1.50m) | 0°C ~ 40°C | Power DIN, 4 Pin | CE, cULus, EN, FCC, TUV |
|

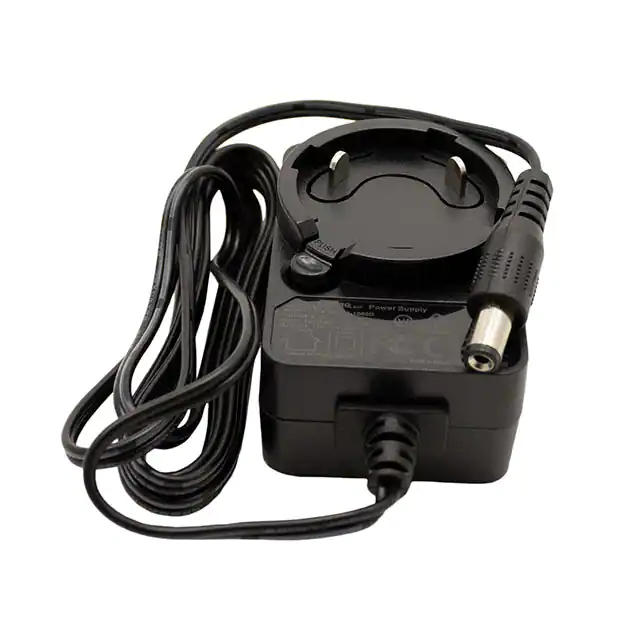

ICM12-120AC/DC WALL MOUNT ADAPTER 12V 12W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag®, ICM12 (12W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | 100mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | NEMA 1-15P, Multi-Blade (Sold Separately) | Level VI | 2.32" L x 1.61" W x 1.24" H (59.0mm x 40.9mm x 31.5mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL |
|
ICM60-090AC/DC WALL MOUNT ADAPTER 9V 54W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag®, ICM60 (60W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 6A | - | 54 W | 100mW (Max) | Fixed Blade, Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | NEMA 1-15P, Multi-Blade (Sold Separately) | Level VI | 4.62" L x 2.14" W x 1.40" H (117.3mm x 54.4mm x 35.6mm) | 39.4" (1.00m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL |
|
L6R120DM-480-C14AC/DC DESKTOP ADAPTER 48V 120W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 48V | 2.5A | - | 120 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C14 | Level VI | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, EN, FCC, TUV |
|
L6R09H-240AC/DC WALL MNT ADAPTER 24V 9.1W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag®, L6R09H (9W) | Box | Discontinued at Digi-Key | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 380mA | - | 9.1 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.24" L x 1.02" W x 1.77" H (56.9mm x 25.9mm x 45.0mm) | 59" (1.50m) | 10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL |
|
L6R30D-090-C8AC/DC DESKTOP ADAPTER 9V 30W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag®, L6R30D (30W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 9V | 3.3A | - | 30 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI | 3.62" L x 1.79" W x 1.08" H (91.9mm x 45.4mm x 27.5mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL |
|
|
L6R30D-180-C8AC/DC DESKTOP ADAPTER 18V 30W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag®, L6R30D (30W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 18V | 1.67A | - | 30 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI | 3.62" L x 1.79" W x 1.08" H (91.9mm x 45.4mm x 27.5mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL |
|
|
L6R30D-300-C8AC/DC DESKTOP ADAPTER 30V 30W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag®, L6R30D (30W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 30V | 1A | - | 30 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI | 3.62" L x 1.79" W x 1.08" H (91.9mm x 45.4mm x 27.5mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL |
