交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R65DM-190-C8AC/DC DESKTOP ADAPTER 19V 65W Tri-Mag, LLC |
8 | - |
|
数据表 |
Tri-Mag®, L6R65DM (65W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 19V | 3.43A | - | 65 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C8 | Level VI | 4.69" L x 2.36" W x 1.42" H (119.1mm x 59.9mm x 36.1mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, EN, FCC, TUV |
|

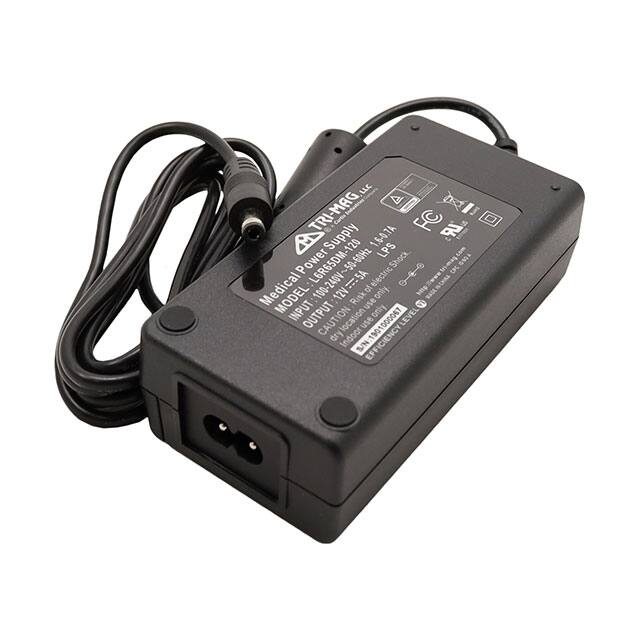

L6R65DM-120-C8AC/DC DESKTOP ADAPTER 12V 60W Tri-Mag, LLC |
19 | - |
|
数据表 |
Tri-Mag®, L6R65DM (65W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 5A | - | 60 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C8 | Level VI | 4.69" L x 2.36" W x 1.42" H (119.1mm x 59.9mm x 36.1mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, EN, FCC, TUV |
|
L6R90DM-190-C8AC/DC DESKTOP ADAPTER 19V 90W Tri-Mag, LLC |
37 | - |
|
数据表 |
Tri-Mag®, L6R90DM (90W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 19V | 4.74A | - | 90 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C8 | Level VI | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, EN, FCC, TUV |
|
L6R90DM-120-C8AC/DC DESKTOP ADAPTER 12V 84W Tri-Mag, LLC |
32 | - |
|
数据表 |
Tri-Mag®, L6R90DM (90W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 7A | - | 84 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C8 | Level VI | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, EN, FCC, TUV |
|
L6R90DM-480-C8AC/DC DESKTOP ADAPTER 48V 90W Tri-Mag, LLC |
35 | - |
|
数据表 |
Tri-Mag®, L6R90DM (90W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 48V | 1.88A | - | 90 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C8 | Level VI | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, EN, FCC, TUV |
|
DT060AF-6AC/DC DESKTOP ADAPTER 24V 60W Tri-Mag, LLC |
56 | - |
|
数据表 |
DT060AF (60W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 24V | 2.5A | - | 60 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial), Medical | IEC 320-C8 | Level VI, CoC Tier 2 | 5.31" L x 2.56" W x 1.57" H (135.0mm x 65.0mm x 40.0mm) | - | -20°C ~ 60°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. | - |
|
L6R120DM-200-C8AC/DC DESKTOP ADAPTER 20V 120W Tri-Mag, LLC |
24 | - |
|
数据表 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 20V | 6A | - | 120 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C8 | Level VI | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, EN, FCC, TUV |
|
L6R120DM-120-C8AC/DC DESKTOP ADAPTER 12V 108W Tri-Mag, LLC |
23 | - |
|
数据表 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 9A | - | 108 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C8 | Level VI | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | 39.4" (1.00m) | 0°C ~ 40°C | Power DIN, 4 Pin | CE, cULus, EN, FCC, TUV |
|
L6R120DM-150-C8AC/DC DESKTOP ADAPTER 15V 120W Tri-Mag, LLC |
20 | - |
|
数据表 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 8A | - | 120 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C8 | Level VI | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | 59" (1.50m) | 0°C ~ 40°C | Power DIN, 4 Pin | CE, cULus, EN, FCC, TUV |
|
L6R120DM-480-C8AC/DC DESKTOP ADAPTER 48V 120W Tri-Mag, LLC |
18 | - |
|
数据表 |
Tri-Mag®, L6R120DM (120W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 48V | 2.5A | - | 120 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C8 | Level VI | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, EN, FCC, TUV |
